Assembly – Fisher-Price K9125 User Manual
Page 5
5
6
4
5
Backboard
Labels
Peg
Groove
Wall
Rim
Upper Post
Assembly
Assembly

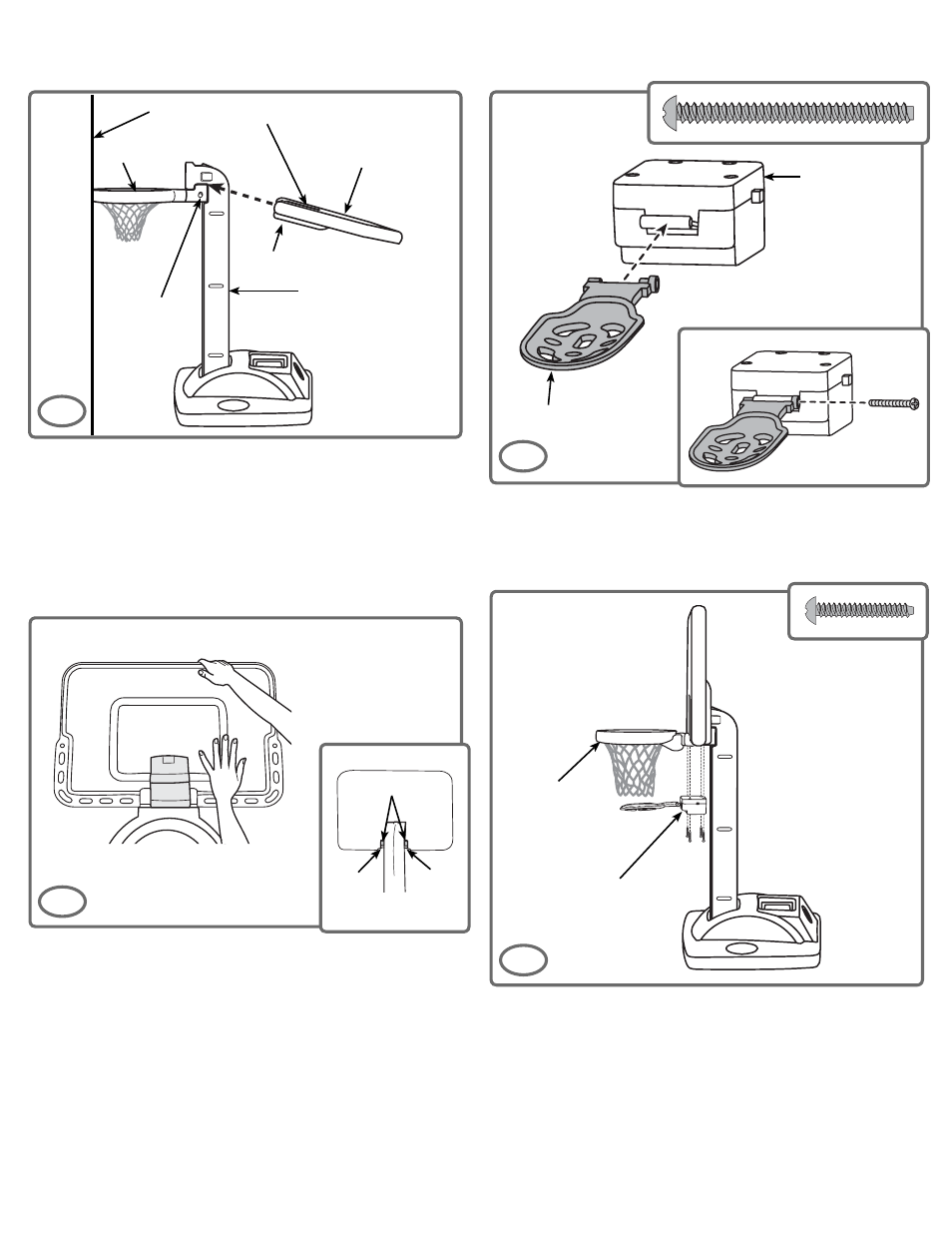

• Lean the rim against a wall for support.
• Locate the pegs on each side of the rim and the grooves on the backboard.
• Position the backboard with the label side facing up.
• Place your foot on the base to hold it steady and slide the backboard onto
the upper post at an angle, as far as it will go.
Note: There should be no gap between the upper post and the backboard.
• Move the assembly away from the wall.
5
PULL HERE
PRESS HERE
Top View
• Move to the side of the assembly.
• Place your foot on the base to hold it steady.
• Press down firmly on the lower backboard while rotating the backboard up.
• When properly assembled, the pegs on the upper post rest in the grooves
in the backboard, as shown.
Note: The height of the rim is three feet (1 m) as assembled.
Paddle
Soundbox
• Fit the paddle onto the pegs on the soundbox, as shown.
• Insert the #8 x 2
1
/
4
screw through the paddle and into the soundbox
and tighten.
6
Back View
Peg
Peg
Grooves
7
• Fit the soundbox to the underside of the rim and hold it in place.
• Insert four #6 x
3
/
4
"
screws into the soundbox and tighten to secure it
to the rim.
6
4
5
Rim
8
Soundbox
