Your Echelon outdoor gas grill comes with a digital
thermometer with built-in timer.
The thermometer
is located on the
control panel
between the
control knobs.
Plug in meat probe
as shown in Fig.
21-6.

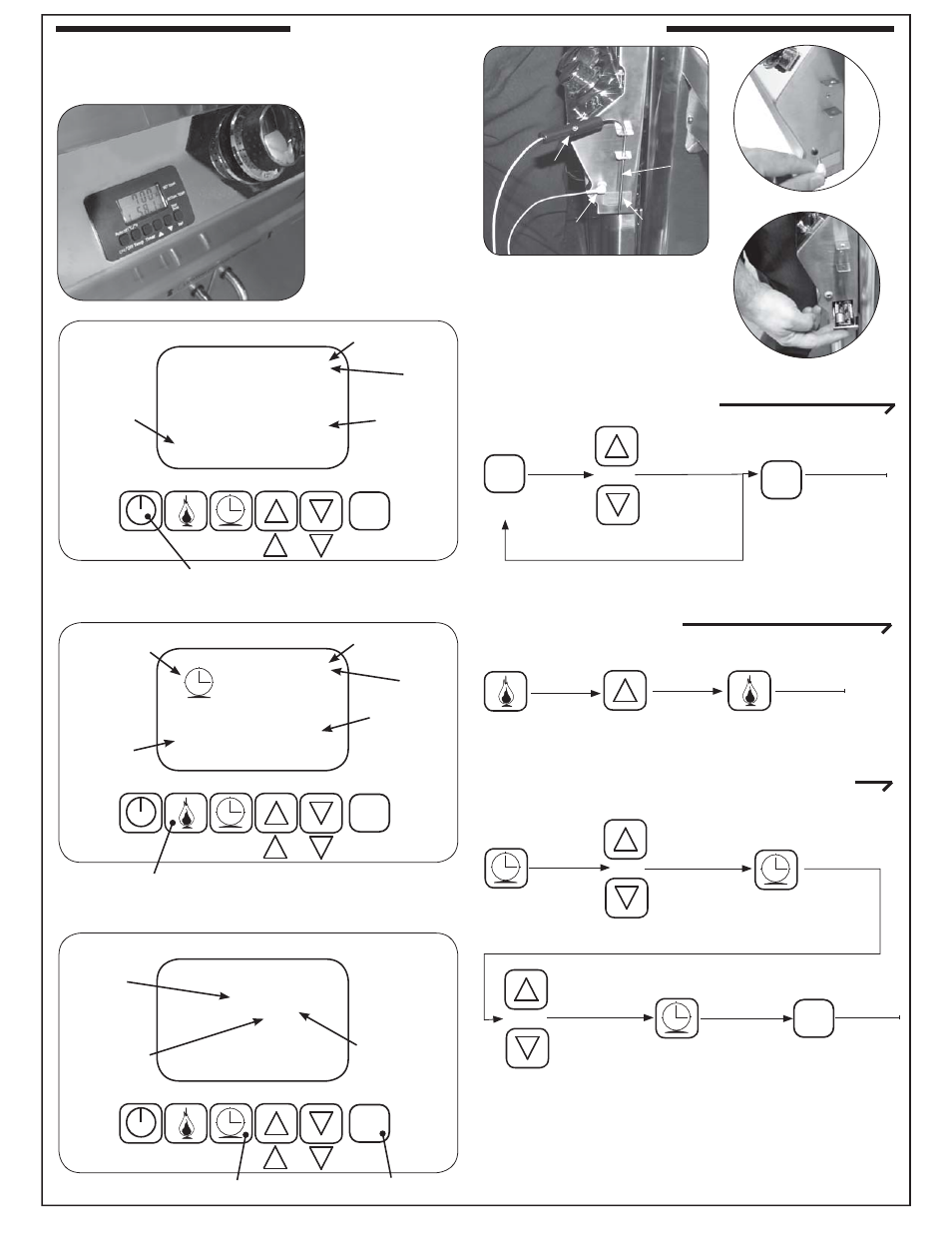

ECHELON DIGITAL THERMOMETER
Fig. 21-1
Fig. 21-5
Meat probe
handle
Meat
probe
Battery tray
door
Meat probe
plug
Thermometer 2 ‘AA’
battery access (Fig
21-7).
Fig. 21-6
Fig. 21-7
For best performance and
temperature readings center
zone separators properly
between each burner (see
parts list).
