Fisher-Price BARBIE H4433 - Manual (Page 14)

14
H4433pr-0921
24

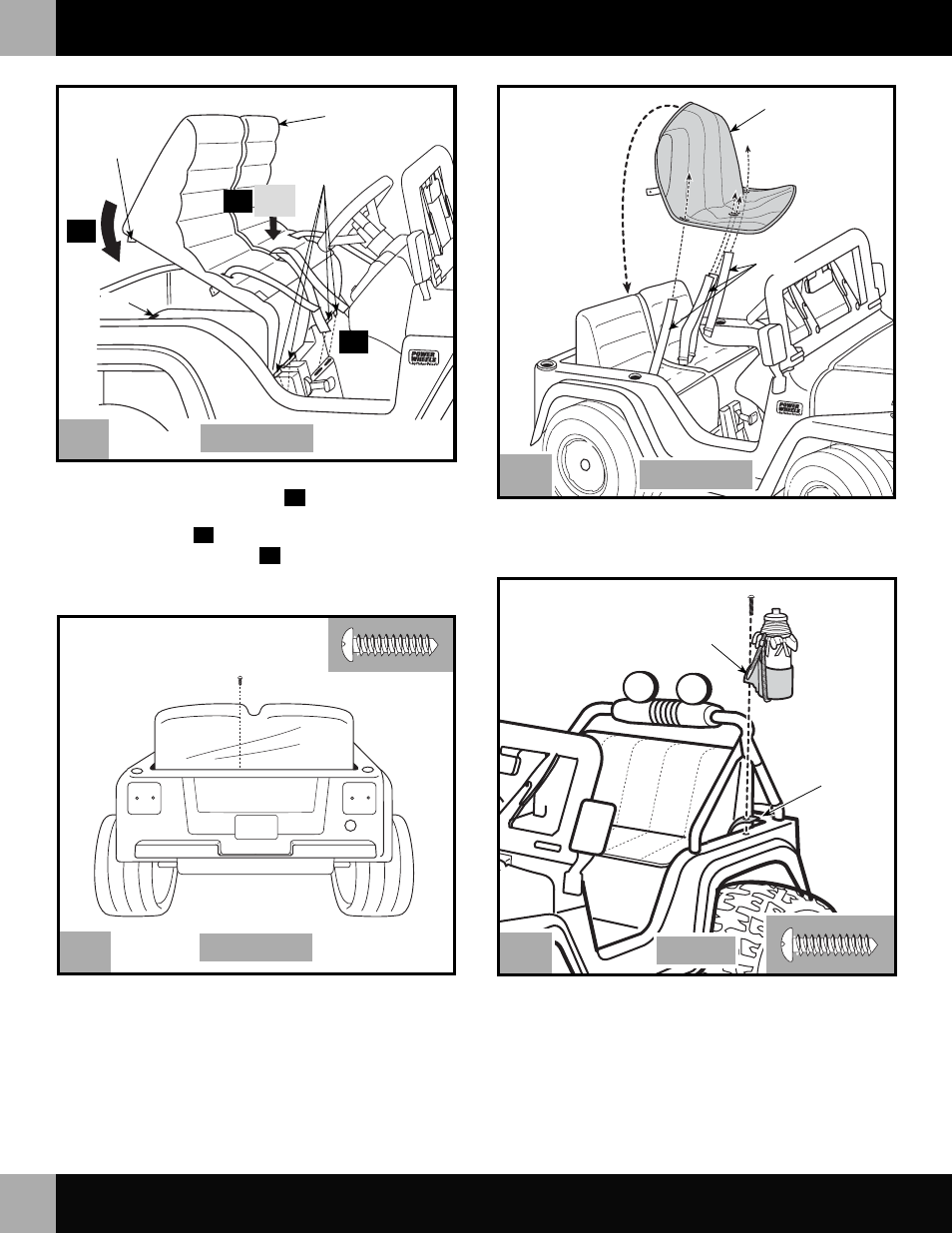

ASSEMBLY F
23
• Insert a #10 x 3 /
4
" screw into the rear edge of the seat. Tighten
the screw.
• With the seat at an angle, insert the tabs on the front edge of the
seat into the slots in the foot-well wall A .
• Push down firmly on the edge of the seat above each tab to snap
the tabs into the slots B .
• Rotate the back of the seat down C to snap the seat back tabs
into the slots in the vehicle. Push down firmly on the seat back.
Seat
Seat Back
Tabs
Slot
Tabs
A
B
C
Side View
PUSH
HERE
• Fit the seat belts through the slots in the seat cover.
• Fit the back edge of the seat cover over the back of the seat.
Seat Cover
Seat
Belts
Back View
Side View
22
• Place the tab on the side of the seat cover over the hole on the top
edge of the vehicle.
• Fit a water bottle with drink holder on top of the tab and the top edge
of the vehicle.
• Insert a #10 x 3 /
4
" screw through the drink holder and into the vehicle.
Tighten the screw.
• Repeat this procedure to assemble the other water bottle with drink
holder to the other side of the vehicle.
Note: The water bottles are top rack dishwasher safe.
25
Water Bottle with
Drink Holder
Side View
Tab
