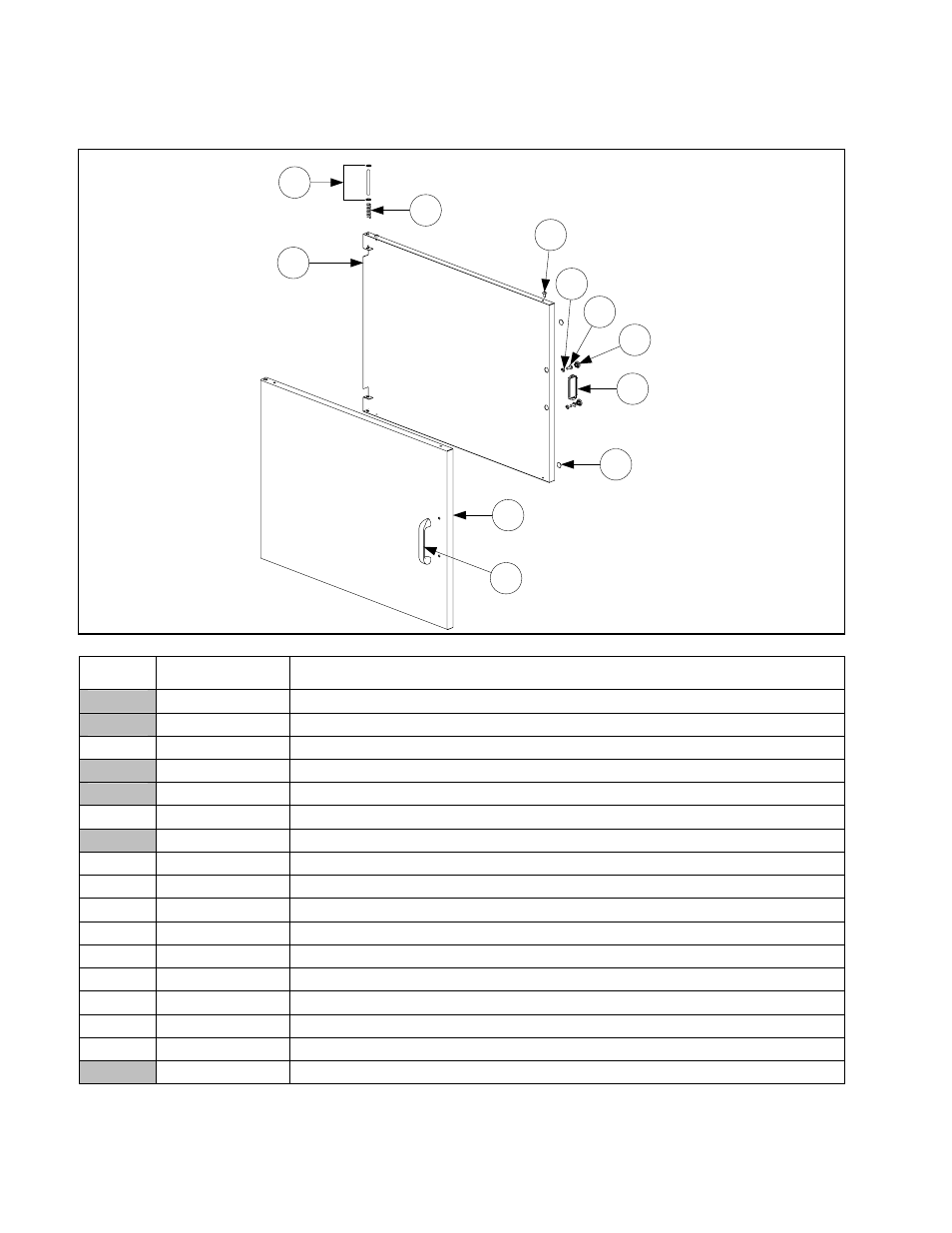

2.2.3 Door Assembly and Component Parts
1
2
3
4
5
6
8
9
10
7
11
Item Part Number Description
106-2788 Door Assembly 1824
106-2784 Door Assembly 2424
1 106-4067SP Pin Assembly, Door
806-4487SP Pin, Hinge Cover & Door
810-0658 Retaining Ring (Unplated)
2 200-4588 Liner, Inner Door 1824
200-4577 Liner, Inner Door 2424
3 809-0191 Washer, ¼” Lock Spring ZP
4 809-0266 Screw, #10-½” Phil TR Head ZP
5 809-0918 Screw, #10-24 X ½”
6 810-0179 Button Plug ½”
7 810-0180 Handle, Door
8 826-1343 Spring, Door Hinge Lock
9 810-1105 Magnet, (Offset) Door
10 816-0529 Bumper, Rubber Self Adhesive
11 824-1150 Panel, W/A Outer Door 1824
824-1149 Panel, W/A Outer Door 2424
