10 EN

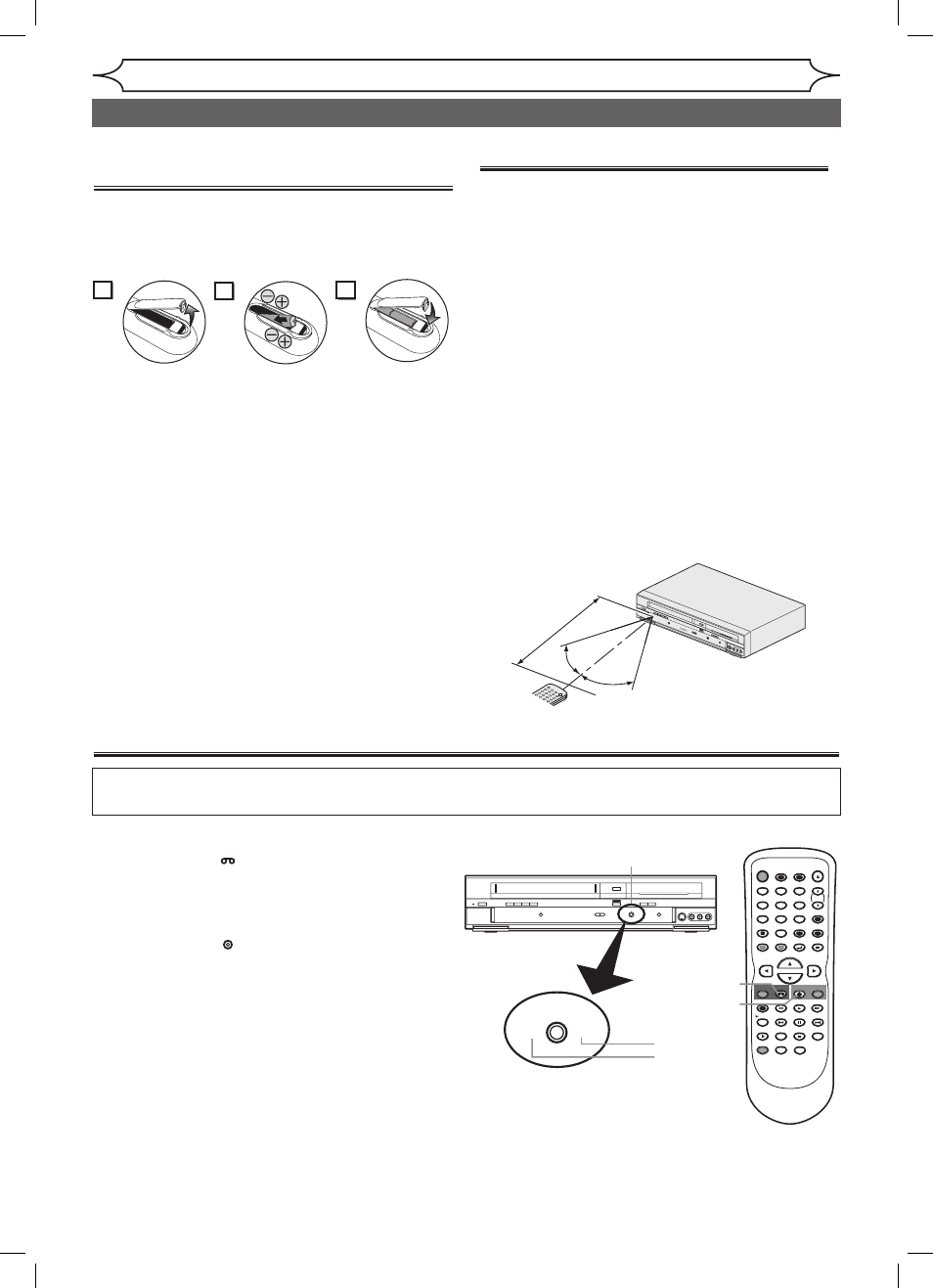

Functional overview (cont’d)
Before you start
Using a remote control
Keep in mind the following when using the remote
control:
• Make sure that there is no obstacle between the
remote control and the remote sensor of the unit.
• Remote operation may become unreliable if
strong sunlight or fluorescent light is on the
remote sensor of the unit.
• Remote control for different devices can interfere
with each other. Avoid using remote control for
other equipment located close to the unit.
• Replace the batteries when you notice a fall-off of
the operating range of the remote control.
• The maximum operable ranges from the unit are
as follows.
- Line of sight: approx. 3 feet (7m)
- Either side of the center:
approx. 16 feet (5m) within 30°
-
Above: approx. 16 feet (5m) within 15°
- Below: approx. 10 feet (3m) within 30°
Installing batteries in the remote
control
Install two “AA” size batteries (supplied), matching
their polarity to those indicated inside battery
compartment of the remote control.
2
1
3
Note:
Incorrect use of batteries can result in hazards such
as leakage and bursting. Please follow the instruction
below:
• Do not mix new and old batteries together.
• Do not use different kinds of batteries together.
Although they may look similar, different batteries
may have different voltages.
• Make sure that the plus and minus ends of
each battery match the indications in the battery
compartment.
• Remove batteries from equipment that is not going
to be used for a month or more.
• When disposing used batteries, please comply
with governmental regulations or public rules for
environmental protection that apply in your country
or area.
• Do not recharge, short-circuit, heat, burn or
disassemble batteries.
2
1
3
2
1
3
Because this product is a combination of a VCR and a DVD recorder, you must select first which component
you wish to operate with
[OUTPUT SELECT].
DUBBING
OPEN/CLOSE
POWER REW F.FWD PLAY
VCR VCR
OUTPUT SELECT
DVD
STOP PLAY
L CHANNEL K
RECORD
STOP/EJECT
DVD VIDEO
RECORD
B s
A
B B C C A D E
S-VIDEO L-AUDIO-R
VCR
OUTPUT SELECT
DVD B s STOP
POWER
T-SET TIMER PROG.
SKIP SKIP
OPEN/CLOSE
SPACE
1 2 3
4 5 6
7 8
0
9
CH
VIDEO/TV
SLOW
PAUSE
.@/: ABC DEF
GHI JKL MNO
PQRS
REC/OTR
DISPLAY
TUV WXYZ
DVD REC/OTR
REC SPEED
ZOOM
SEARCH
VCR
SETUP
CM SKIP
RETURN MENU/LIST TOP MENU
DUBBING
x1.3/0.8
CLEAR
ENTER
PLAY
AUDIO
OUTPUT SELECT button
DVD indicator
VCR indicator
DVD button
VCR button
Press [VCR ] on the remote control.
(Verify that the VCR indicator is lit.)
Press [DVD ] on the remote control.
(Verify that the DVD indicator is lit.)
The VCR / DVD recorder switching
Note:
• Pressing only
[OUTPUT SELECT] on the front
panel DOES NOT switch the mode of the remote
control. You MUST select the correct mode on
the remote control.
• You cannot switch to another mode (DVD or
VCR) during in the timer-standby mode.
• Pressing [REC/OTR] (DVD) or [REC/OTR] (VCR)
on the remote control switches immediately its
respective mode so that you can start recording
directly on the appropriate media.
DUBB ING
OPEN /CLO SE
POW ER
REW F.FW D PLAY
VCR
VCR OUTP UT SE LECT DVD
STOP PLAY
REPEAT TRK. DVD L CH ANNE L K
RECO RD
STOP /EJEC T
VCR RECO RD
DVD
VIDEO RECO RD
B
B s
A
B
B C
C A D E
S-VID EO L-AU DIO-R
SKIP
REC PAUSE
P
ENTER MEN U PLAY LIST
TOP MEN U/ ORIG INAL
k
K FW D g STO P C PLA Y B REV h H G
Remote
control
Within about
23feet (7m)
30°
30°
VCR MODE
DVD MODE
