12
grill
exhaust
76 mm (to non-combustible
construction / minimum
hood clearance)
min. 310 mm (to combustible
construction)
254 mm
559 mm
648 mm
38 mm 51 mm
349 mm

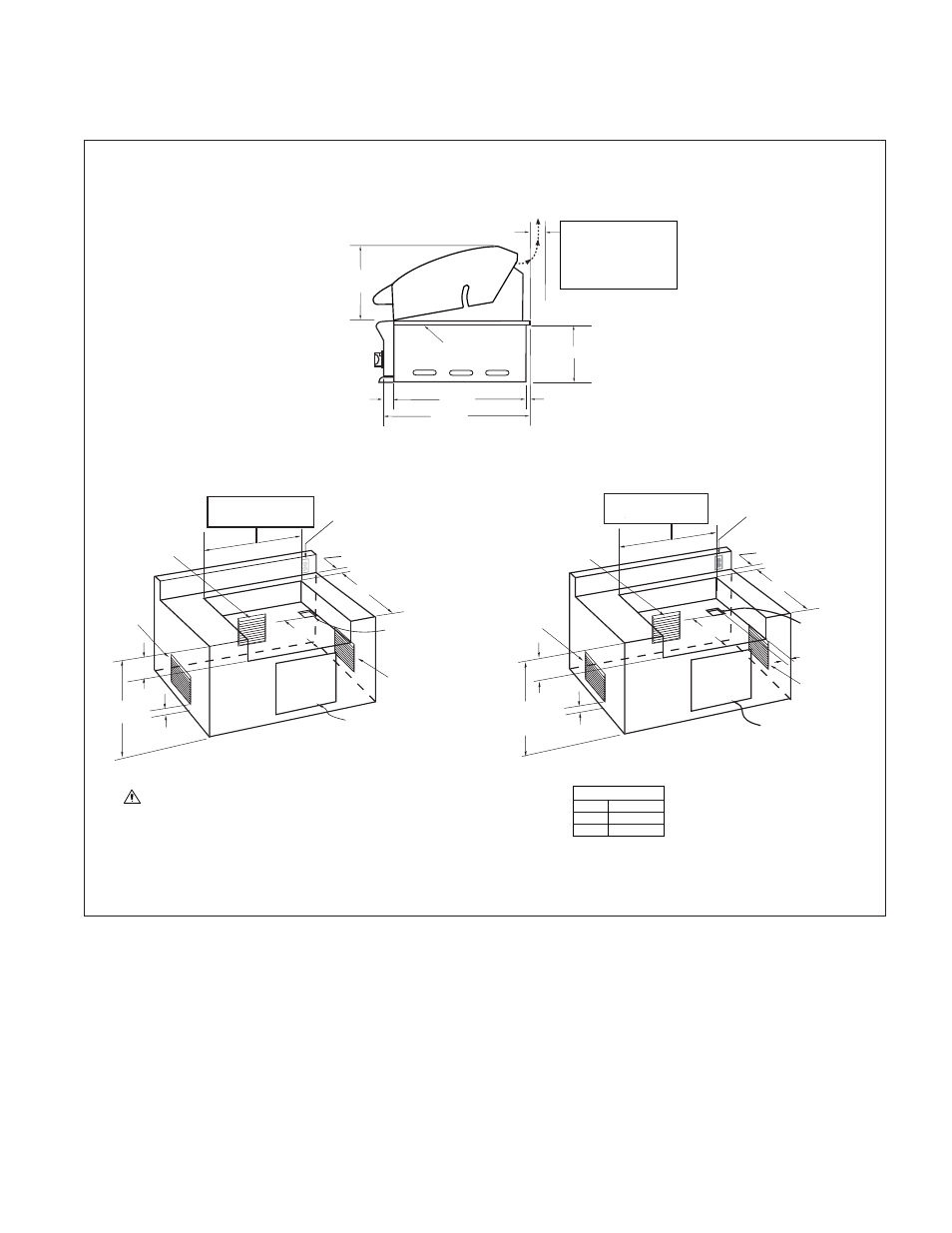

Standard layout for non-combustible enclosure:
NOTE: If using a backguard
apron or rear wall, locate
electrical service on the
right hand side for rotisserie
motor connection
BGB48 models = 1162 mm
BGB36 models = 876 mm BGB48 models = 1311 mm
BGB36 models = 1029 mm
Bottom of
support flange
min. 76 mm for
Hood Clearance
min. 76 mm for
Hood Clearance
603 mm
76 mm
470 mm
283 mm
max. 902 mm
opening for access
to gas cylinder or
shut-off valve
102 mm x 102 mm
opening for gas
supply line
opening for access to gas
cylinder or shut-off valve
102 mm x 102 mm
opening for gas supply
line
578 mm
470 mm
257 mm
max.
902 mm
Layout for insulated jacket only - combustible enclosure:
NOTE: If using a backguard
apron or rear wall, locate
electrical service on the
right hand side for rotisserie
motor connection
min. 65 cm 2
ventilation
left hand
side
min. 65 cm 2
ventilation
on the right
hand side
min. 65 cm 2 ventilation
on the back side
min. 25 mm
min. 65 cm 2
ventilation
left hand
side
min. 65 cm 2
ventilation
on the right
hand side
min. 65 cm 2 ventilation
on the back side
min. 25 mm
WARNING!
If installing the grill into a non-combustible enclosure, all combustible
construction must still be outside the 310 mm clearance zone. If your
island is made of stucco over the top of wooden studs, the wood can not
be inside the 310 mm clearance zone to combustible, even though the
stucco is what is touching the grill area.
INSULATED JACKET
Model
Part No.
BGB36 70167
BGB48 70172
INSTALLATION
BUILT–IN CONSTRUCTION DETAILS
FIG. 10
Important!
- Providing ventilation openings as per
the diagrams below is MANDATORY.
- Providing an access opening from the
front is MANDATORY. The opening
must be large enough to allow easy
access to the cylinder valve or shut-off
valve for the purposes of shutting gas
off to the appliance. If gas supply is via
cylinder, the opening must be large
enough to allow easy placement and
removal of the cylinder too. A custom
door may be fitted over the opening,
but the user should be able to open
the door at all times.
