20 EN 20 EN
Note
• RF modulator is not supplied with this unit. You need to purchase it at your local store.
• The quality of picture may become poor if this unit is connected to an RF modulator.
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.

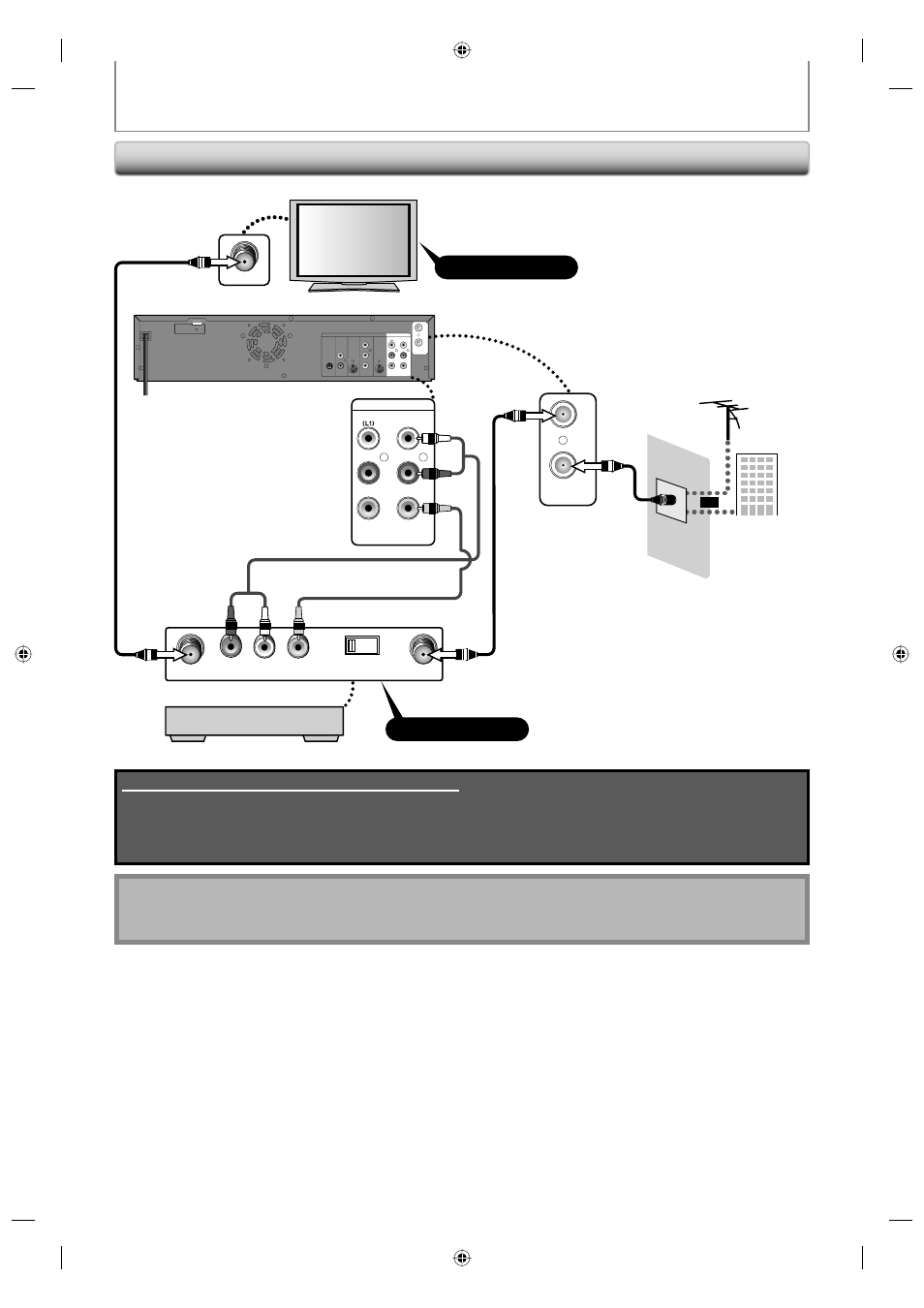

Connecting to a TV without Audio / Video Jacks
CONNECTION
ANT. IN
HDMI OUT
rear of this unit
OUT
IN
ANTENNA
DIGITAL AUDIO OUT AUDIO OUT S-VIDEO
IN
COAXIAL
L
R
L
R
L
R
S-VIDEO IN --- AUDIO --- OUT
IN --- VIDEO --- OUT
OUT
Y
P B /C B
P R /C R
COMPONENT VIDEO OUT
DVD/VCR
RCA audio cable
RCA video cable
L
R
IN --- AUDIO --- OUT
IN --- VIDEO --- OUT
AUDIO IN ANT. IN TO TV
L R
CHANNEL
4 3
VIDEO IN
RF modulator
OUT
IN
ANTENNA
VHF / UHF
antenna
cable TV
company
RF coaxial
cable
or
RF coaxial cable
Set channel 3 or 4
Set channel 3 or 4
RF coaxial cable
