Note
• Required cables and connecting methods differ depending on the cable/satellite box.
For more information, please contact your cable/satellite provider.
• Instead of using VIDEO OUT jack of this unit, you can also use S-VIDEO OUT jack, COMPONENT VIDEO OUT jack or
HDMI OUT jack for connecting to your TV.
With this setup:
• You can record any unscrambled channel by selecting the channel on the cable/satellite box. Be sure that the
cable/satellite box is turned on.
• You cannot record one channel while watching another channel.
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.

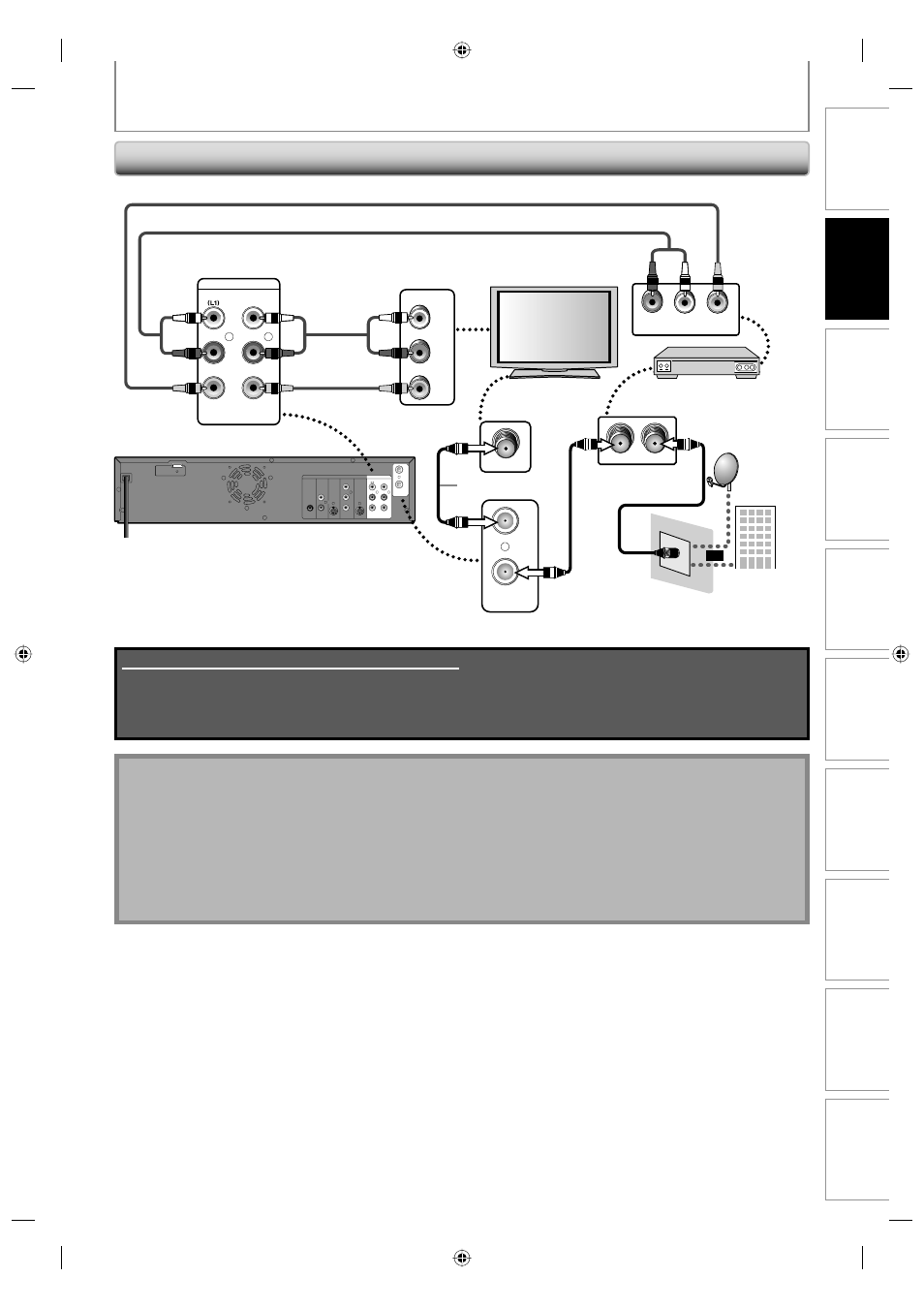

Connecting to a Cable / Satellite Box
CONNECTION
This connection is for
TV loop through only
OUT
IN
ANTENNA
RF coaxial cable
RF coaxial
cable
RF coaxial
cable
ANT. IN ANT.OUT
L R
VIDEO OUT AUDIO OUT
HDMI OUT
rear of this unit
OUT
IN
ANTENNA
DIGITAL AUDIO OUT AUDIO OUT S-VIDEO
IN
COAXIAL
L
R
L
R
L
R
S-VIDEO IN --- AUDIO --- OUT
IN --- VIDEO --- OUT
OUT
Y
P B /C B
P R /C R
COMPONENT VIDEO OUT
DVD/VCR
cable/satellite box
RCA video cable
RCA audio cable
RCA audio
cable
RCA video cable
L
R
IN --- AUDIO --- OUT
IN --- VIDEO --- OUT
satellite
dish
ANT. IN
cable TV
company
or
AUDIO IN
L
R
VIDEO IN
