4-8 Embedded Bootloader Reference Manual, Rev 0.0 Freescale Semiconductor
8. As shown in
Figure 20
, use the S19 window to specify which S19 file to store active NVM data to
and then click the “OK” button. For NVM0 use ‘PD_NVM0.s19’ and for NVM1 use
‘PD_NVM1.s19’.

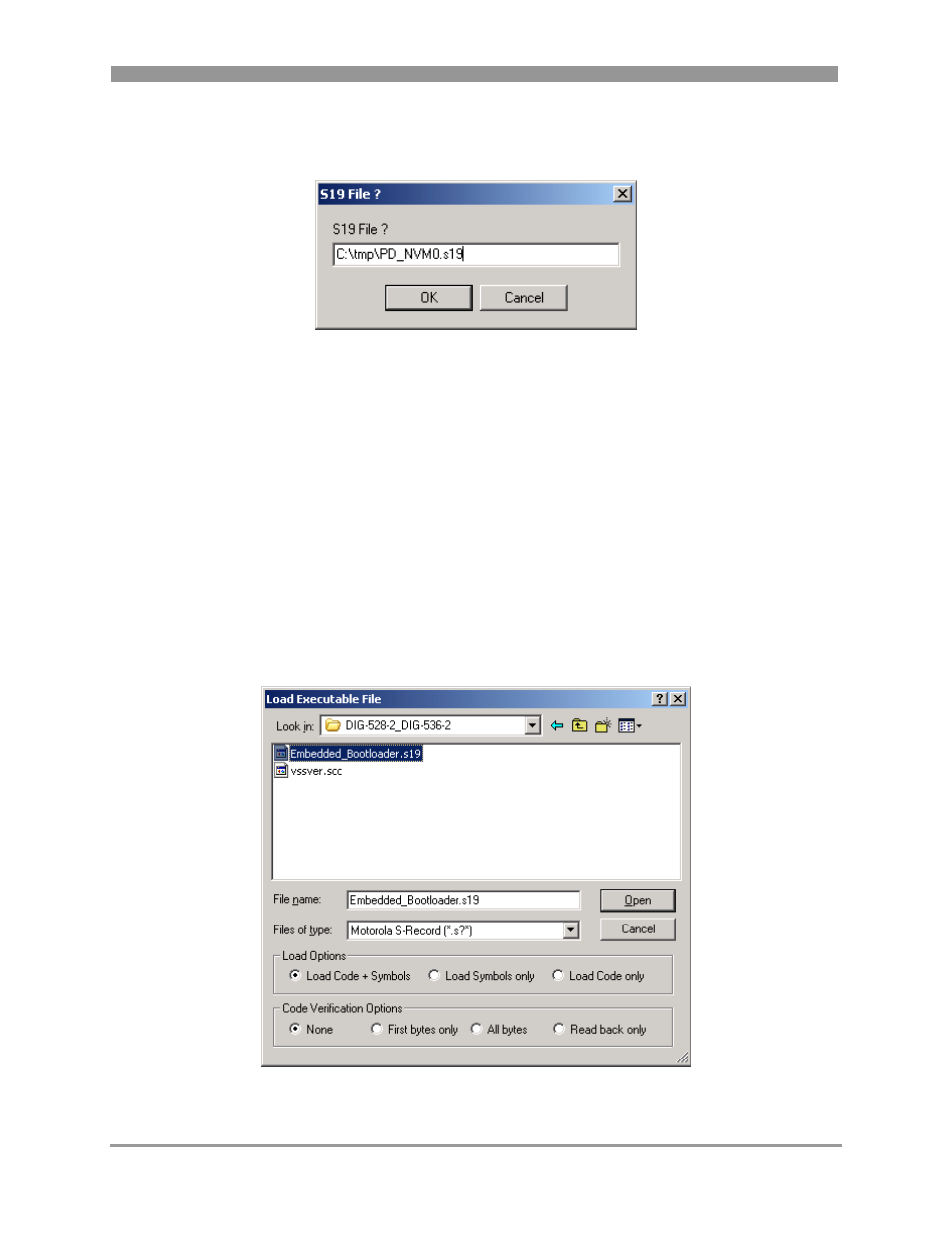

Figure 20 S19 File Window
9. Close “Programmer Expert” window.
10. Use the PC tool “Production_Data_Converter.exe” to convert the production data in NVM to default
NVM sector NVM0. Copy the “Production_Data_Converter.exe” tool to the folder that contains the
PD_NVM0.s19 and PD_NVM1.s19 files. Execute the ‘Production_Data_Converter.exe’. The output
is an PD_NVM.s19 file containing the production data from the active NVM sector.
NOTE
The “Production_Data_Converter.exe” tool can be found in the EVK release
“EVK_3_0B” in folder .\source\Zigbee_EVK\EVK_Common\CPROG_Tool\Scripts\
11. Click on “Load Application” under the “File” menu to open the “Load Executable File” window.
Specify the application file to program using the “Load Executable” window as shown in
.
Select the “Motorola S-Record (*.s19)” under “Files of type:”, then navigate to the folder where a
copy of the Embedded Bootloader is located. Select the “Embedded Bootloader.s19” file and click the
“Open” button.
Figure 21 Load Executable File Window
