ASSEMBLY ASSEMBLY
M5 Lock Nut
M5 x 29 mm
Bolt

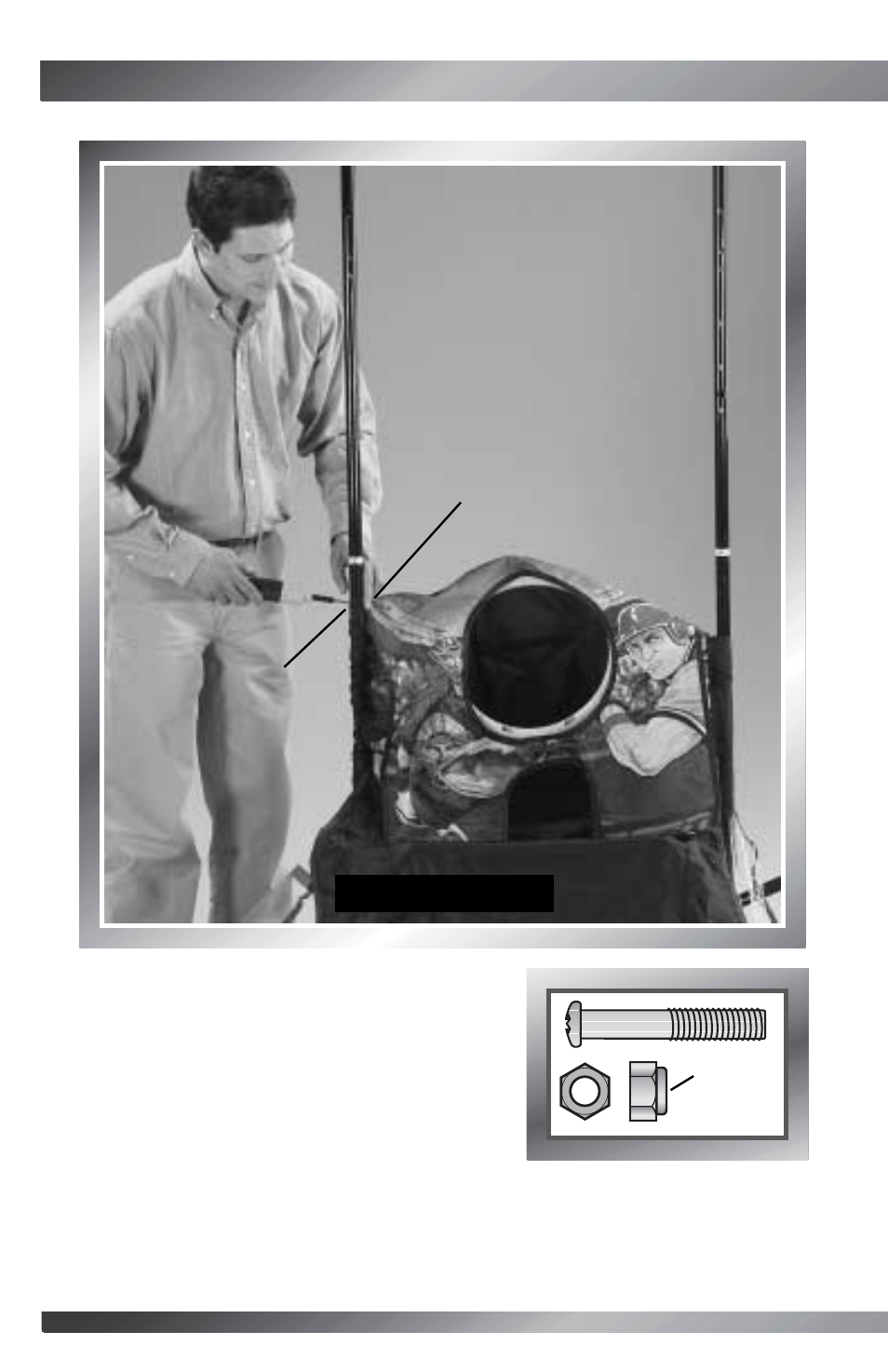

STEP 37
• Fit an M5 lock nut, rounded side out, to the
hex hole on the chute tube 4A.
• Insert an M5 x 29 mm bolt through the opposite
side of the chute tube 4A. While holding the lock
nut in place, tighten the bolt.
• Repeat this procedure to fasten the other
chute tube 4B.
BACK VIEW FRONT VIEW
Rounded
Side
