ASSEMBLY ASSEMBLY

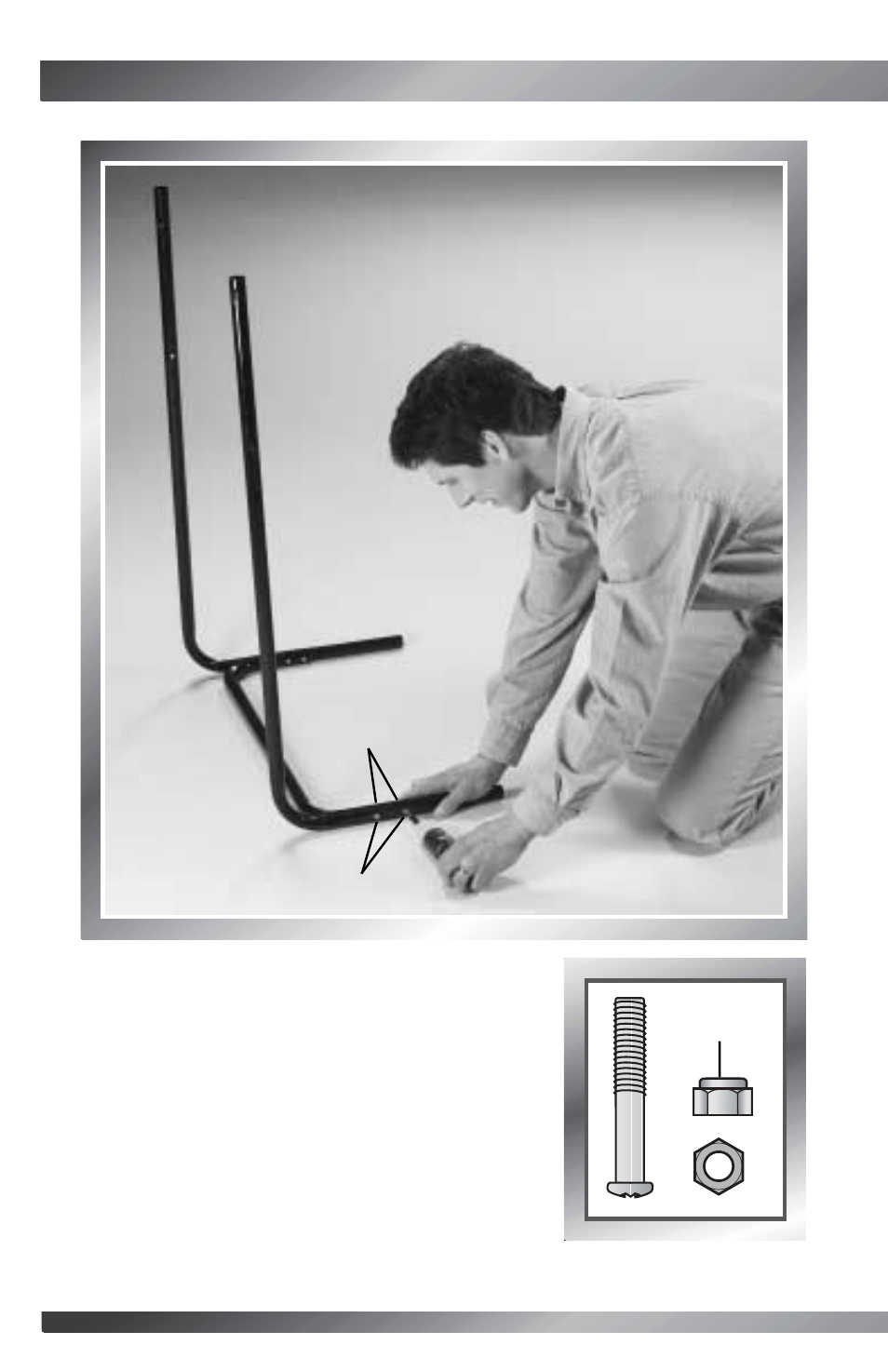

STEP 3
Tip: You will need to lean the assembly against
a wall or an object to complete this step.
• Insert an M5 x 29 mm bolt through the outside
of the other L tube.
• Fit an M5 lock nut, rounded side out, to the
matching hex hole in the crossbar.
• While holding the lock nut in place, tighten the bolt.
• Fit another M5 lock nut and an M5 x 29 mm bolt
to the crossbar and L tube and tighten.
M5 Lock Nuts
M5 x 29 mm Bolts
Rounded
Side
