Furuno Multi Instrument FI-504 User Manual
Page 28
3. INSTALLATION
20
Terminal resistor

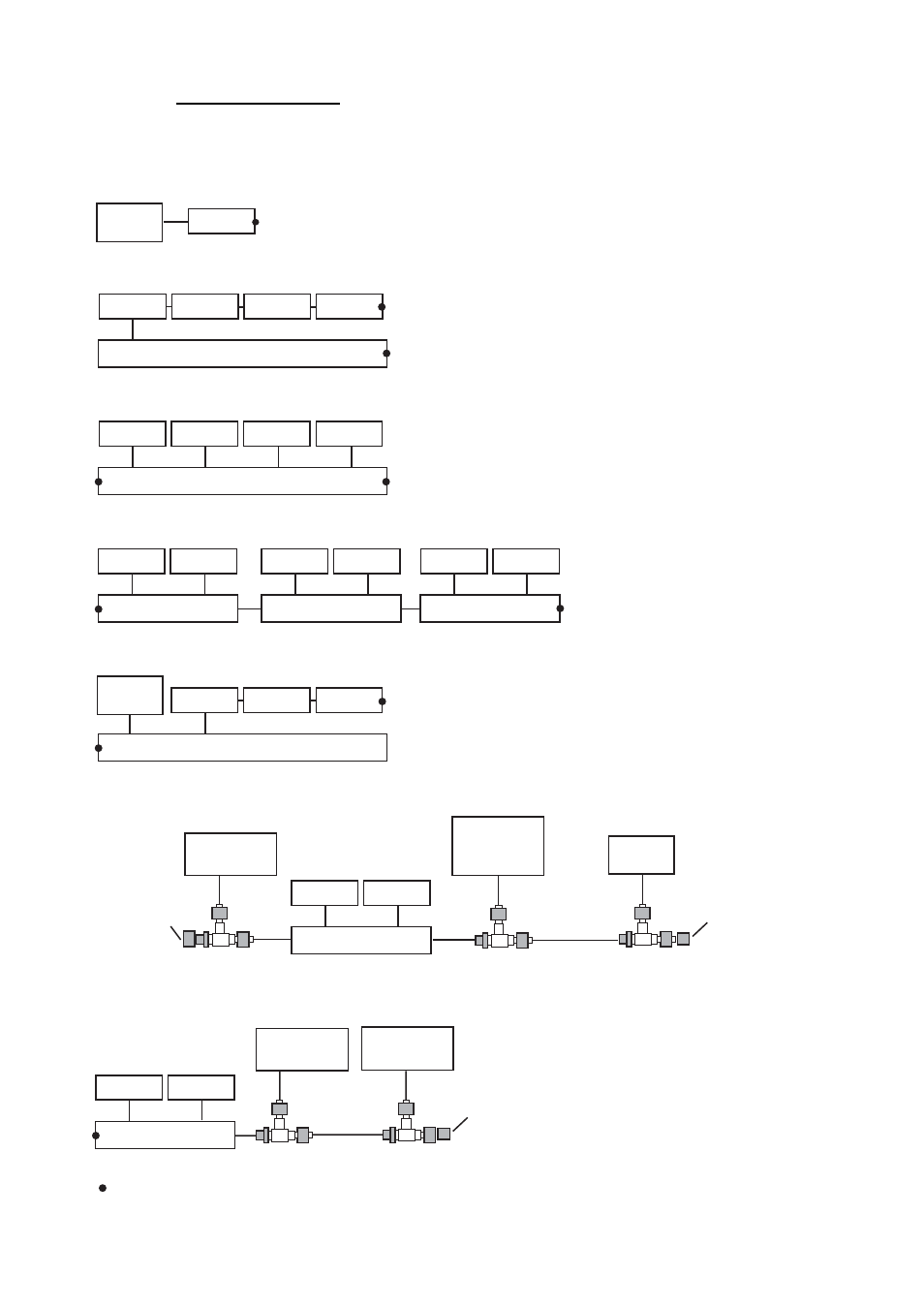

The illustration below show various system configurations and what units
to activate the terminal resistor.
= Terminal resistor ON
FI-50x
Smart
Sensor
Smart sensor+FI-50x
FI-50x
Multiple FI-50 series instruments, FI-5002, drop cabling
FI-5002
FI-50x FI-50x FI-50x
Drop cable
FI-50x
FI-5002
FI-50x FI-50x FI-50x
Multiple FI-50 series instruments, FI-5002
FI-50x
FI-5002
FI-50x FI-50x
Multiple FI-50 series instruments, FI-5002, smart sensor
Smart
Sensor
Multiple FI-50 series instruments, multiple FI-5002
FI-5002
FI-50x FI-50x
FI-5002
FI-50x FI-50x
FI-5002
FI-50x FI-50x
Multiple FI-50 series instruments, FI-5002, heading sensor, smart sensor
Multiple FI-50 series instruments, FI-5002, NMEA 2000 sensors
FI-5002
FI-50x FI-50x
Heading
Sensor
(ex. SC-30)
Smart
Sensor
T-connector
T-connector
T-connector
NMEA 2000
Sensor
FI-5002
FI-50x FI-50x
NMEA 2000
Sensor
T-connector
NMEA 2000
Sensor
T-connector
Terminator
Terminator
Terminator
