C141-E056-01EN

3 - 9

3.3.4

Power supply connector (CN1)

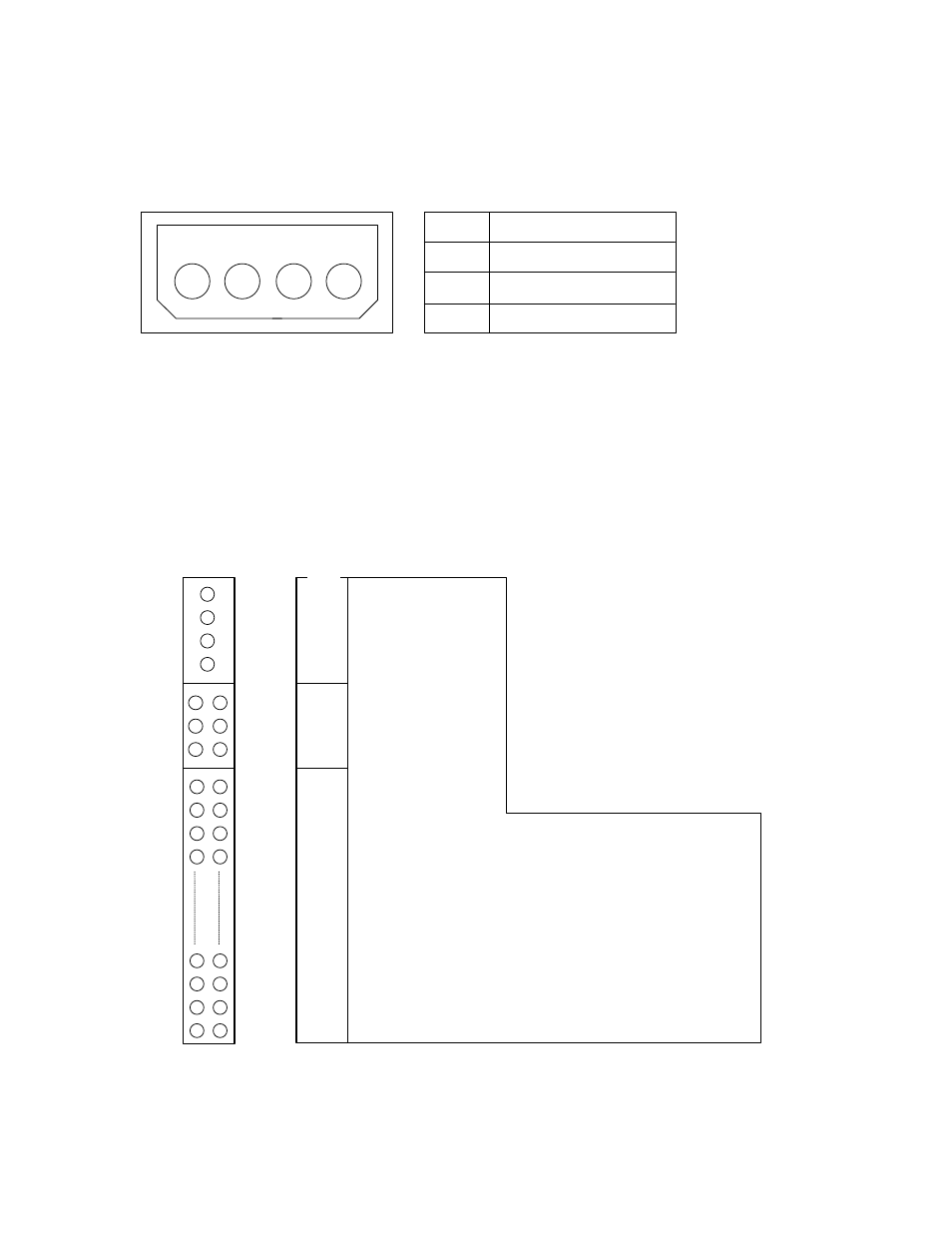

Figure 3.9 shows the pin assignment of the power supply connector (CN1).

(Viewed from cable side)

4

3

2

1

+5VDC

+5V RETURN

+12V RETURN

+12VDC

4

3

2

1

Figure 3.9

Power supply connector pins (CN1)

3.4

Jumper Settings

3.4.1

Location of setting jumpers

Figure 3.10 shows the location of the jumpers to select drive configuration and functions.

A39

A40

Interface
Connector

Mode setting
Connector
pins

Power
supply
connector

C01

C04

B01/02

B06

B05

B05/06

A01/02

A39/40

CN1

A01

A02

B02

C04

C01

B01

Figure 3.10 Jumper location
