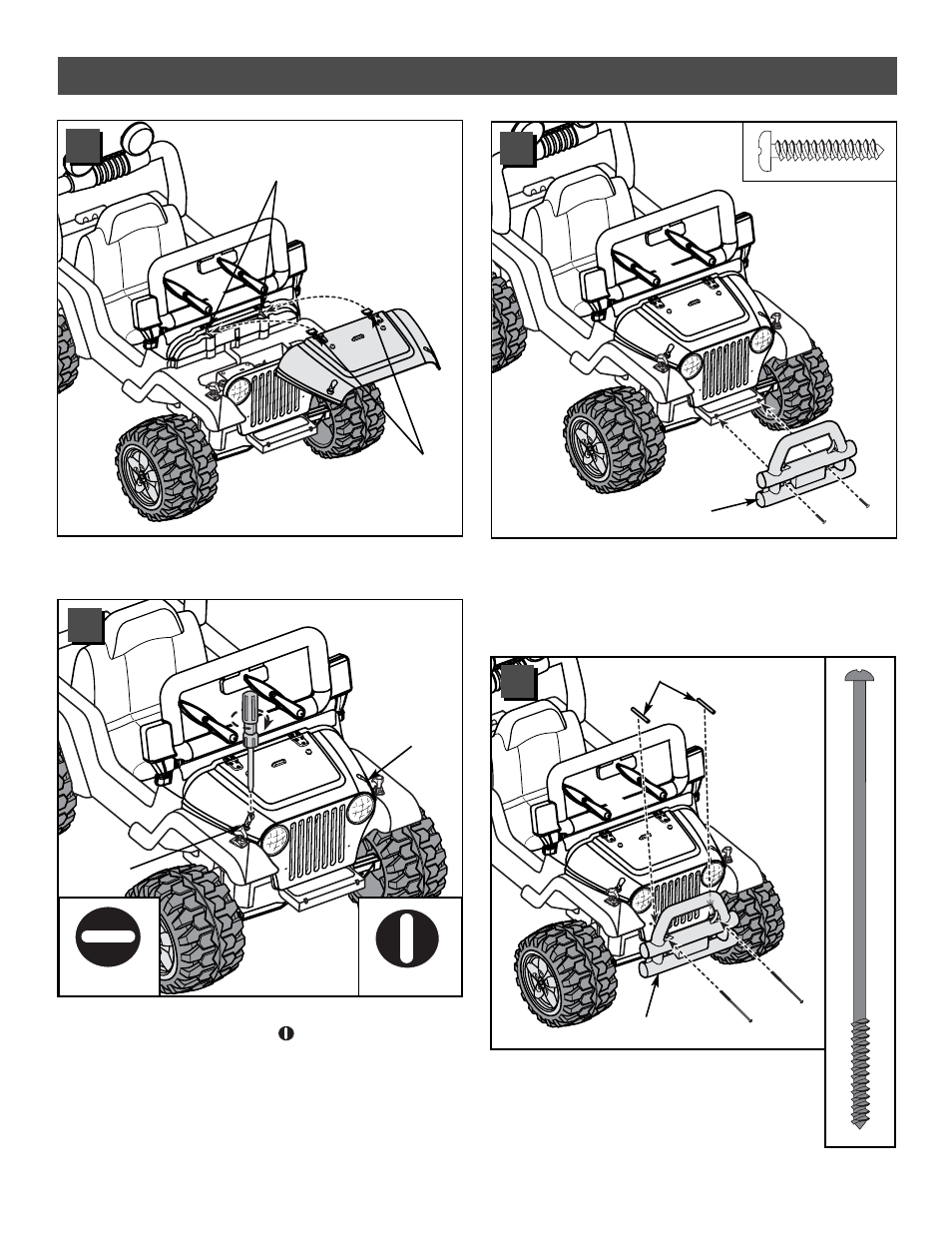

• Fit the spacers between the top of the brush
guard and the front end of the vehicle.
• Insert two #8 x 4" screws through the two
upper holes in the brush guard, through the
spacers and into the front end of the vehicle.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
27
Assembly
• Fit the brush guard on the front end of the vehicle.
• Insert two #10 x 1" screws through the lower holes in the
brush guard and into the front end of the vehicle.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
• Insert the tabs on the rear edge of the hood into the slots
in the front of the dashboard.
26
Spacers
Brush Guard
Brush Guard
Dashboard
Slots
Hood
Tabs
Locked Unlocked
Lock
Fastener
Lock
Fastener
• Using a slotted screwdriver, turn each lock fastener in
the hood 1 /
4
turn to the locked position.
IMPORTANT! Remember to keep the lock fasteners
locked at all times to prevent children from accessing
the vehicle battery compartment.
