14
Assembly

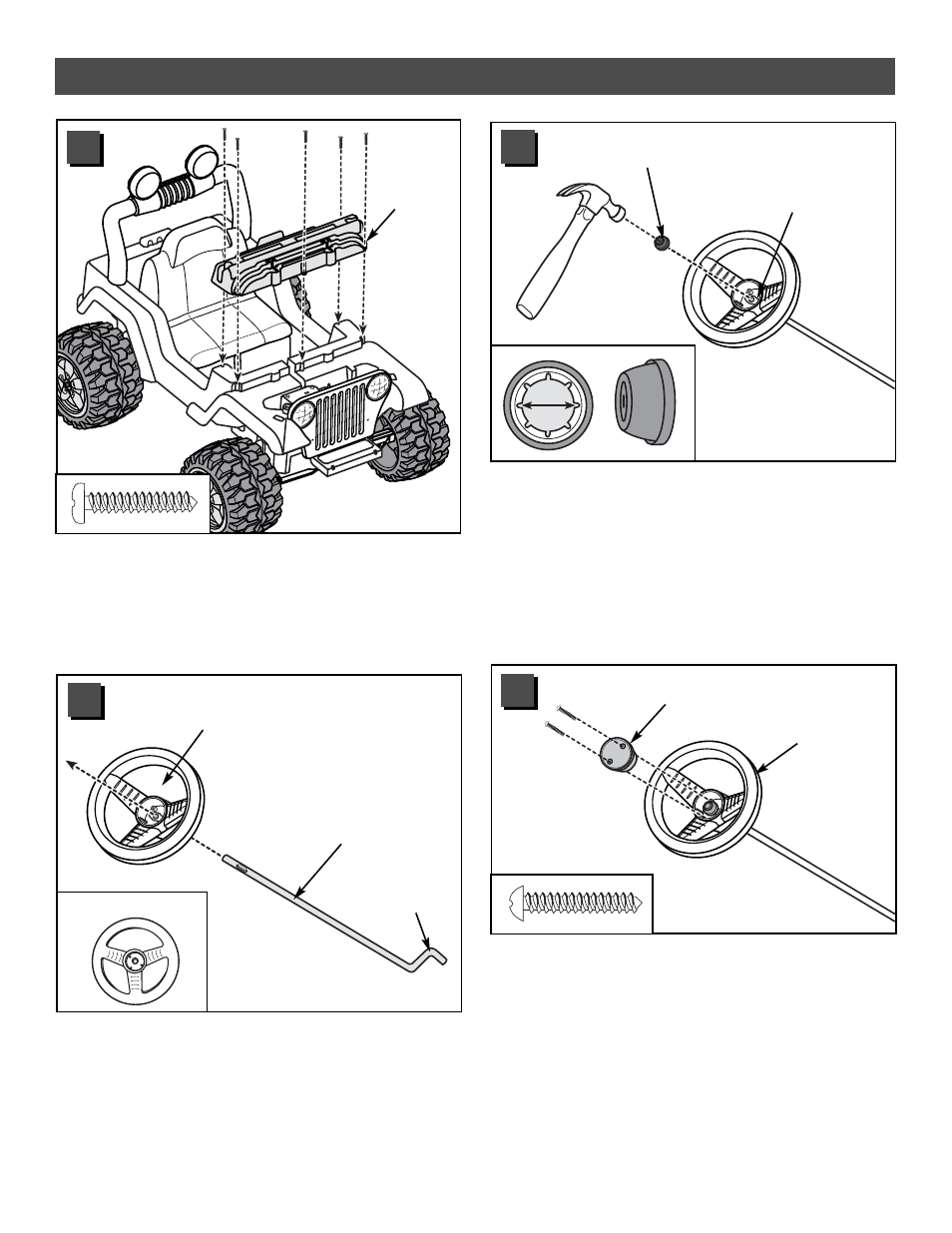

• Place the dashboard on the top side of the vehicle body,
as shown.
• Insert five #10 x 1" screws through the dashboard and
into the vehicle body.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
16
Dashboard
Bend
Upright
Steering Column
Steering Wheel
Large Opening
• Position the steering wheel with the large opening upright.
• Position the steering column so that the bend is upright,
as shown.
• Fit the steering column through the center hole in the
steering wheel.
Large Opening “UP”
• Fit a .437 cap nut on the end of the steering column.
• Tap the cap nut with a hammer to secure the cap nut
on the steering column. Pull on the cap nut to be sure
it is secure.
Hints:
- You may need the help of another adult to keep these
two parts in the correct position.
- You may want to position the steering column on a
scrap block of wood to protect the assembly surface.
• Fit the steering wheel cap into the center of the steering
wheel. Be sure to align the notch in the steering wheel
cap with the tab in the center of the steering wheel.
• Insert two #8 x 1" screws through the steering wheel
cap and into the steering wheel.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
Steering Wheel
Steering Wheel Cap
.437 Cap Nut
End of Steering Column
.437"
18
19
17
