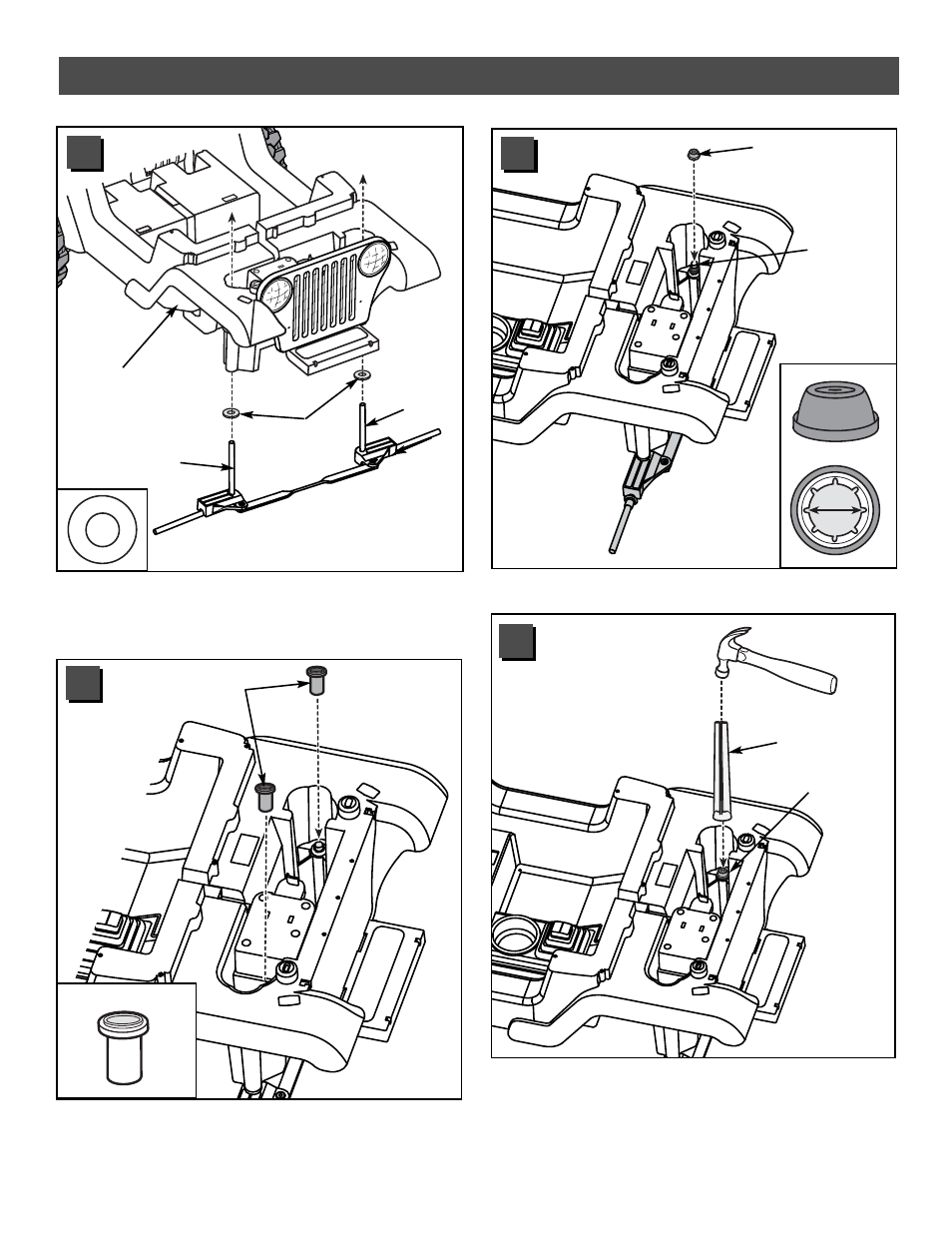

• While holding the front axle/steering linkage assembly in
place, fit a long bushing onto the end of each front axle.
• Push each long bushing so that it fits completely into the
vehicle body.
Long Bushings
Assembly Tool
12
Assembly
• Fit the assembly tool onto the cap nut.
• While supporting the front axle/steering linkage assembly,
tap the assembly tool with a hammer to secure the cap
nut on the end of the front axle. Pull on the cap nut to be
sure it is secure.
• Repeat this procedure to fasten a cap nut to the other
front axle. Throw the assembly tool away.
• Fit a .437 cap nut onto the end of each front axle.
11
• Slide a washer onto the short end of each front axle.
• Fit the front axles up through the holes in the underside
of the vehicle body.
8
Short End
of Front Axle
Front Axle
Short End
of Front
Axle
.437 Cap Nut
.437 Cap Nut
Vehicle Body
Washers
9
10
Long Bushing
.437"
