Assembly

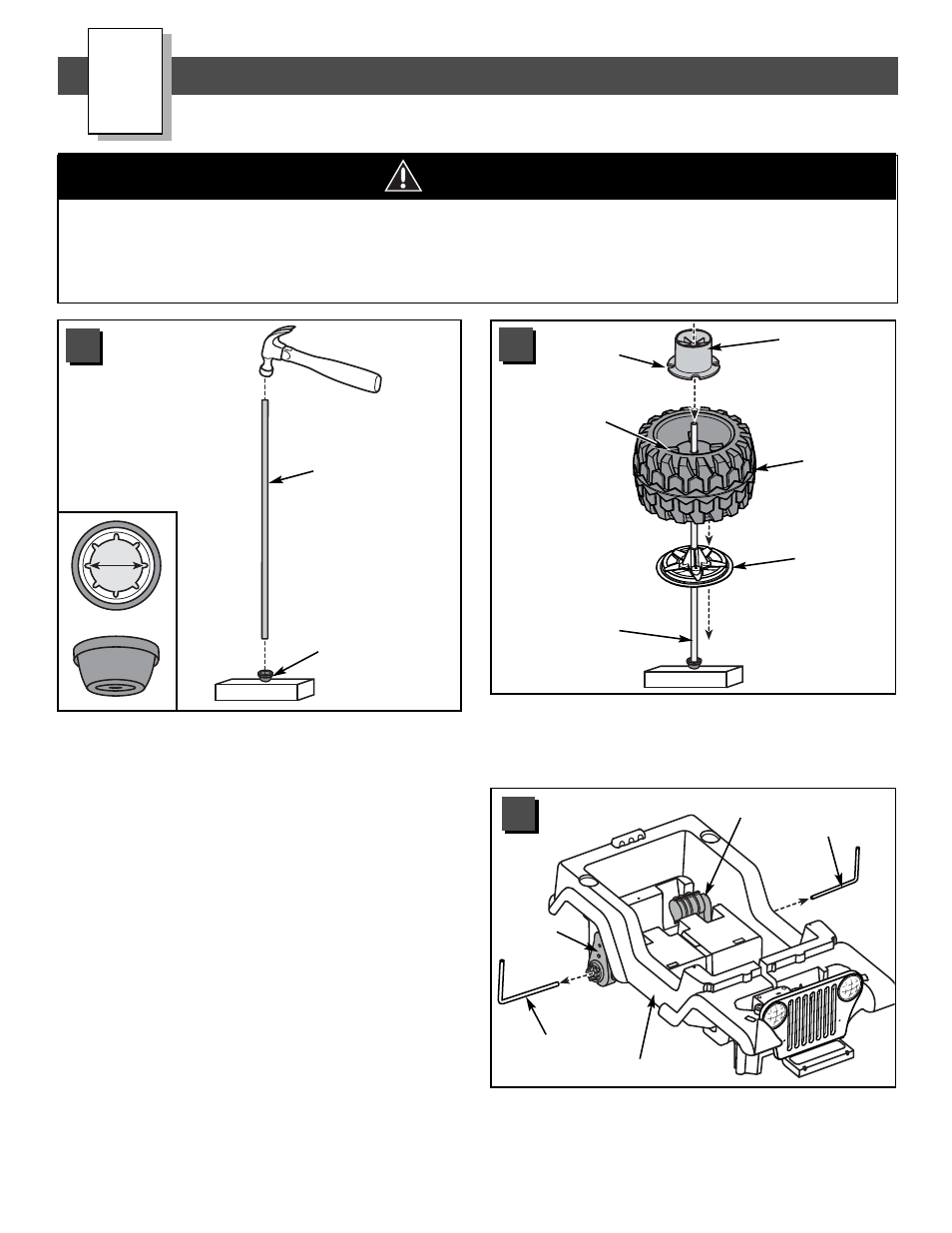

• Place a .437 cap nut on a flat surface, inside up, as shown.
Hint: You may want to place a scrap block of wood
underneath the cap nut to protect the assembly surface.
• Fit the rear axle into the cap nut.
• Tap the opposite end of the rear axle with a hammer to
secure the cap nut in the rear axle. Pull on the cap nut
to be sure it is secure.
• Slide a hubcap (flat side down), a wheel (flat side down)
and a driver (ring side down) on the rear axle.
• Make sure the ribs on the wheel fit into the grooves in
the driver.
Rear Axle
.437 Cap Nut
Driver
(Ring Side Down) Groove
Rib
Wheel
(Flat Side Down)
Hubcap
(Flat Side Down)
Rear Axle
(with Cap Nut)
Motor
Motor
Vehicle Body
Remove
Front Axle
Remove
Front Axle
F
Children can be harmed by small parts, sharp edges and sharp points
in the vehicle’s unassembled state, or by electrical items. Care should be taken
in unpacking and assembly of the vehicle. Children should not handle parts,
including the battery, or help in assembly of the vehicle.
WARNING
1 2
• Carefully remove the front axles from the motors in the
vehicle body.
Hint: Keep the motors in place in the vehicle body for the
next assembly step.
3
.437"
