7.2.7 Application State Transition
7.2.7.1 MP3
In the case of MP3, the simple AV system consists of the six states shown in Figure 52.
⑥Audio data
playback state
④Audio data
playback stop
state
③Audio data
selection image
display processing
state
⑤Audio data image
display processing
state
②Initialization
state
①Reset state
[Initial setting complete]
[Media recognized]
[Image display processing complete]
[Play/stop switch press] or
[selection by touch panel]
[Image display processing complete]
[USB memory removed]
[USB memory removed]
[USB memory removed]
[USB memory removed]
[No corresponding MP3 file]
[play/stop switch press],
[stop by touch panel],
or [MP3 file play finish]

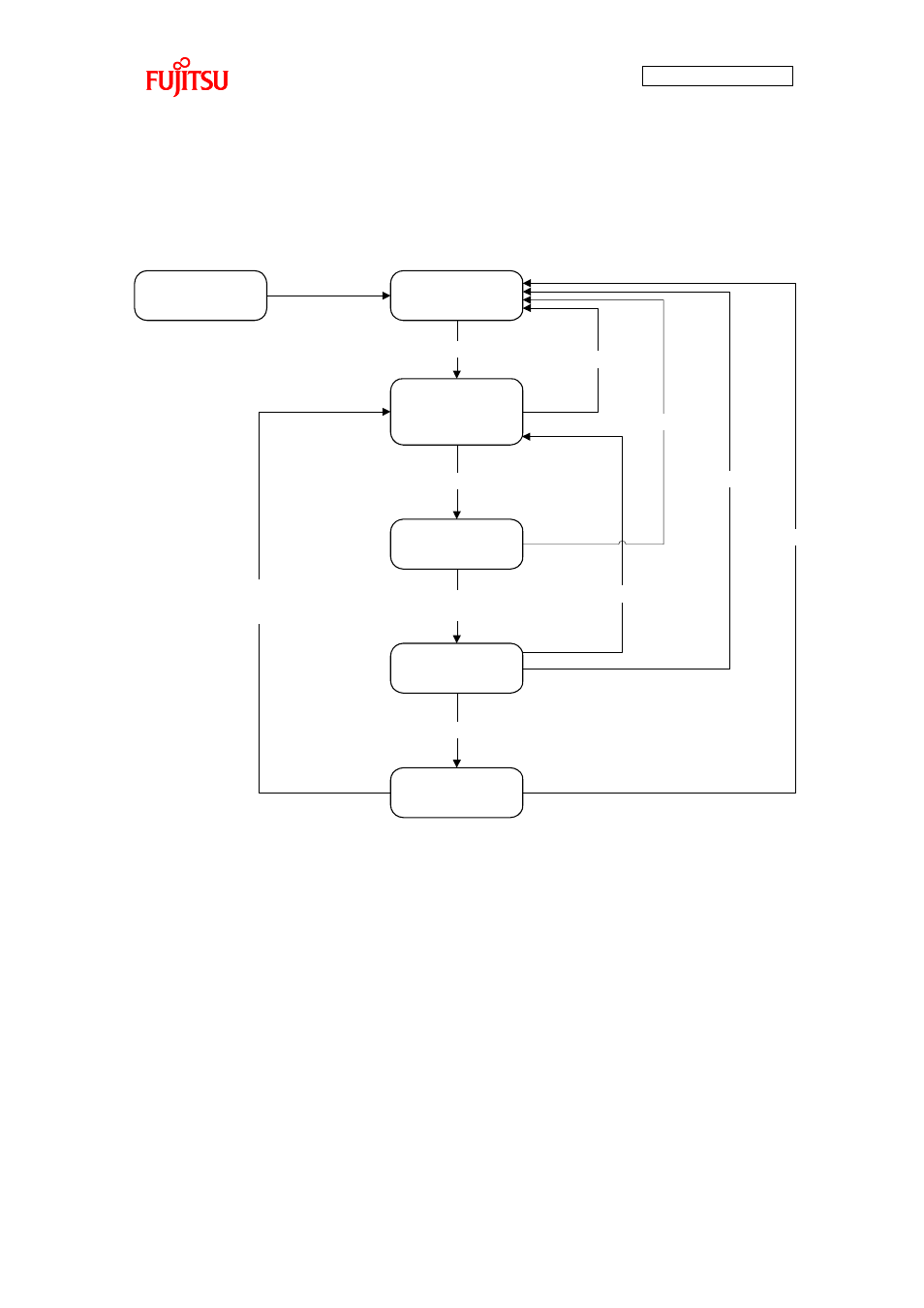

Figure 52 State Transition (MP3)
① Reset State
The simple AV system is in reset state immediately after the power has been
turned on.
In the reset state, internal initialization is executed.
