3
HARDWARE CONNECTIONS

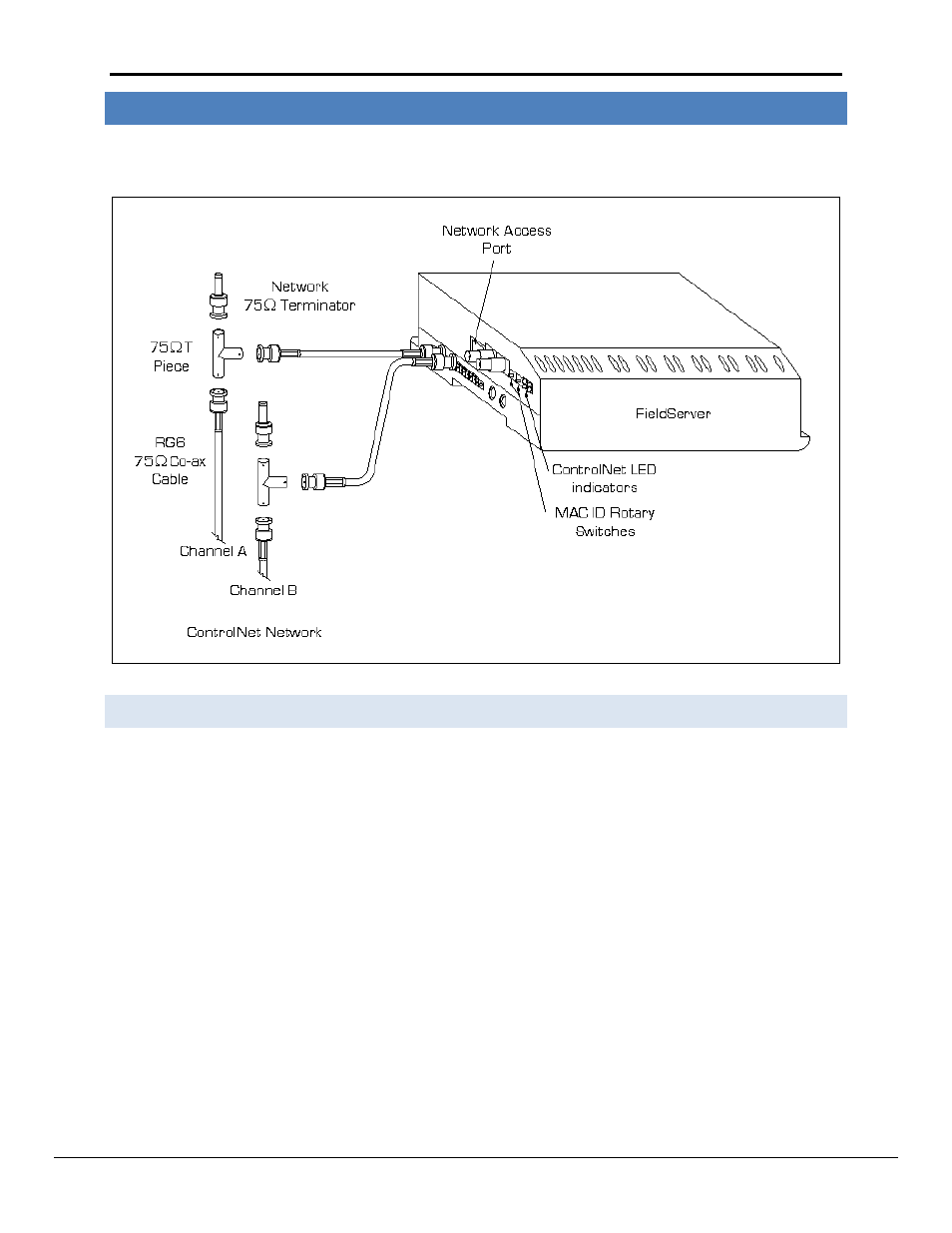

The FieldServer is connected to the ControlNet network as shown in the connection drawing below.
3.1
Hardware Connection Tips / Hints
Use the recommended network cable and terminators as specified by the ControlNet network organization and/or
the manufacturer of your network equipment.
