Appendix A. Useful Features

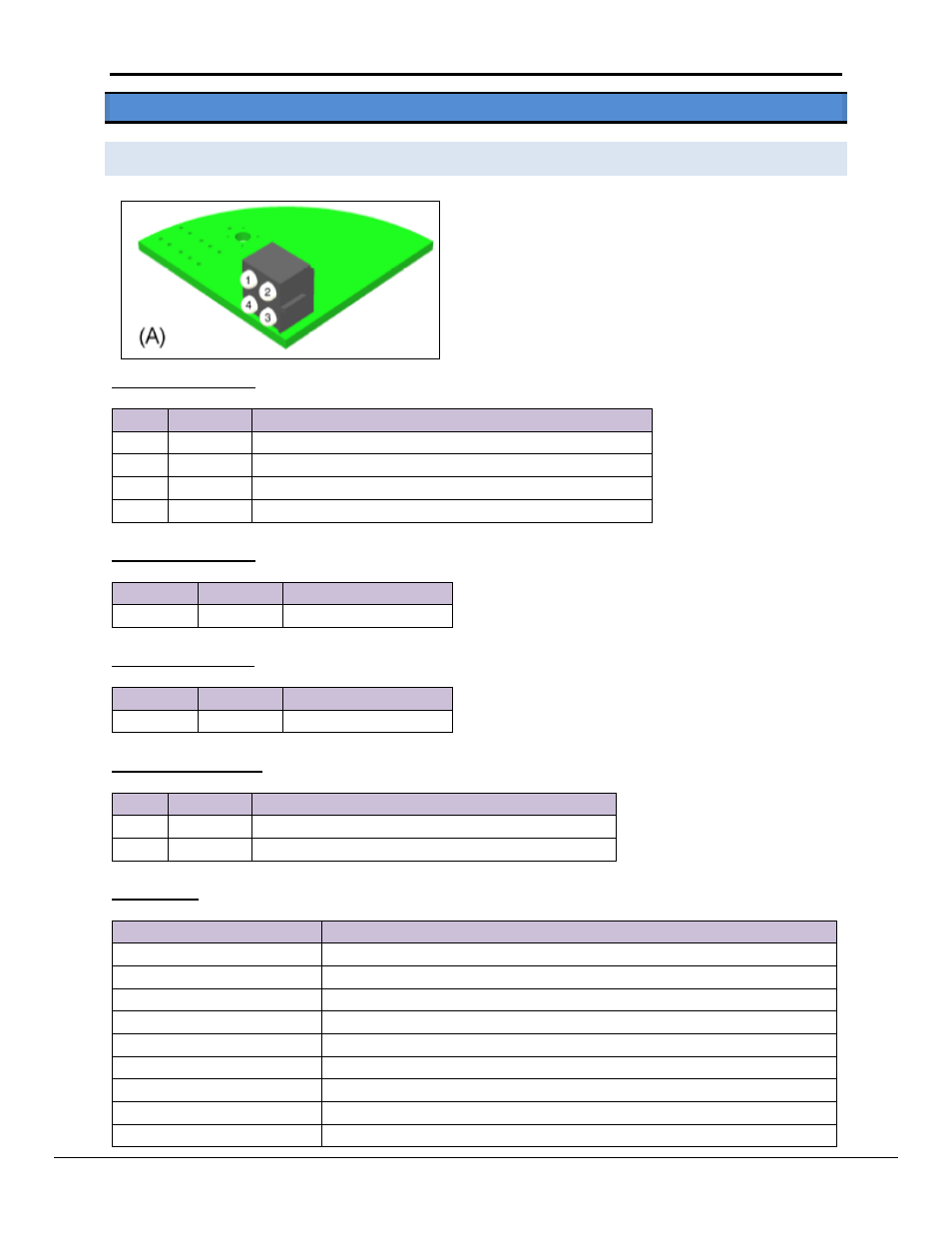

Appendix A.1. ControlNet X30 LED indicators
LED 1 – Module status
Color Frequency Description
Green Flashing Module is waiting for initialisation
Green Steady on Module is initialised
Red Flashing Minor fault, MacID has been changed after initialisation, etc.
Red Steady on Major fault, module must be restarted
LED 2 – LED Channel A
Color Frequency Description
Red/Green - See Channel LEDs below
LED 3 – LED Channel B
Color Frequency Description
Red/Green - See Channel LEDs below
LED 4 – Module Owned
Color Frequency Description
Green Steady on A connection is opened against the ControlNet module
Off - No connection is opened
Channel LEDs
Channel LEDs Description
A and B, steady off Module is not initialised
A and B, steady red Faulted unit, must be restarted or repaired
A and B, alternating red/green Selftest of bus controller
A and B, flashing red
Incorrect node configuration, duplicate MacID, etc.
A or B, steady off Channel is disabled, depending on network configuration
A or B, steady green Normal operation of channel
A or B, flashing green Temporary errors (node will self correct) or node is not configured to go online
A or B, flashing red Media fault or no other nodes on the network
A or B, flashing red/green Incorrect network configuration
