19
VM04 Owner’s manual
1
2, 5
3, 7
6
4
0
6
12
24
OL
1
2
3
4
L
R
1
2
3
4
MIN
L
R
MAX
VIEW
48
EQ
PAN
LO
HI
EFF
SCENE NO.
LEVEL
CH
MASTER
0
6
12
24
OL
1
2
3
4
L
R
1
2
3
4
MIN
L
R
MAX
VIEW
48
EQ
PAN
LO
HI
EFF
SCENE NO.
LEVEL
CH
MASTER

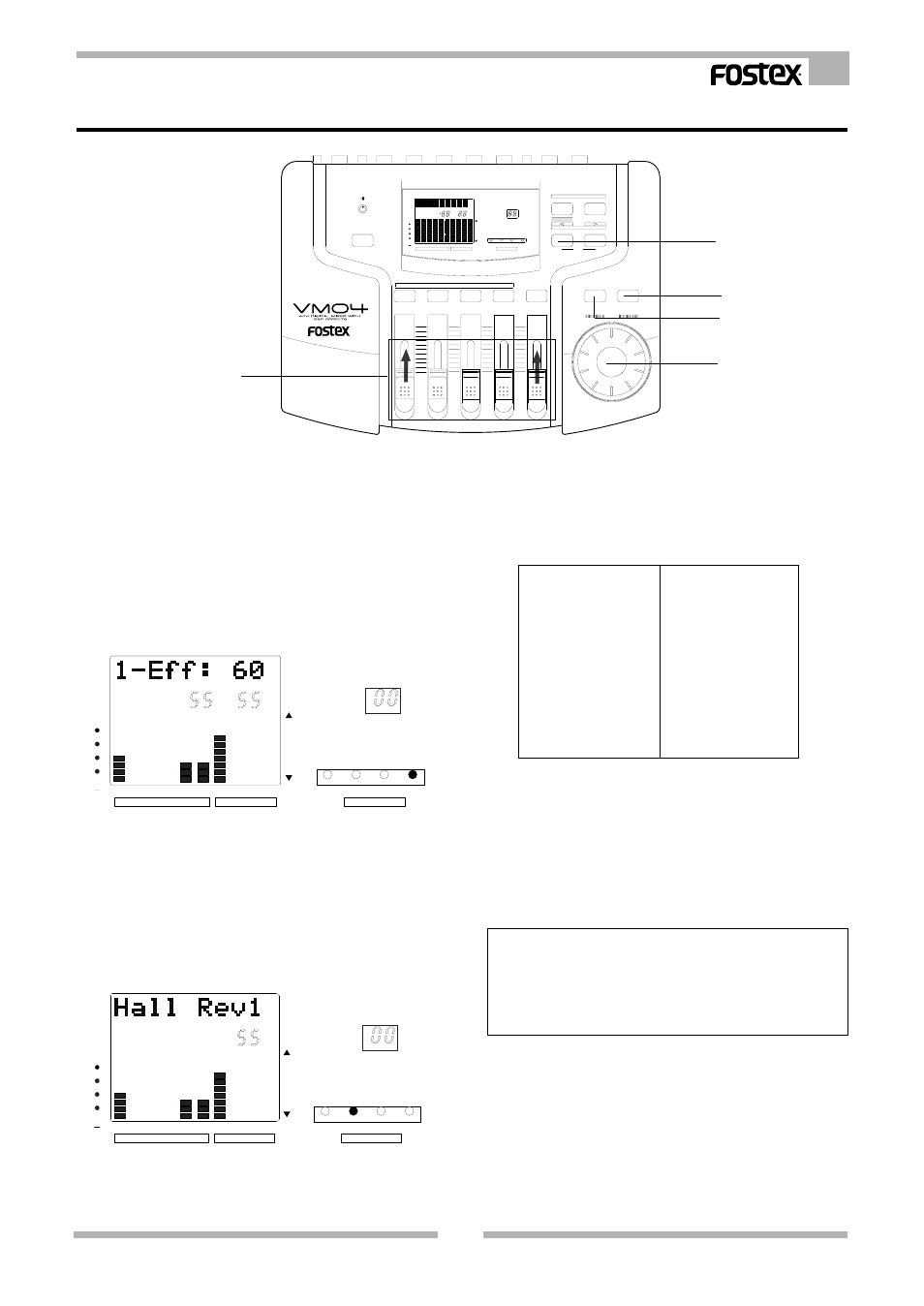

7-1. EFFECT TYPE setting
1. Raise the MASTER Fader and INPUT Fader of the
Channel you have the incoming audio signal
connected to in the NORMAL MIX MODE (Item 5.)
so that you can hear the audio.
2. In the EFFECT SEND Level setting (Item 6-4.), turn
the DATA ENCODER clockwise to set a reasonable
sound level, e.g., Eff: 60.
You will now start hearing the Effect sound.
3. Press the EXIT key to come out of the EFFECT
SEND Level setting mode.
4. Press the EFFECT TYPE key once.
The key will light up and also the LCD Display will
read “HallRev 1”. For your information, you can
enter the EFFECT MODE from whatever mode you
are in, such as NORMAL MIX MODE and CHANNEL
EDIT MODE.
5. Rotate the DATA ENCODER clockwise.
You can see the following Effect types one after
another. Only the indicators are changing at this
stage. You can choose just one type from among
them at any one time.
1:Hall Rev1
11:Stadium1
2:Hall Rev2
12:Stadium2
3:Hall Rev3
13:Delay
4:Hall Rev4
14:Delay+Rev
5:Room Rev1
15:L-R Delay
6:Room Rev2
16:L-R+Rev
7:Room Rev3
17:Chorus
8:Room Rev4
18:Cho+Rev
9:Plate Rev1
19:Flanger
10:Plate Rev2
20:Fla+Rev
6. Press the ENTER key after you have decided which
one you want to choose.
Your choice will be effective now and will be shown
on the display. The parameter of the type you
have chosen will be the default setting.
7. Press the EXIT key to quit the EFFECT MODE.
Caution
The audio may momentarily disappear or some clicking
noises may appear when you decide the Effect type by
pressing the ENTER key. This is not a fault, but is due to the
VM04 resetting its internal circuit (DSP).
EQ
VIEW
CHANNEL EDIT
MASTER
4
3
2
1
MAX
MIN
SCENE No
0
6
12
24
OL
1
2
3
4
L
R
1
2
3
4
MIN
R
MAX
EFF
HI
LO
PAN
EQ
VIEW
LEVEL
FADER ADJUST
ENTER
EXIT
DATA
STORE
RECALL
SCENE
PARAMETER
TYPE
EFFECT
SETUP
MAX
MIN
MAX
MIN
MAX
MIN
CH
MASTER
48
L
