17
VM04 Owner’s manual
0
6
12
24
OL
1 2 3 4 L R 1 2 3 4 MIN
L
R
MAX
VIEW
48
EQ
PAN LO HI EFF
SCENE NO.
LEVEL
CH MASTER
0
6
12
24
OL
1 2 3 4 L R 1 2 3 4 MIN
L
R
MAX
VIEW
48
EQ
PAN LO HI EFF
SCENE NO.
LEVEL
CH MASTER
EFF dot is flashing. A dot moving up and down.
Indicates 0 ~ 99.
0
6
12
24
OL
1 2 3 4 L R 1 2 3 4 MIN
L
R
MAX
VIEW
48
EQ
PAN LO HI EFF
SCENE NO.
LEVEL
CH MASTER
0
6
12
24
OL
1 2 3 4 L R 1 2 3 4 MIN
L
R
MAX
VIEW
48
EQ
PAN LO HI EFF
SCENE NO.
LEVEL
CH MASTER
EFF dot is flashing. Moves up or down at each 3rd digit.
Indicates Pst or Pre.

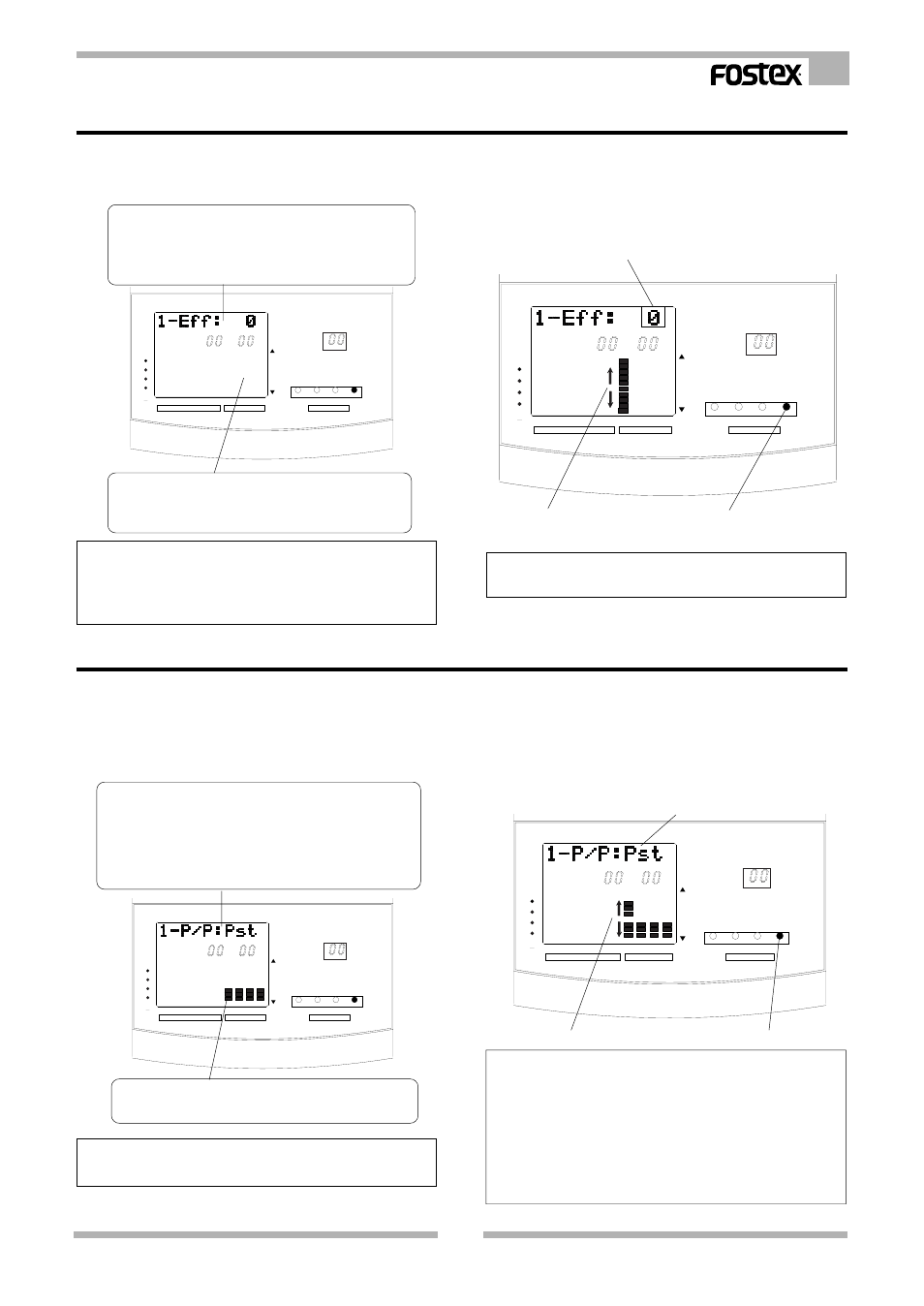

6-4. EFFECT SEND setting
1. Press the VIEW key so that the EFF dot is flashing
on the VIEW Status Indicator.
The LCD Display will show the following message:
VIEW display
Nothing will show here as the EFFECT SEND level
is set to Nil at the moment.
2. Rotate the DATA ENCODER clockwise.
The display on the Character section will change
to 00 ~ 99 and the Effect sound will become louder.
At the same time, a flashing dot will appear on the
Channel 1 VIEW display and move upwards.
When turning the DATA ENCODER, the position display
will read 0 ~ 99 with a 100 step digital indication. But, the
actual EFFECT SEND level is -
∞
~ +6dB.
See EFFECT MODE (page 18) for more details of
the internal digital Effect.
6-5. EFFECT POST/PRE setting
1. Press the VIEW key just once more at the previous
EFFECT SEND setting.
There will be no change on the VIEW Status
Indicator but the LCD Display will show the
following message:
Character section
This will display “1-P/P: Pst”. This means that you
can now choose the Channel 1 EFFECT SEND in
either the Post-Fader or Pre-Fader position. At this
point the setting is Post-Fader.
VIEW display
The bottom three dots will flash on the bar-graph.
See EFFECT MODE (page 18) for more details of
the internal digital Effect.
2. Rotate the DATA ENCODER clockwise.
The display on the Character section will change
from “Pst” to “Pre” and the EFFECT SEND point
setting will switch over to the Pre Fader position.
Also, the VIEW display will change and the top three
dots will start flashing.
The setting indication on the VIEW display will remain as a
dot even after quitting the CHANNEL EDIT MODE, e.g.,
PAN, EQ Lo, EQ Hi, EFFECT SEND and EFFECT POST/
PRE. So you can easily confirm the setting of all four
channels at once in the Normal Mix mode. Press the VIEW
key to choose the setting by referring to the VIEW Status
Indicator.
Character section
This will display “1-Eff: 0”. This means that you
can now adjust the Channel 1 EFFECT SEND
setting. At this point the setting is zero, dry.
