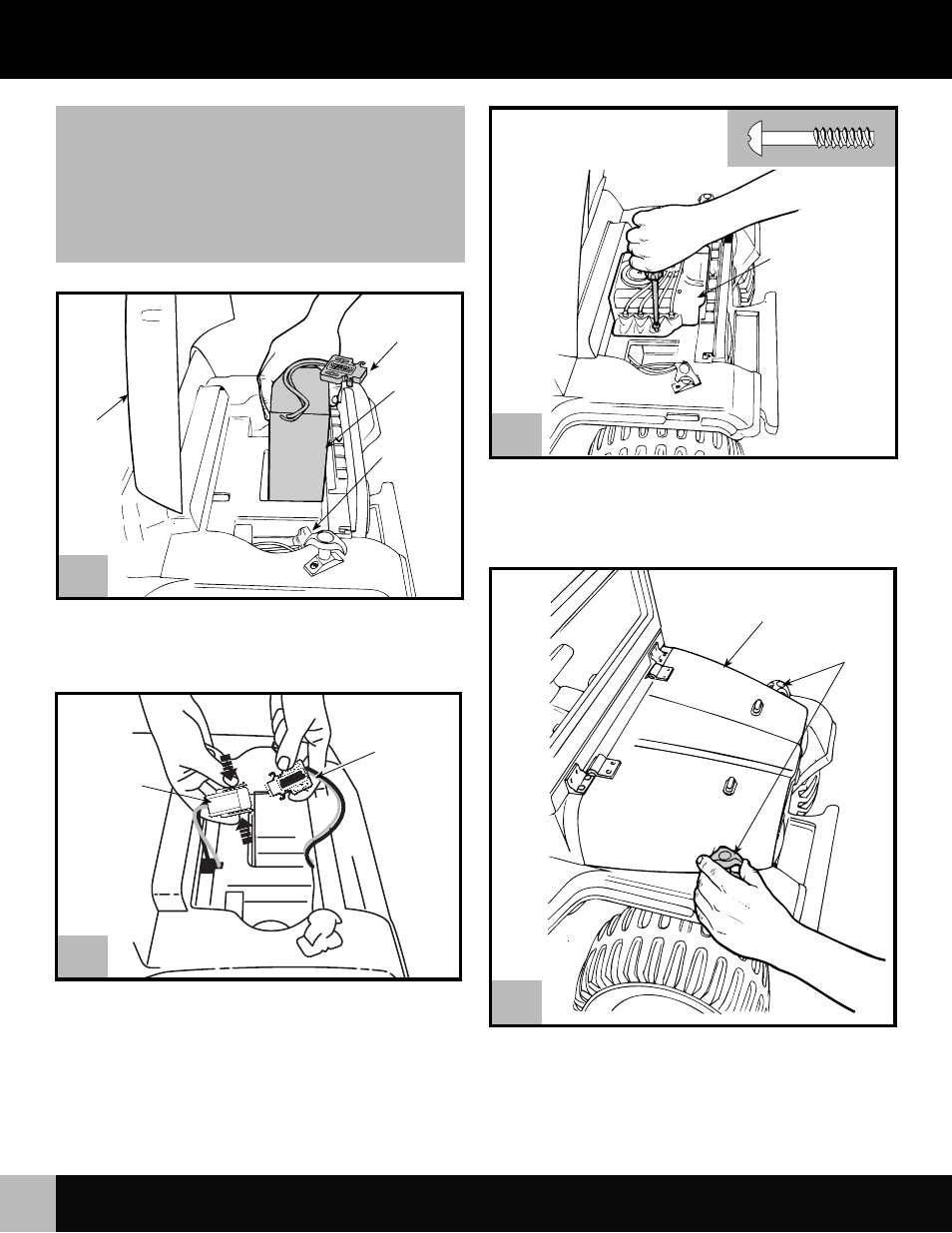

BATTERY INSTALLATION AND BATTERY RETAINER

(ENGINE COVER) ASSEMBLY

M3864pr-0920

®

• Lift the hood.
• Place the battery in the battery compartment. Make sure the battery

connector extends toward the motor harness connector.

Battery

Motor
Harness
Connector

Hood

Battery
Connector

®

• Squeeze the tabs on each side of the motor harness connector. Plug

the battery connector into the motor harness connector.

Note: If the battery connector will not plug into the motor harness
connector, turn it over and try again. Do not force the battery
connector into the motor harness connector.

Motor Harness
Connector

Battery
Connector

• Fit the battery retainer (engine cover) over the battery, motor harness

connector and battery connector.

• Insert two #8 x 18 x 1" screws into the holes in the battery retainer

(engine cover) and tighten.

Battery Retainer
(Engine Cover)

• Lower the hood. Lift the hood latches and fit the short tabs onto the

notches on the hood to fasten it.

Hood

Hood
Latches

IMPORTANT! Use only a Power Wheels

®

Type H 6 Volt battery.

Use of any other battery will damage your vehicle. Make sure that
you charge the battery for at least 18 hours using the enclosed
Power Wheels

®

Type H 6 Volt charger before operating your vehi-

cle for the first time. Charge the battery for at least 14 hours after
each use of the vehicle. Never charge the battery longer than
30 hours. Failure to follow these instructions may damage your
battery and will void your warranty.
