13

ASSEMBLY

M3864pr-0920

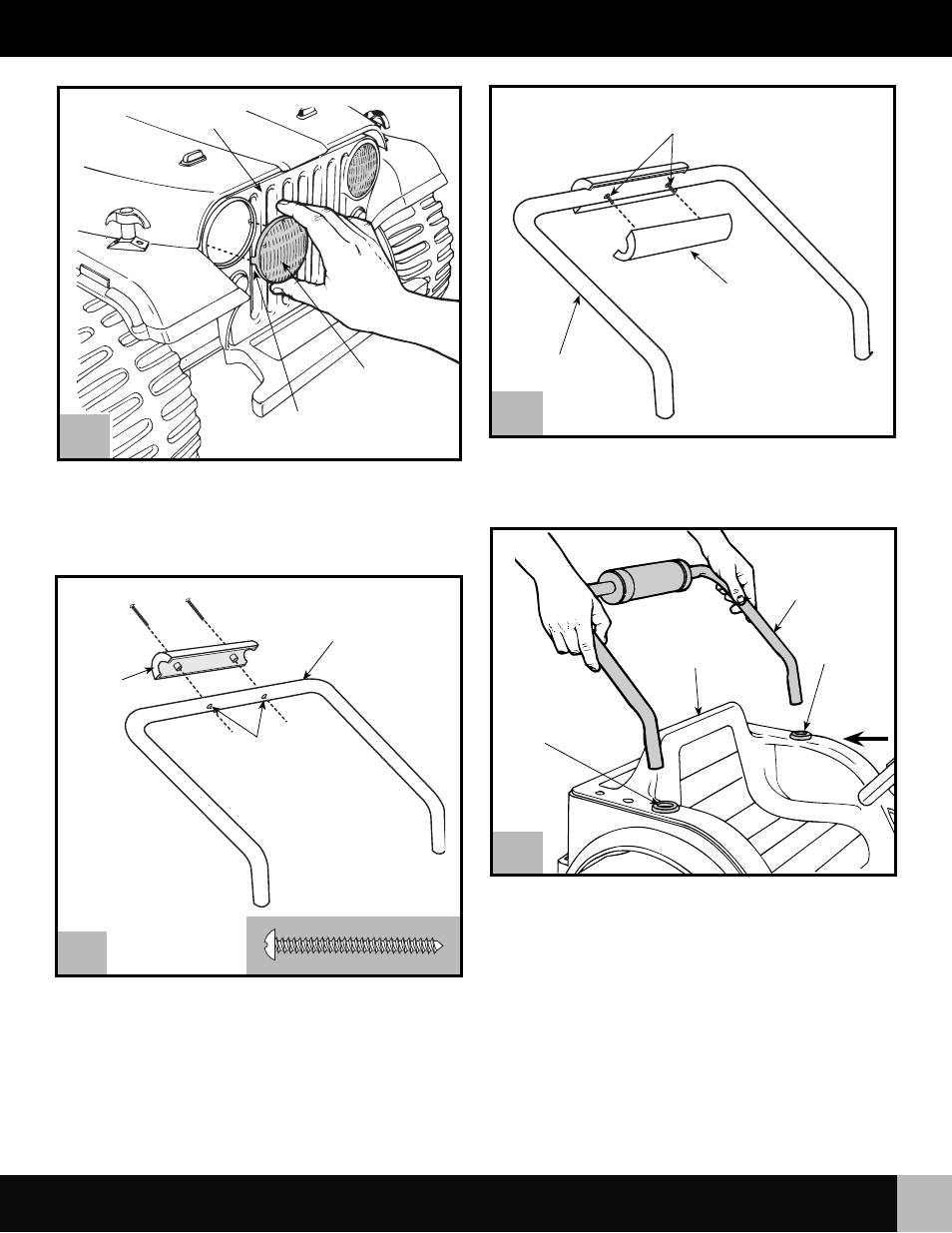

20

• Fit the tab on one side of a headlight lens into the notch in the grille.
• Push firmly to snap the tab on the other side of the headlight lens into

the grille.

• Repeat this procedure to assemble the other headlight lens to the grille.

Headlight
Lens

Tab

Grille

17

• Using safety scissors, separate the sport bar covers. Dispose of the

plastic connector.

• With the ends of the sport bar angled toward you, fit the sport bar

cover marked “BAC” to the sport bar.

• Align the holes in the sport bar with the holes in the sport bar cover.
• Insert two #6 x 1

1

/

2

" screws through the sport bar cover and into the

sport bar, as shown.

Sport Bar
Cover
(BAC)

Sport Bar

Holes

18

• Align the tips of the screws with the holes in the other sport bar cover

marked RON. Fit the two sport bar covers together.

• Tighten the screws.

Sport Bar
Cover
(RON)

Screw Tips

Sport Bar

19

• With the sport bar positioned to angle towards the rear of the vehicle,

fit the ends of the sport bar into the holes in the vehicle on either side
of the seat.

• Press firmly on each side of the sport bar to fit it into the vehicle.

Rear of
Vehicle

Seat

Sport Bar

Hole

Hole
