• High-frequency operation: 100 kHz to 1 MHz
• On-chip timer and latch-type short-circuit detection circuit
• Wide error amplifier input voltage range: -0.2 V to V
CC - 1.8 V
• On-chip high-accuracy reference voltage circuit: 2.50 V
±
1%
• Output circuit
PNP transistor drive output pin: Push-pull type
ON/OFF current values set independently
• On-chip standby function and output control function
• High-density packaging: SSOP-24P

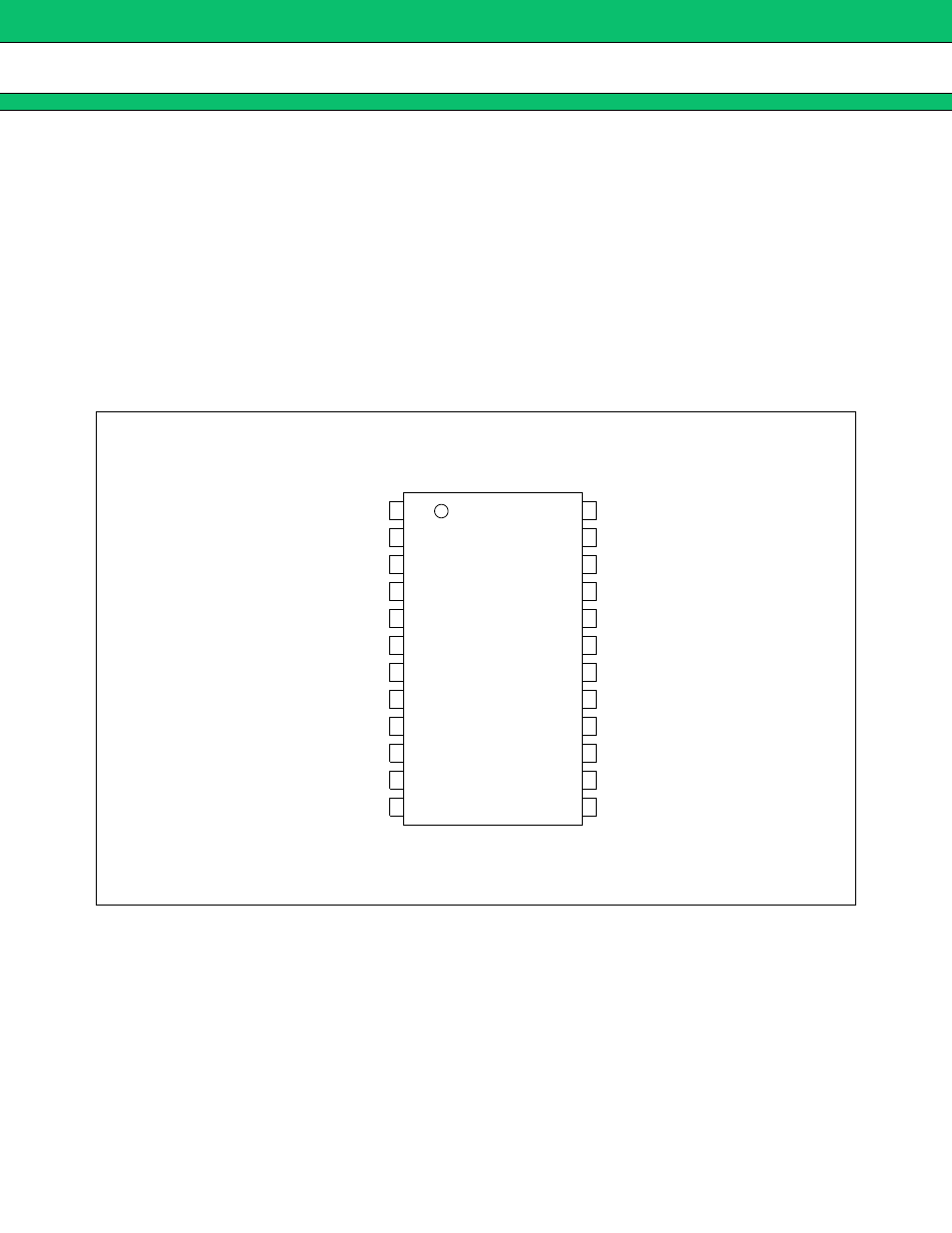

■ ■ ■ ■ PIN ASSIGNMENT
(TOP VIEW)
V CC (out)
OUT1
VE1
Cb1
Ca1
FB1
-IN1(E)
+IN1(E)
-IN1(C)
-IN(PWN)
V CC
V REF
GND
OUT2
VE2
Cb2
Ca2
FB2
-IN2(E)
+IN2(E)
-IN2(C)
SCP
CTL2
CTL1
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
(FPT-24P-M03)
