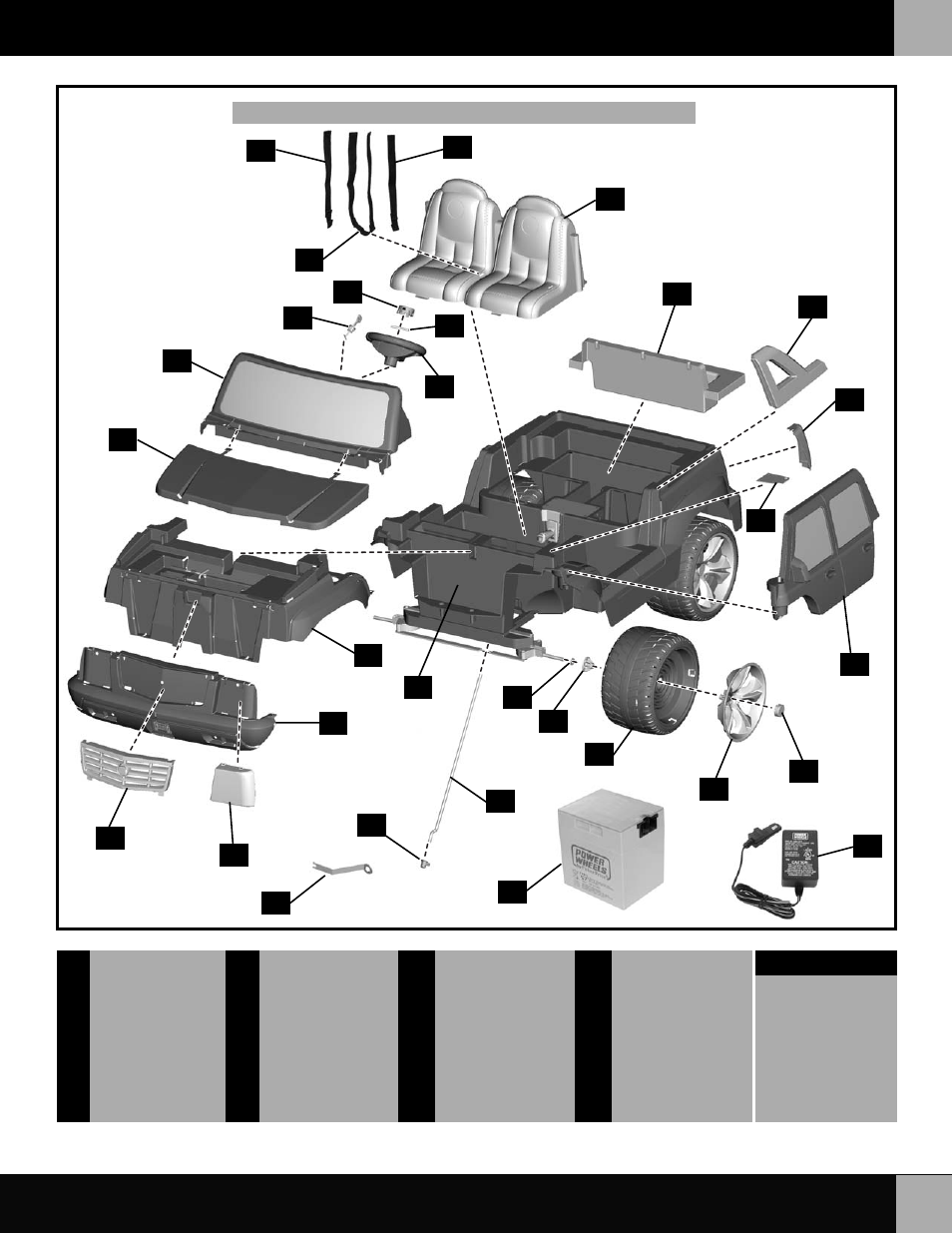

PARTS PICTURE D
H0438pr-0921 7
5
21
25
7
8
15
6
11
19
9
1
16
2
23
13
14
3
4
Note: Some parts shown are assembled on both sides of the vehicle.
17
10
1 Vehicle
2 Front End
3 Bumper
4 Grille
5 Headlights - 2
6 Doors - 2
7 Hood
8 Windshield/Dash
9 Door Plates - 2
10 Seat
11 Short Seat Belts - 2
12 Long Seat Belt
13 Wings - 2
14 Front Wheels - 2
15 Wheel Covers - 2
16 Hubcaps - 2
17 Bushing - 2
18 7 /
16
" Washers - 2
19 Truck Bed
20 Steering Wheel
21 Steering Column
22 Taillight - 2
23 12 Volt Charger
24 12 Volt Battery
3 /
8
"-16 Lock Nuts - 2
1 /
4
" x 1 1 /
4
" Screws - 2
#8 x 3 /
4
" Screws - 37
Label Sheet
Parts Not Shown
22
12
11
24
20
18
26
28
27
25 Key Assembly
26 Assembly Tool
27 Steering Column Cap
28 Steering Wheel Cap
29 5 /
32
" x 1 1 /
2
" Pin - 1
29
