ASSEMBLY F
H0438pr-0921
2
Hint: There is a right and a left front wheel. Place the right wheel
(marked R) on the passenger side of the vehicle, and the left wheel
(marked L) on the driver side of the vehicle.

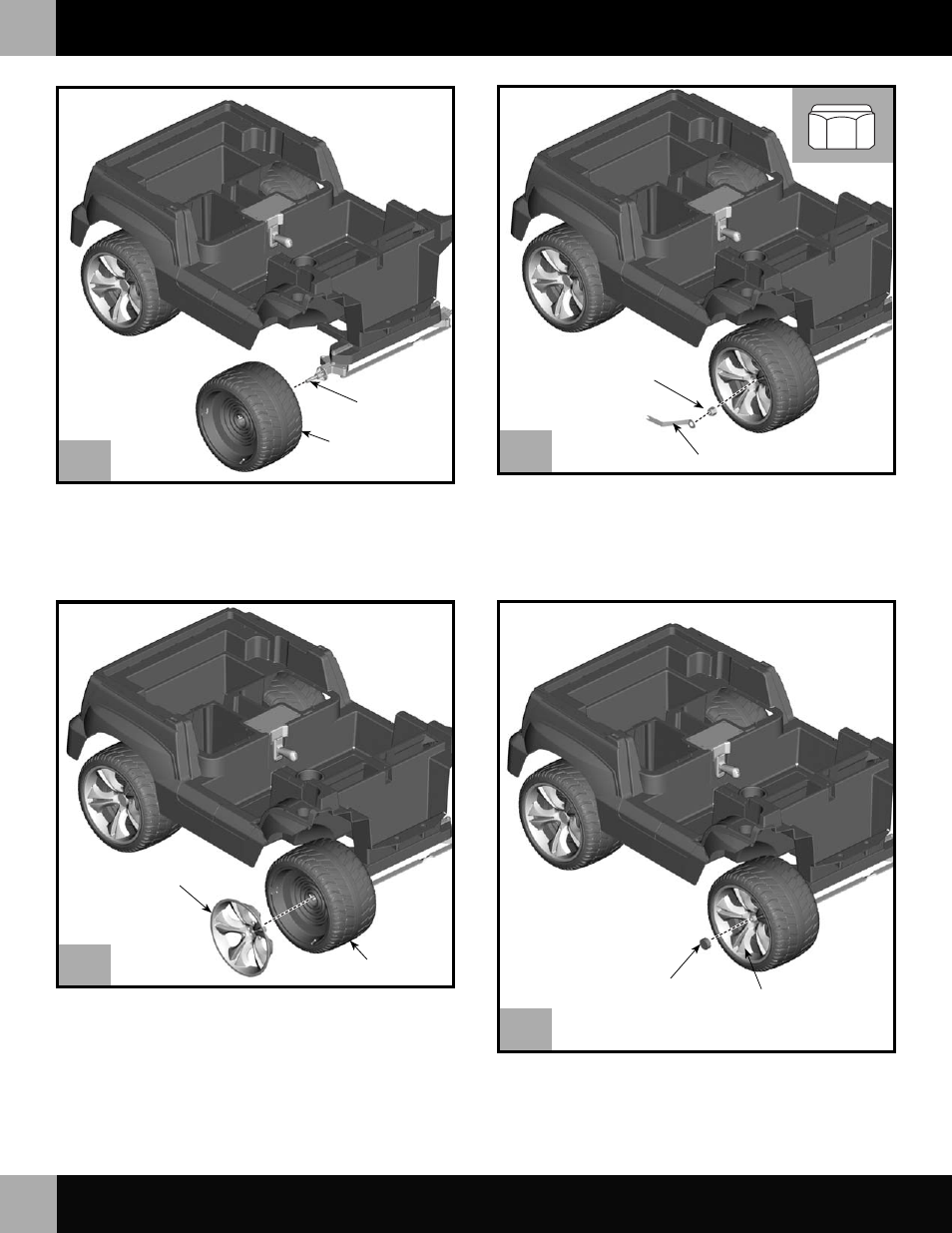

• Place a front wheel onto each front axle.
Front Axle
Front Wheel
3
• Fit a wheel cover onto each front wheel.
Front Wheel
Wheel Cover
4
• Place a 3 / 8 " -16 lock nut (rounded side out) onto a front axle.
IMPORTANT: Tighten the lock nut firmly using the closed end of the
assembly tool.
• Repeat this procedure to fasten the other front wheel assembly with
the other 3 /
8
" -16 lock nut.
3 / 8 " -16 Lock Nut
Assembly Tool
5
• Align the slot in a hubcap with the rib in the wheel cover. "Snap" a
hubcap into the center of each wheel cover.
Wheel
Cover
Hubcap
