14
ASSEMBLY F
H0438pr-0921
18

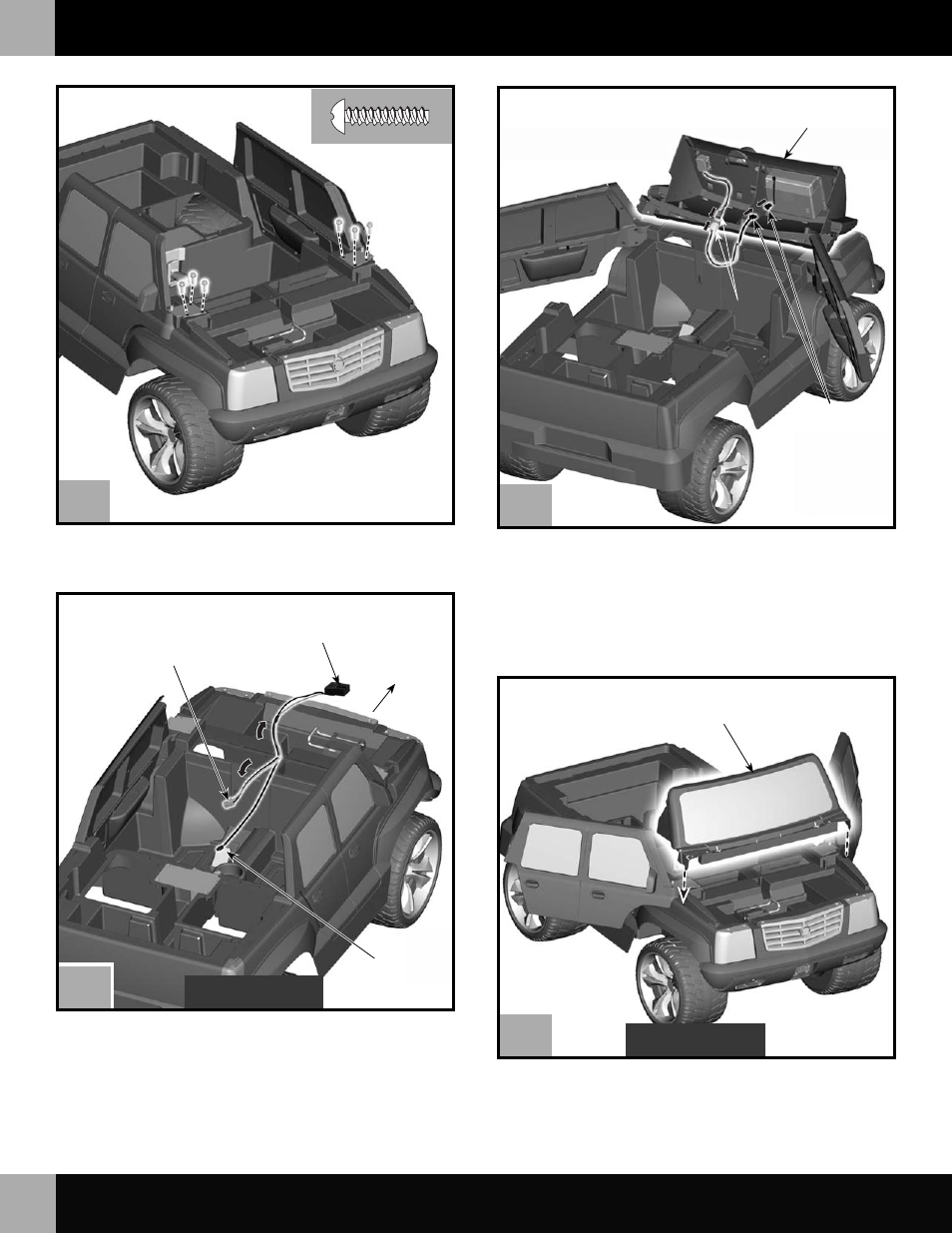

• Insert three #8 x
3
/
4
" screws into each plate and tighten.
19
• Separate the radio and dash connector wires from the motor
harness connector.
• Position the motor harness connector towards the front of the
vehicle and into the battery compartment.
• Position the dash connector and radio connector wires toward the
back of the vehicle.
Motor Harness
Connector
Dash
Connector
20
• Open the doors on the vehicle.
• Place the windshield/dash on top of the front end of the vehicle.
• Plug both dash connectors together.
• Plug both radio connectors together.
Hint: If the connectors do not fit together, do not force them. Simply
turn one of them over and try again!
Radio
Connectors
Dash
Connectors
Windshield/Dash
21
• Fit the tabs on the windshield/dash into the slots in the front end of
the vehicle.
Windshield/
Dash
Front
Radio
Connector
BACK VIEW
FRONT VIEW
