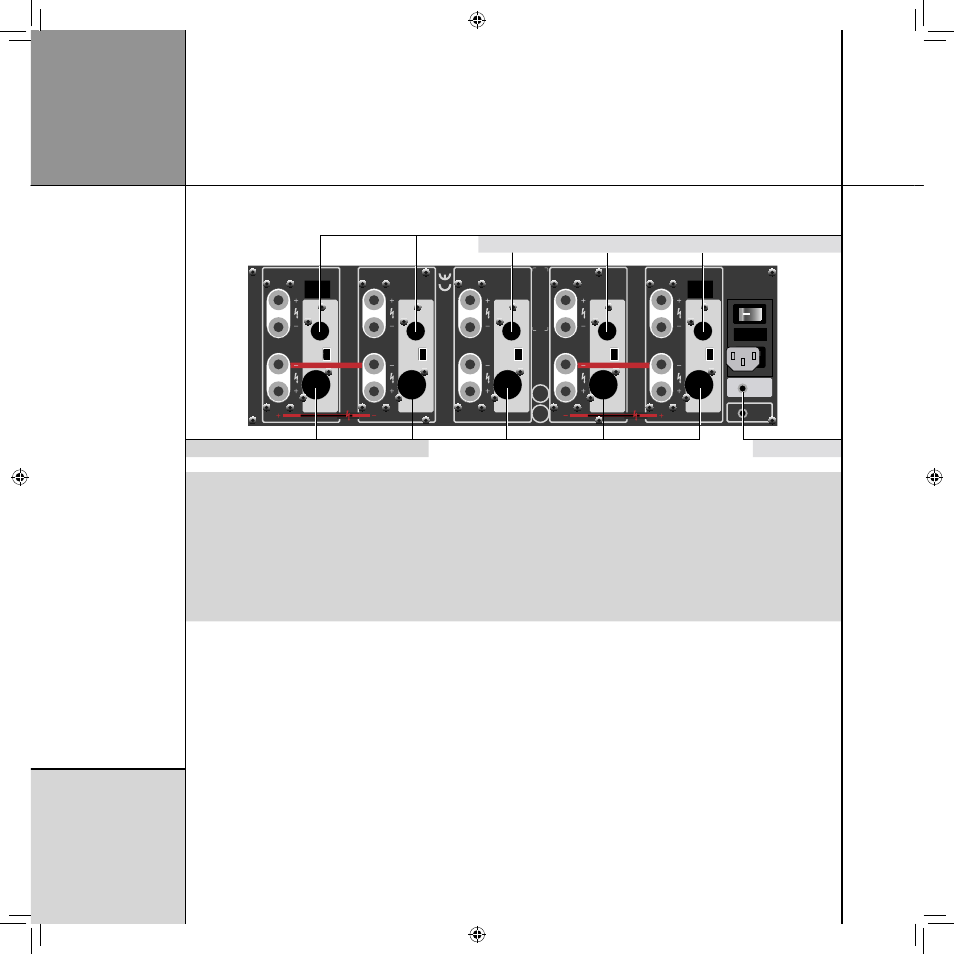

G55 Five-channel Power Amplifier

��

��

��

��

��

�

��

��
��

��

�

��

��

�

��

��

Use this input

To connect to this

UNBALANCED

A preamplifier, using phono connectors and high-quality screened cable.

BALANCED

A balanced analogue output, using XLR connectors:
1 (Green) = GND, 2 (Red) = +ve, 3 (Black) = –ve

TRIGGER INPUT

A mono 3.5mm jack plug input (centre pin hot) that can be supplied with 5-30V AC or DC to bring the power
amplifier out of standby. Can be connected to the trigger output on a G Series control unit or digital surround
controller.

Select the appropriate input using the UNBALANCED/BALANCED switch for each channel.

I n s t a l l i n g

t h e p o w e r

a m p l i f i e r

Inputs
