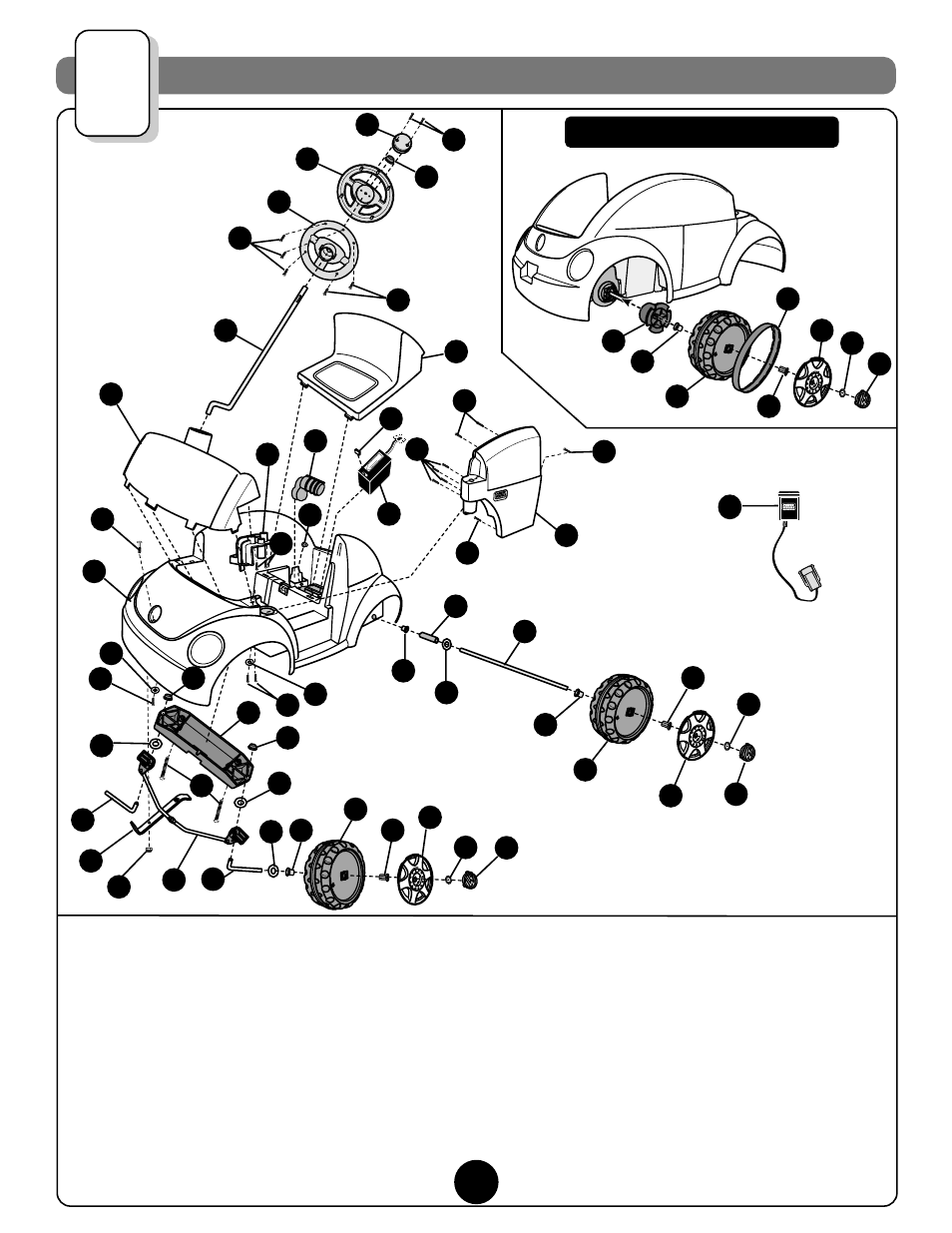

Parts Diagram
D
22
22
22
20
20
20
21
27
6
26
28
36
2
3
1
14
4
10
16
16
17
18
18
18
5
8
15
15
31
31
32
17
29
33
8
12
11
23
22
22
22
20
34
37
18
22
23
35
25
13
19
9
4
24
24
26
Note: Some parts shown are assembled
on both sides of the vehicle.
1.
Vehicle Body
2.
Seat
3.
Door
4.
Wheel - 4
5.
Rear Axle
6.
Windshield
7.
Driver
8.
Front Axle - 2
9.
Steering Linkage Cover
10.
Steering Linkage
11.
Steering Wheel Top
12.
Steering Wheel Bottom
13.
Steering Wheel Cap
14.
Steering Column
15.
Hubcap - 4
16.
Hubcap Cover - 4
17.
Hex Bushing - 4
18.
Round Bushing - 6
19.
Spacer
20.
Large Washer - 5
21.
1
/
4
" x 1
1
/
2
" Screw - 2
22.
#8 x
3
/
4
" Screw - 13
23.
#6 x
1
/
2
" Screw - 5
24.
.437 White Cap Nut - 2
25.
.354 Black Cap Nut
26.
Lock Washer - 4
27.
6 Volt Charger
28.
6 Volt Battery
29.
Steering Bracket
30.
Traction Band
31.
Small Washer - 2
32.
#10 x
3
/
4
" Trusshead Screw
33.
#10 Locknut
34.
Windshield Hinge
35.
#6 x 1" Screw - 2
36.
25 Amp Fuse
37.
Gearbox
Not Shown - Label Sheet - 2
15
7
18
16
26
30
4
17
Right Rear Wheel Assembly
