Assembly
IMPORTANT! Please carefully read the owner’s information
in this manual and teach your child about proper vehicle
operation and rules for safe driving before allowing operation
of this vehicle.
• Insert the seat front tabs into the slots inside the
vehicle body.
• Then, insert the lock fastener tabs on the back of the seat
into the slots in the vehicle body.
• Using a slotted screwdriver, turn each lock fastener 1 /
4
turn
to the locked position.
IMPORTANT! Remember to keep the lock fasteners locked
at all times to prevent children from accessing the
vehicle battery compartment.
Assembly is now complete.
• Turn the vehicle body upright.
• Fit the steering wheel cap into the center of the
steering wheel.
• Insert two #6 x 1" screws through the steering wheel cap
and into the steering wheel.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
41
Locked Unlocked
• Insert a #10 x 3 /
4
" trusshead screw
through the front end of the vehicle
body and through the hole in
the bracket.
• Attach a lock nut to the end of the screw.
• While holding the locknut in place with an adjustable
wrench, tighten the screw with a Phillips screwdriver.
Do not over-tighten.
39
40
Bracket
Hole
#10 x 3 /
4
"
Trusshead
Screw
21

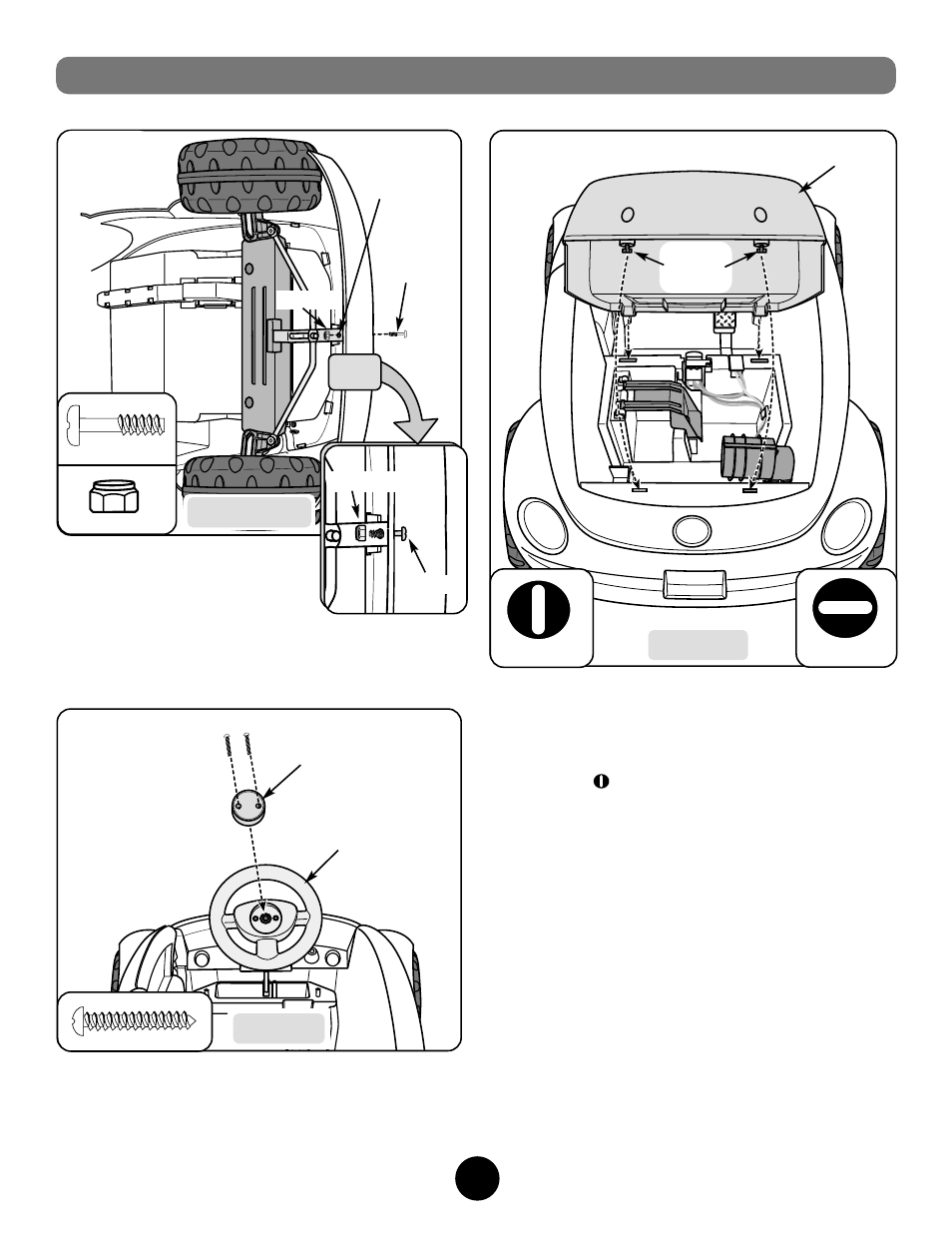

Steering Wheel Cap
Steering
Wheel
Seat
Lock
Fastener
Tabs
Lock Nut
Screw
Rear View
Top View
Bottom View
See
Inset
Lock Nut
