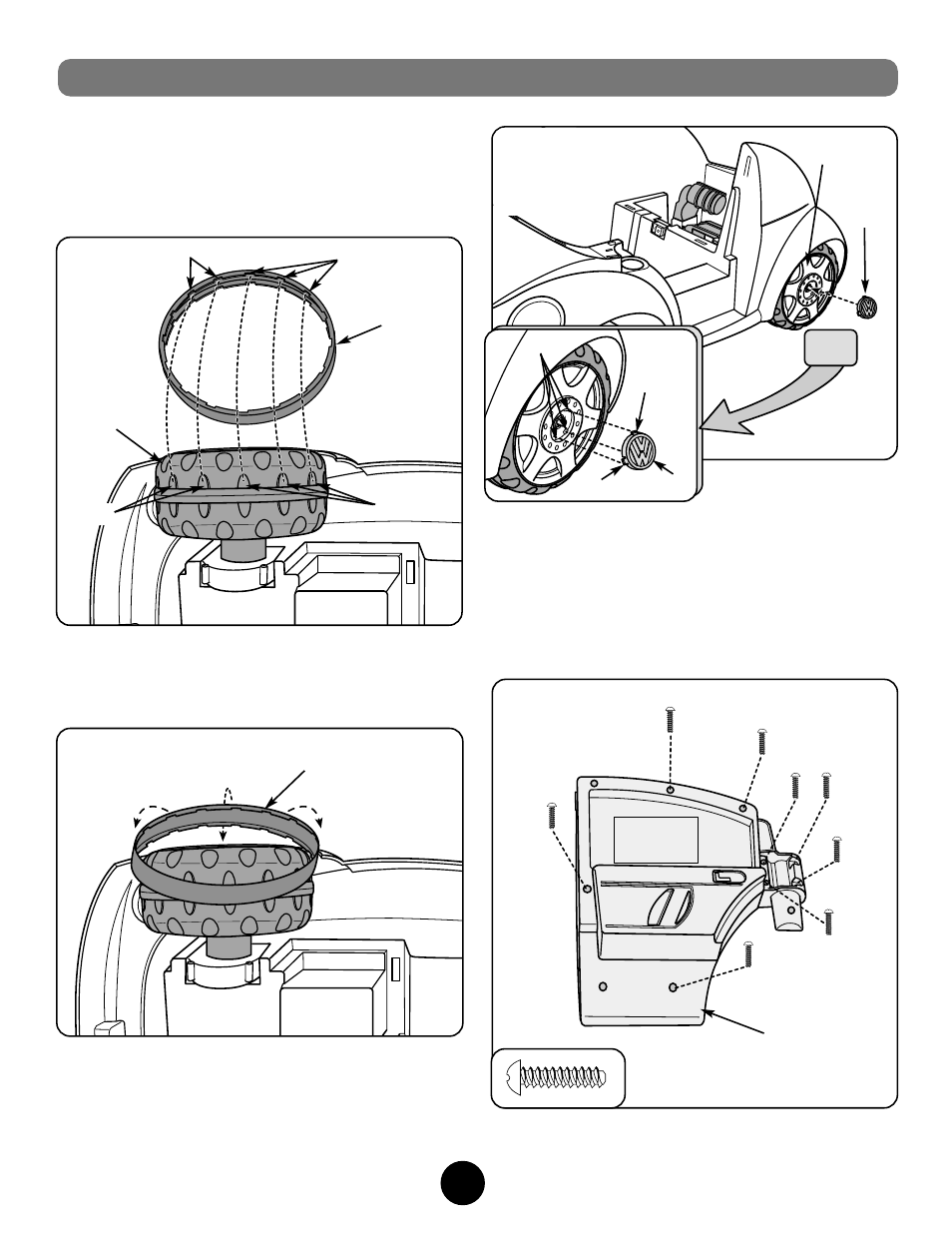

Assembly
• Insert eight #8 x 3 /
4
" screws into the door, as shown.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
• Turn the vehicle body
upright (or keep it on its side).
• Insert one of the tabs on the hubcap cover into a slot in
the hubcap.
• Then, push with your fingernail (or carefully with a
slotted screwdriver), the other two hubcap cover tabs into
the slots in the hubcap.
• Repeat this procedure to assemble another hubcap cover
to the other hubcap.
14
14
Hubcap
Door
Hubcap
Cover
Tab
Tab
Slots
See
Inset
• Fit the assembly tool (with lock washer in it) onto the end of
the rear axle.
• Tap the assembly tool with a hammer to secure the lock
washer on the end of the rear axle.
• Pull the wheel up to be sure it is secure on the rear axle.
• Slide the other side of the traction band around the wheel.
13
• Fit the notches on the inside of a traction band to the ridges
on a wheel, as shown.
Hint: Soak the traction band in hot water for about two
minutes to soften it.
12
Traction
Band
Wheel
Ridges
Ridges
Notches
Notches
Traction Band
Tab
