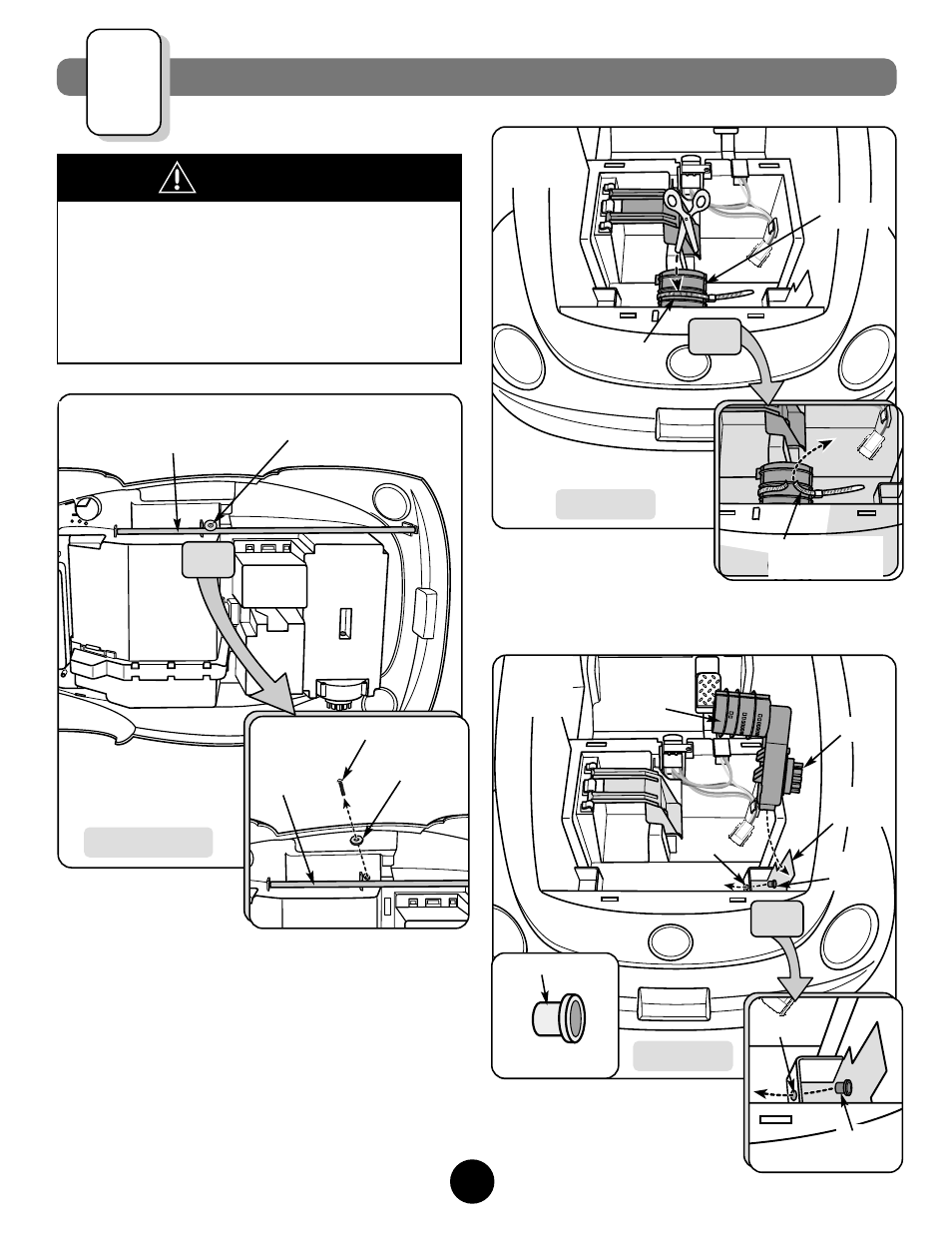

• Turn the vehicle body upright.
• Using safety scissors, cut the
plastic retainer holding the gearbox in place.
• Throw away the plastic retainer.
2
• Turn the vehicle body
over so the bottom is
facing you.
• Loosen and remove the screw and washer holding the rear
axle in place. Remove the rear axle. Set the rear axle aside
for assembly step 4.
• Throw away the screw and washer. They are not
needed for assembly.
Bottom View
Rear View
1
Assembly
F
Children can be harmed by small parts,
sharp edges and sharp points in the
vehicle’s unassembled state, or by electrical
items. Care should be taken in unpacking
and assembly of the vehicle. Children
should not handle parts, including the
battery, or help in assembly of the vehicle.
WARNING
Rear Axle
Rear
Axle
Screw
Screw and Washer
Washer
Plastic
Retainer
Gearbox
Cut and Remove
Plastic Retainer
• Fit a round bushing, barrel side first,
into the hole inside the battery
compartment.
• Position the gearbox with the teeth
outward. Fit the gearbox through the
large opening in the side of the battery compartment.
3
Rear View
See
Inset
See
Inset
Round Bushing
Barrel Side
Hole
Round
Bushing
See
Inset
Gearbox
Hole
Round
Bushing
Large
Opening
Teeth
