7-1
7. INSTALLATION
7.1 Facsimile Receiver
The facsimile receiver may be mounted on the deck or a bulkhead. When
selecting a mounting location, keep in mind the following points:
• Locate the unit out of direct sunlight because of heat that can build up inside
the cabinet.
• Select a location where the connectors can be easily accessed.
• Leave sufficient space around the unit for servicing and maintenance. See the
outline drawing for recommended servicing space.
• For mounting on a bulkhead, be sure the mounting location is strong enough
to support the weight of the unit.
• Locate the unit away from areas subject to water splash and rain.
• A magnetic compass will be disturbed if the FAX-30 is placed too close to it.
Separate the FAX-30 from a magnetic compass by the distances below to
prevent interference to a magnetic compass.
Steering compass, 0.9 m, Standard compass, 0.6 m.
• Fix the receiver to the mounting location with four 5 X 20 tapping screws
(supplied).
300
210
150
285

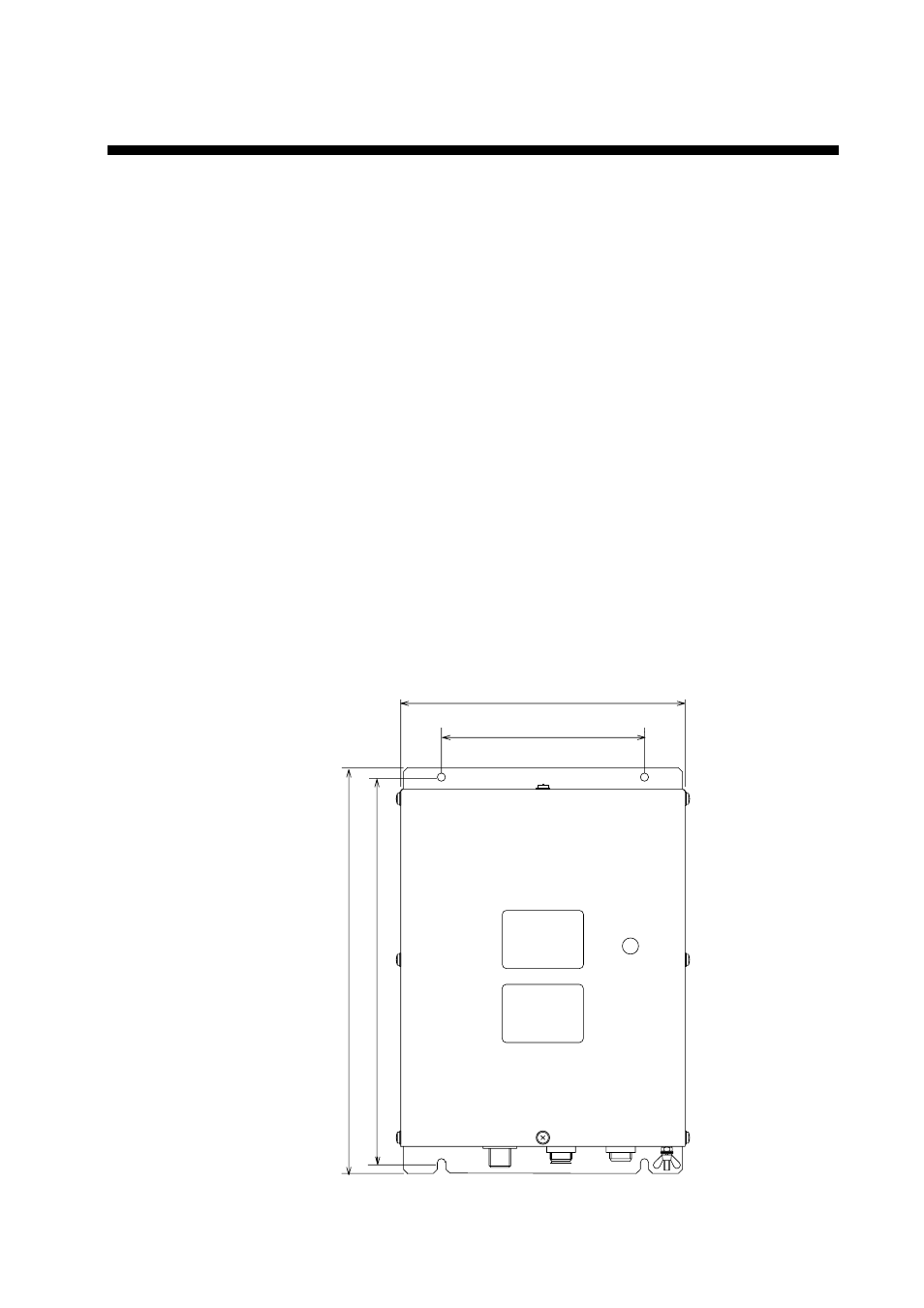

Mounting dimensions of facsimile receiver FAX-30
