3. FAX OPERATION: PC
3-5
3.3 Displaying Facsimile Images

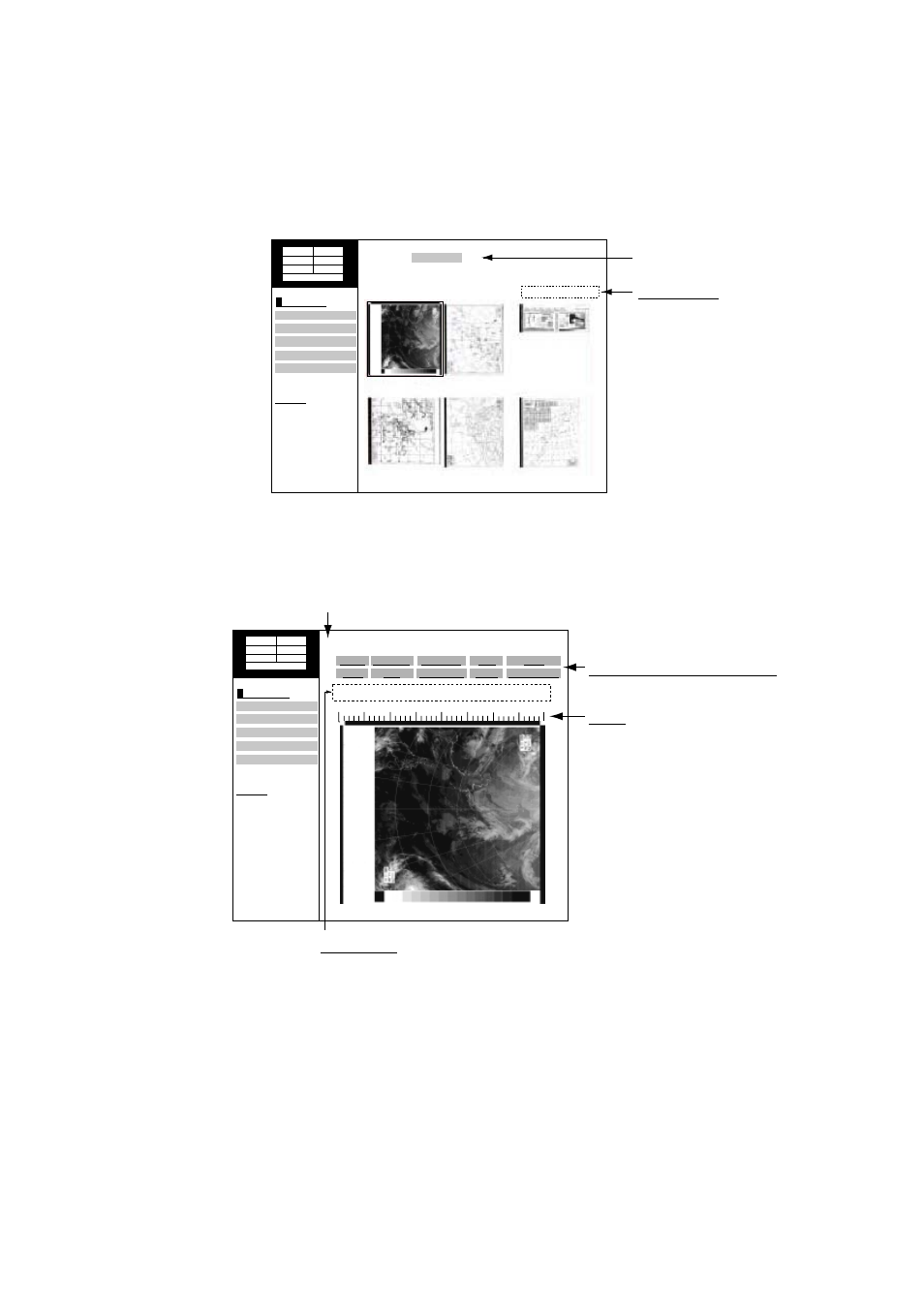

1. Show the facsimile standby display. Thumbnails of images received are
shown on the display. The equipment stores as many as 12 images, on two
pages. When the image storage capacity is exceeded, the oldest image is
automatically deleted to make room for the latest.
MENU
CHANNEL SETUP
EDIT STATION LIST
<< Top
SYSTEM SETUP
RX MODE
TIMER SETUP
Receive data
Station, date and
time image received JMH JUN/04 02:46 JMH JUN/05 01:29 JMH JUN/05 01:32
JMH JUN/05 03:46 JMH JUN/05 04:29 JMH JUN/05 05:21
100N 3625.kHz
IOCXX10 XXXrpm
SS=XXX SN=XX
STBY
NEXT PAGE 1/2
Click NEXT PAGE to
go to next page.
Facsimile standby display
2. Click desired image.
MENU
CHANNEL SETUP
EDIT STATION LIST
<< Top
SYSTEM SETUP
RX MODE
TIMER SETUP
100N 3625.kHz
IOCXX10 XXXrpm
SS=XXX SN=XX
STBY
0 10 20 30 4 0
102N JMH 7305.0kHz IOC576 120rpm JUN/05 01:26
Scale
Used for phase tuning.
See para. 3.4.1.
<
ROTATE CCW
NOISE REJECT
ZOOM IN
PHASE
ROTATE CW
SYNC
LOCK
COLOR
ERASE
REVERSE IMAGE
Click to return to thumbnails display.
Image processing functions
Click to execute. See para. 3.4.
Image data
102N:
Zone
JMH: Station
7305.0 kHz: Channel
IOC576:
Index of Cooperation
120 rpm: Drum speed at fax station
JUN/05: Date received
01:26: Time received
Facsimile image
Note:
If the FAX-30 is not accessed from the PC after it has been turned on,
time data is not sent to the FAX-30. The timer recording feature may
receive a facsimile image using incorrect time data, however the image
may not be correctly stored.
