Assembly
40
Taillight
Lens
Taillight Housing
Rear Bumper Light Plate
38

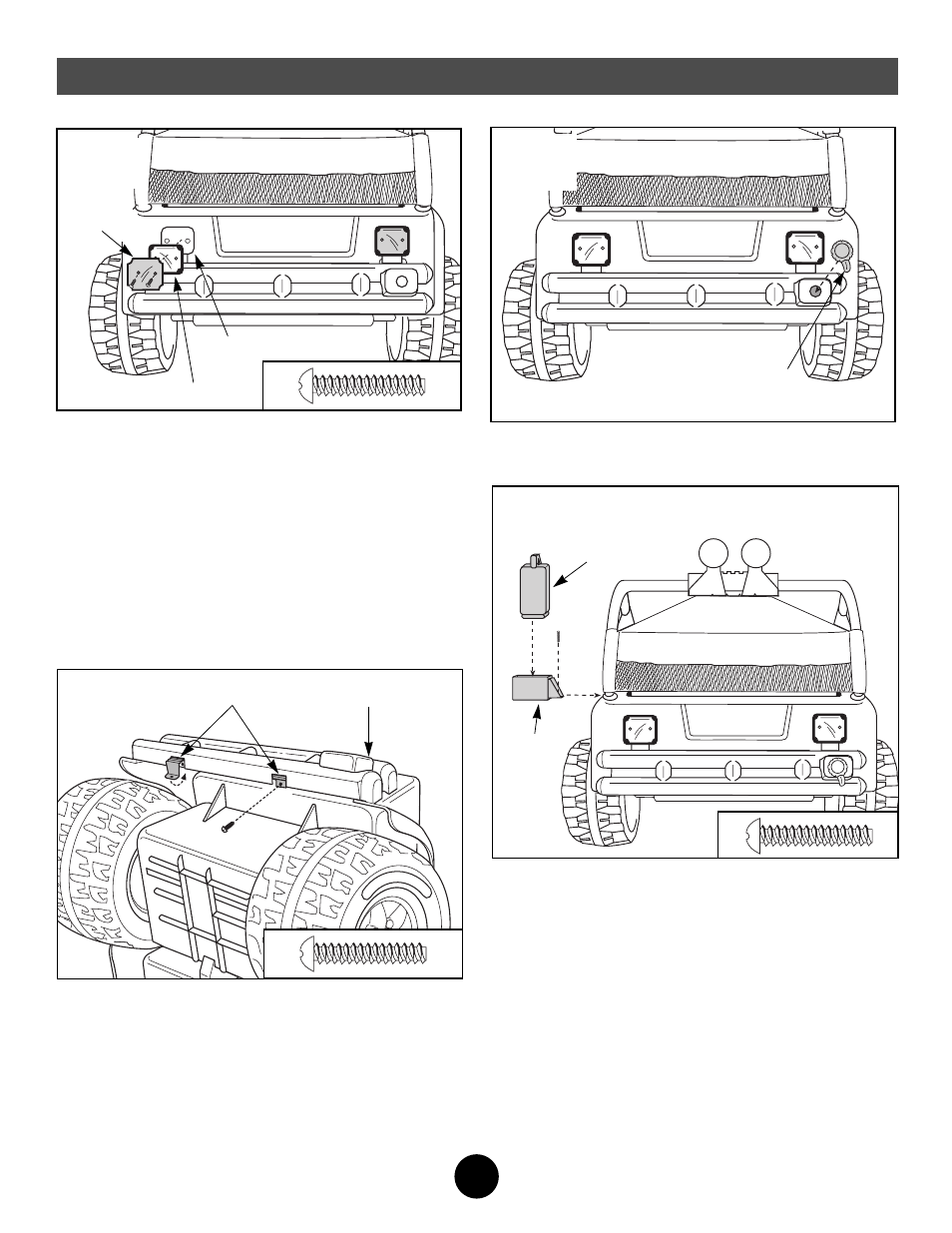

• Lift the rear of the vehicle.
• Align the holes in the bumper tabs with the screw pegs on
the underside of the vehicle body.
• Insert two #8 x 1" screws through the bumper tabs and
into the vehicle body.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
• Lower the rear of the vehicle.
Gas Cap
Tether
Bumper Tabs Bumper
• Position the gas cap so that its tether points down.
• Snap the gas cap into the opening on the rear bumper.
Water Jug
Water
Jug
Holder
• Align the screw hole in the water jug holder with the
screw hole near the canopy on the left (driver) side of the
vehicle body.
• Insert a #8 x 1” screw through the water jug holder and
into the vehicle body.
• Tighten the screw with a Phillips screwdriver. Do not
over-tighten.
• Place the water jug in the water jug holder.
Note: Before use, thoroughly wash all parts that may
contact food. Water jug is not dishwasher safe. Hand wash
the water jug in warm soapy water. Rinse with clean water.
• Using safety scissors, remove the taillight lenses and
the taillight housings from the plastic connectors.
Dispose of the plastic connectors.
• Face the rear of the vehicle.
• Fit a taillight lens inside a taillight housing.
• Position the taillight housing with lens against a rear
bumper light plate with the screw holes aligned.
• Insert two #8 x 1" screws through the taillight lens, rear
bumper light plate housing and into the vehicle body.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
• Repeat this procedure to attach the other taillight.
