32
30
31

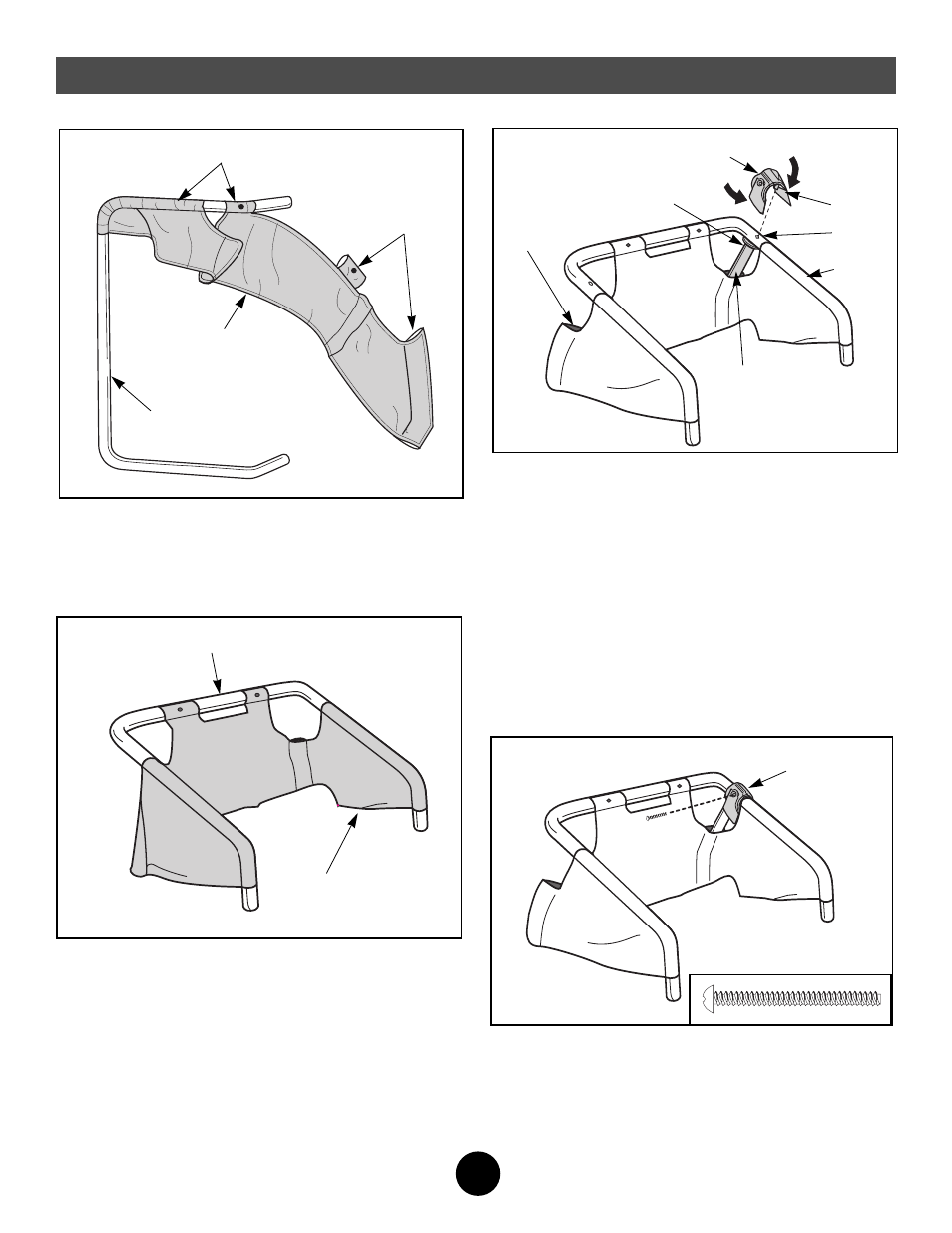

• Extend the canopy completely around the sport bar.
Sport Bar
Canopy
• Using safety scissors, remove the sport bar brackets from
the plastic connector. Dispose of the plastic connector.
• Position the sport bar upright.
• Fit a sport bar support through a tunnel in a rear corner
of the canopy. Make sure the ring end of the sport bar
support is positioned toward the sport bar.
• Position a sport bar bracket above one of the sport bar
side legs, as shown.
• Insert the tab on the inside of the sport bar bracket into
the hole in the sport bar side leg.
• Fit the ring on the sport bar support against the end of
the sport bar bracket.
• Fold the sport bar bracket over the sport bar to close it
around the sport bar and sport bar support.
Sport Bar Bracket
Tunnel
Sport Bar
Support
Tab
Ring
Hole
Side
Leg
• Insert a #6 x 1 1 /
2
" screw into the sport bar bracket.
• Tighten the screw with a Phillips screwdriver. Do not
over-tighten.
• Repeat steps 31 and 32 to attach the other sport bar
support to the other sport bar side leg.
Sport Bar
Bracket
Assembly
19
29
Sport Bar
Canopy
Canopy Sleeves
Canopy
Sleeves
• Position the sport bar on its side so that the sport bar
ends curve away from you.
• Position the canopy opposite the sport bar with the
netting facing away from you.
• Slide the four canopy sleeves onto the sport bar.
