Furuno Network Sounder DFF3 - Manual (Page 19)

12
2. WIRING

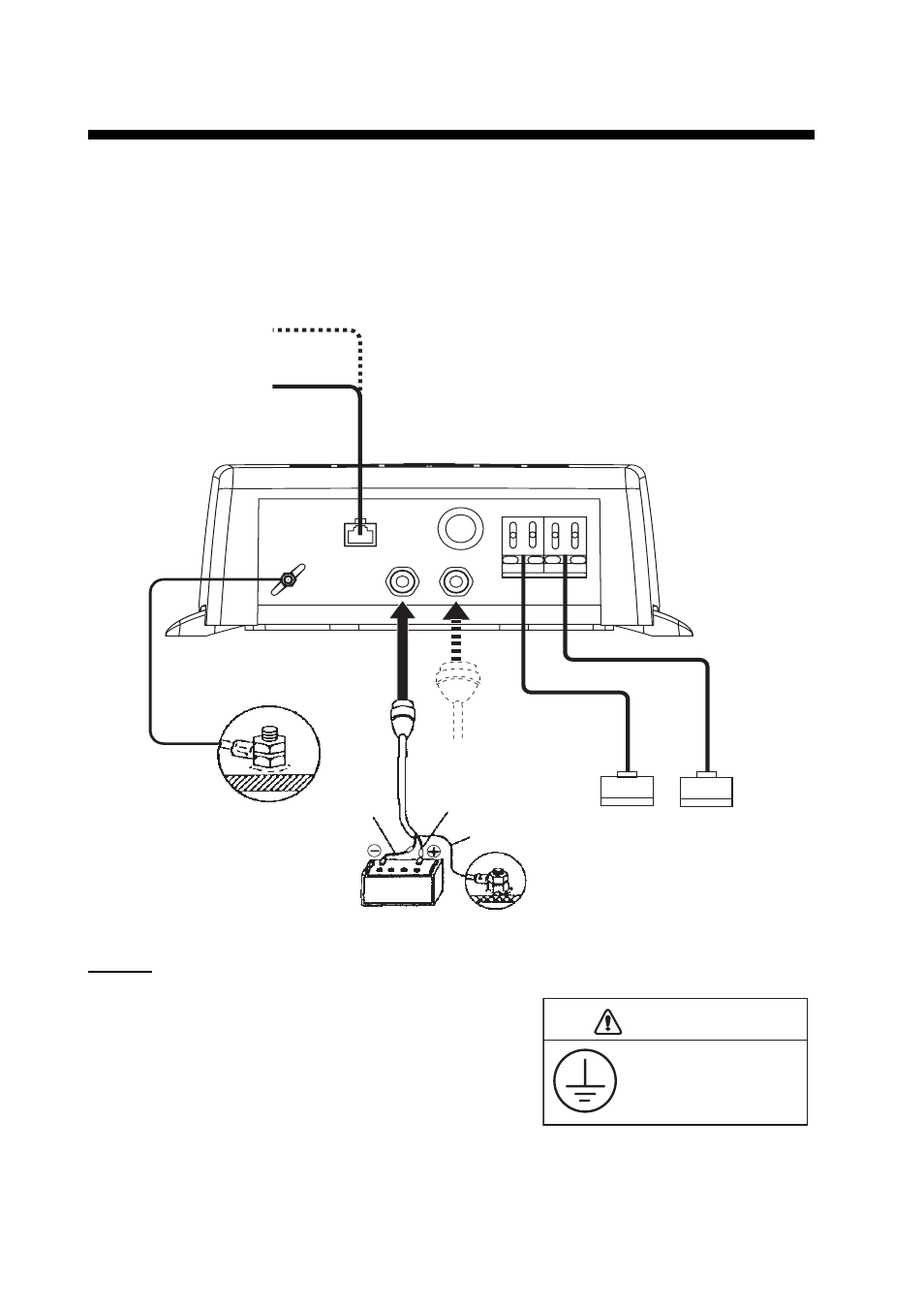

2.1 Wiring Outline
Connect the power cable, transducer cables, sensor cable, network cable and ground wire to their
respective locations on the network sounder. See the next page for how to connect the transducer
cables.
Ground
Connect a ground wire (IV-2 sq, local supply) between the
ground terminal and ship’s ground to prevent interference to
the sounder picture. Make the length of the wire as short as
possible. For FRP vessels, install a ground plate that mea-
sures about 20 cm by 30 cm on the outside of the hull bot-
tom and connect the ground wire there.
GROUND
MOD-Z072 Cable
- Standard: 5 m
- Option: 2 m, 10 m
DFF3
Ground wire
(IV-2 sq)
BATTERY
White Black
Shield (green)
12 - 24 VDC
MJ-A3SPF0013-035C
(3.5 m)
High Freq.
Transducer
Low Freq.
Transducer
NavNet 3D
or HUB-101
NavNet
or HUB-100
MJ-A6SPF0017 cable
(1/5/10/20/30 m)
Temperature or
Speed/Temperature
Sensor
NETWORK
12-24VDC
2.8-1.4A TEMP
H TRANSDUCER L
Ground the equipment
to prevent mutual
interference.
CAUTION
