Faria Instruments PILOT IS0152 - Manual (Page 21)

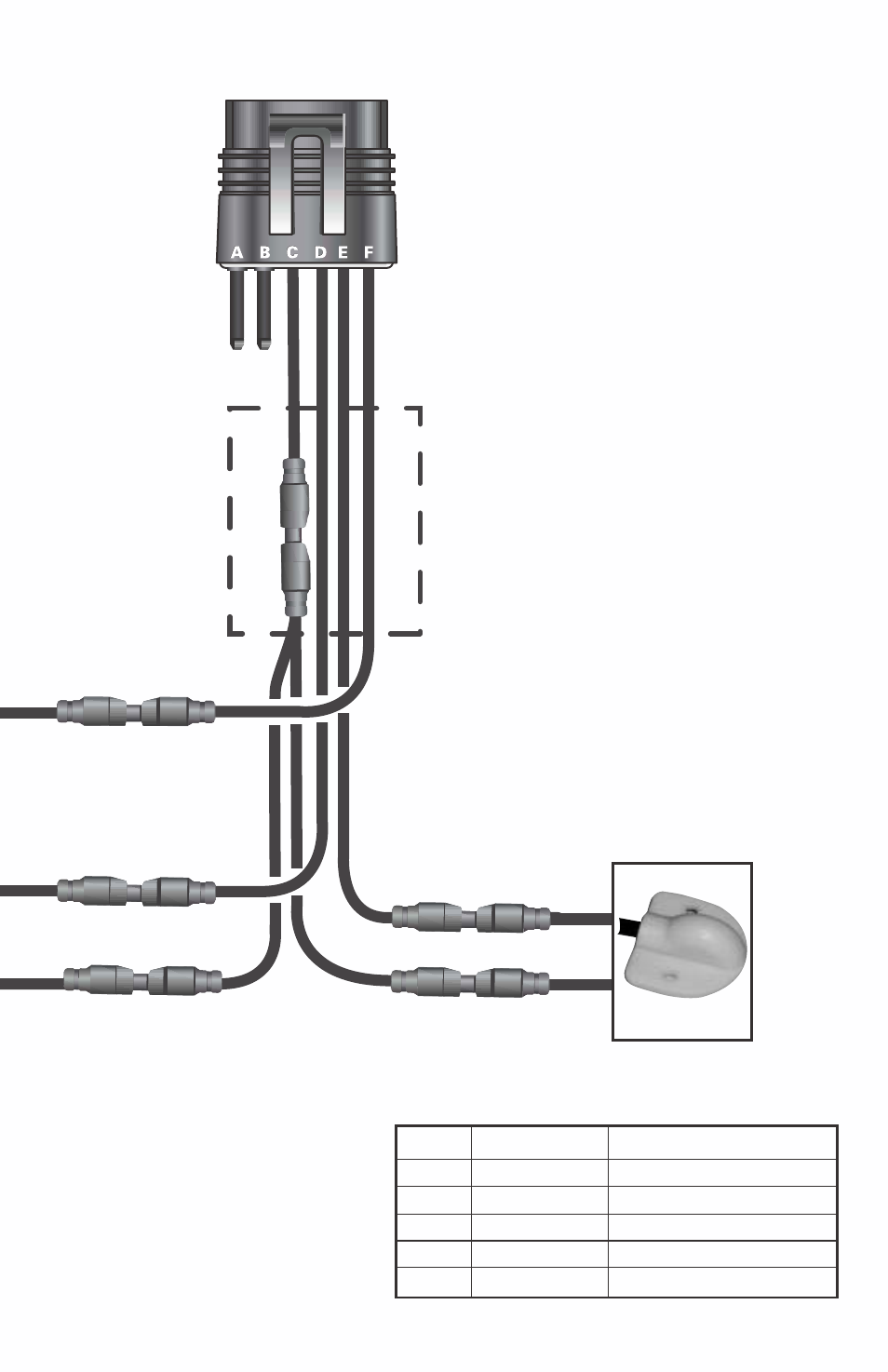

Harness HN0365
6 - pin connector
To Pilot I
Shrink Tubing
or Wrap
Water Temp. Sensor signal
Tan/Blue
Stripe
White
Green
Tan/White
Stripe
White
Brown Black
Black Black
White/Blue
Stripe
6- pin connector
(CN0083)
Pin A Plug Not used
Pin B Plug Not used
Pin C Black Sensor Ground
Pin D Tan/White Water Temperature
Pin E Tan/ Blue Air Temperature
Pin F White/Blue Speedo Sensor
Air Temp.Sensor
2x PJ0005
ECR 2152 03/07/02
(Paddle Wheel Signal)
(Grnd)
(Wt Temp Grnd)
