Faria Instruments PILOT IS0152 - Manual (Page 19)

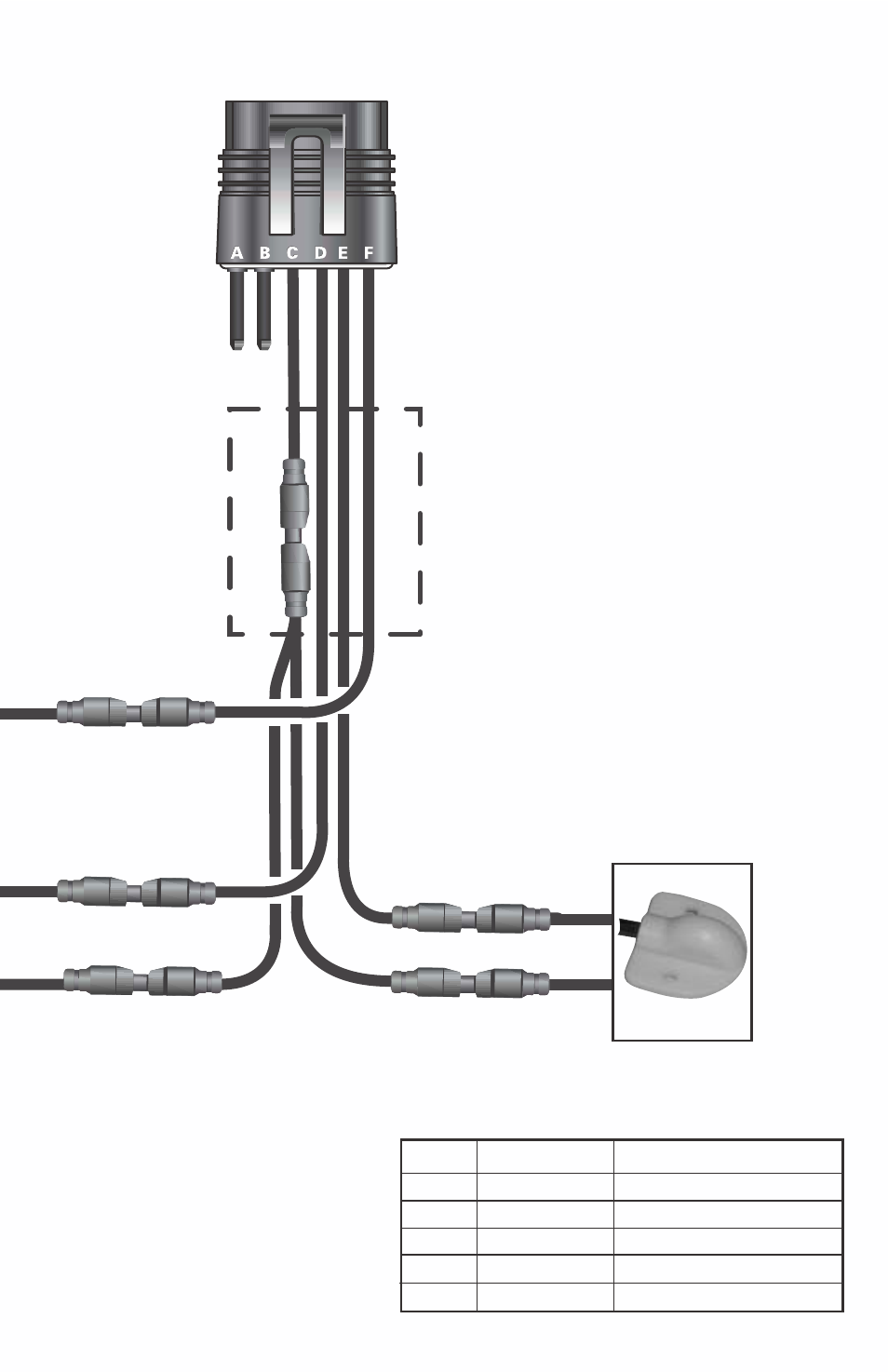

Harness HN0362
6 - pin connector
Yamaha adaptor
Red
Green
Green
6- pin connector
(CN0083)
Pin A Plug Not used
Pin B Plug Not used
Pin C Green Sensor Ground
Pin D White Water Temperature
Pin E Red Air Temperature
Pin F White/Blue Speedo Sensor
ECR 2065 2/12/02
To Pilot I
Shrink Tubing
or Wrap
Water Temp. Sensor signal
White
Green
White White
Brown
Black
White/Blue
Stripe
Air Temp.Sensor
2x PJ0005
(Paddle Wheel Signal)
(Grnd)
(Wt Temp Grnd)
