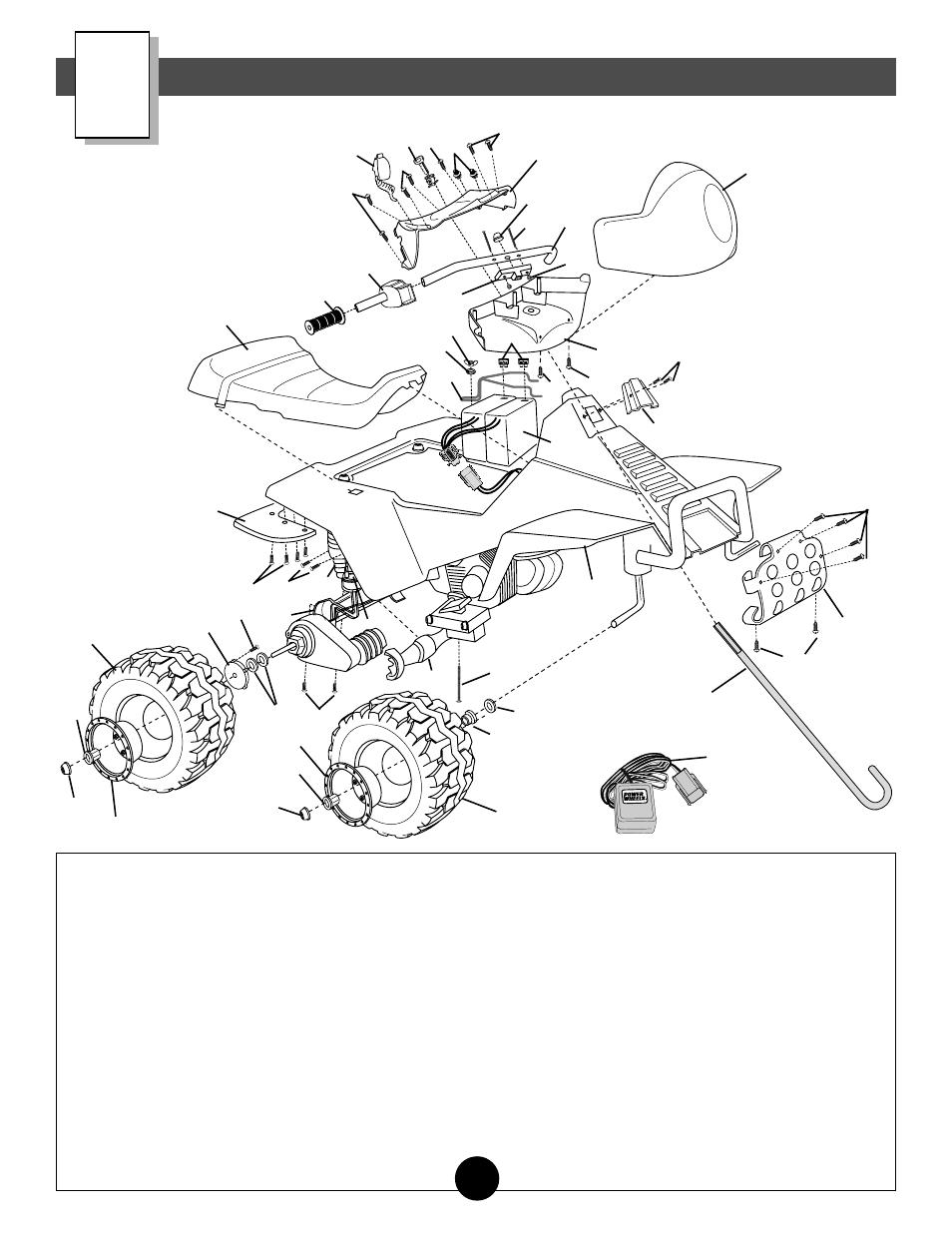

Parts Diagram
D
7
1. Vehicle Body
2. Steering Column
3. Driver - 2
4. Wheel - 4
5. Hubcap - 4
6. Right Mudflap
7. Small Shock Half - 2
8. Large Shock Half - 2
9. Seat
10. 6 Volt Battery - 2
11. Battery Retainer
12. 12 Volt Charger
13. Brushguard
14. Rear Axle Cover - Short Half
15. Rear Axle Cover - Long Half
16. Key Assembly
17. Microphone
18. Radio Knob - 2
19. Right Hand Grip
20. Handlebar Housing - Top Half
21. Cover Plate
22. Front Fairing
23. Handlebar Housing -
Bottom Half
24. Handlebar
25. Sound Box
26. Handlebar Neck
27. Cap Nut - 5
28. Hex Bushing - 4
29. Round Bushing - 2
®
12
13
14
38
15
18
16
22
17
19
21
2
1
3
40
4
4
5
5
6
7
8
9
10
11
23
24
29
31
37
32
33
33
34
34
35
35
36 36
39
27 27
30. Lock Nut - 2
31. Wing Nut
32. 30 Amp Fuse - 2
33. #8 x 3 /
4
" Screw (black) - 15
34. #6 x 1 /
2
" Screw (black) - 8
35. #8 x 1 /
2
" Screw (blunt silver) - 10
36. 7 /
16
" (large) Washer - 6
37. #10 (small) Washer
38. #10 x 4" Carriage Bolt
39. 1 1 /
2
" Screw - 2
40. #10 x 1 /
2
" Screw (pointed silver) - 2
Not Shown
Label Sheet
Left Mudflap
Left Hand Grip
28
28
27
12-VOLT
CHARGER
30
26
25
20
33
33
33
33
33
33
