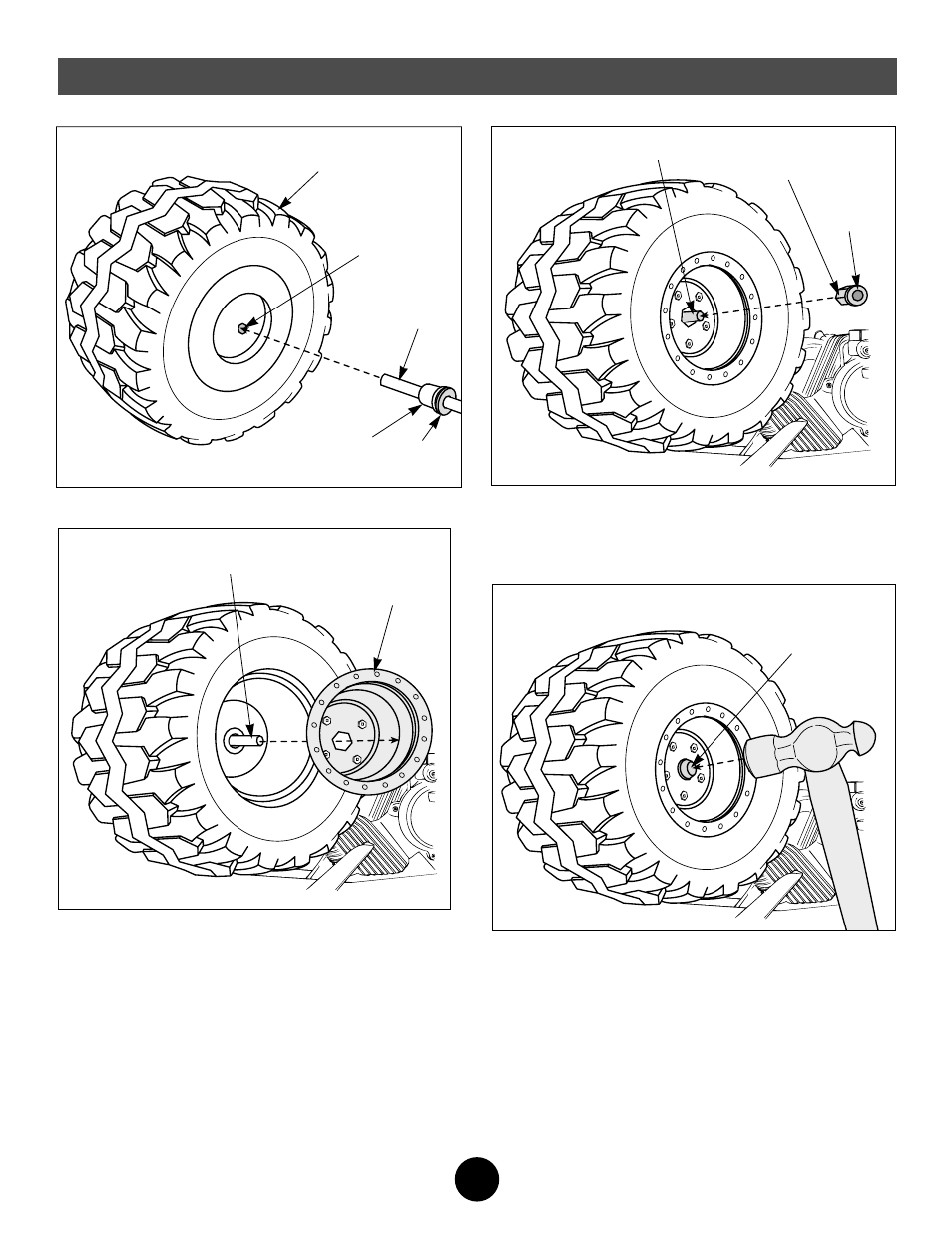

• Slide a wheel, small round hole first, onto the front axle.
• Fit a hubcap on the front axle and slide it into the center
of the front wheel.
• Slide a hex bushing onto the front axle. The ring side of
the hex bushing should face out.
• Press firmly to fit all but the ring on the end of the hex
bushing into the front wheel.
Front Axle
Hex Bushing
Ring
Side
Front
Hubcap
Front Axle
9 11
10
• Fit a cap nut on the end of the front axle.
• Tap the cap nut with a hammer to secure it on the end of
the front axle.
• Pull on the wheel to make sure the cap nut is securely
fastened.
• Repeat this procedure to assemble the other front wheel
to the other front axle.
• Set the vehicle body aside.
Cap Nut
12
12
Assembly
