1. INSTALLATION
1-18
Note 1: Use cable type DPYC-1.5 (or equivalent) for the power cable.
Conductor
S = 1.5 mm
φ
= 1.56 mm
2
DPYC-1.5
Armor
Sheath
φ
= 11.7 mm

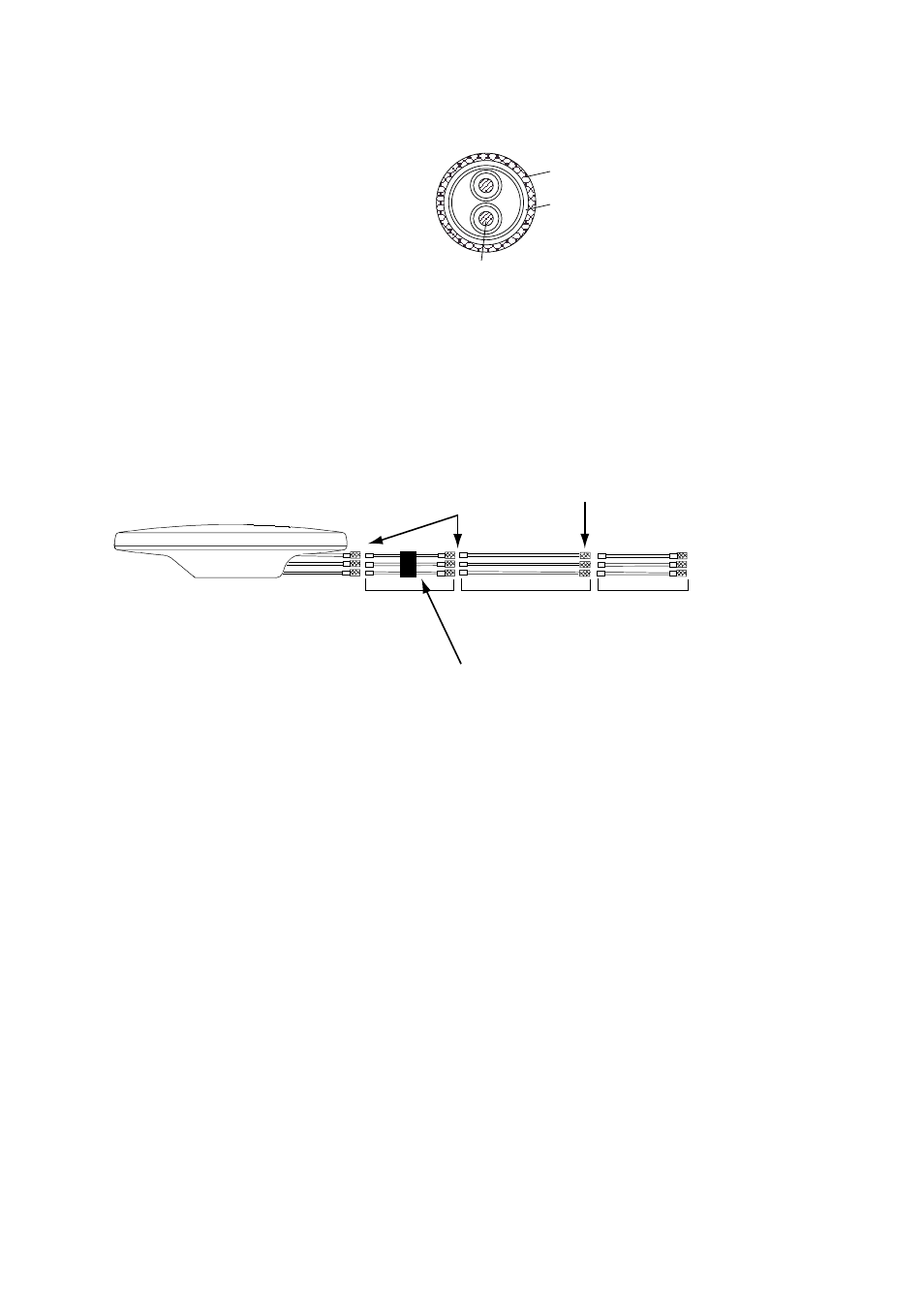

Sectional view of coaxial cable DPYC-1.5
Note 2:
The optional antenna cable set (CP20-01700 or CP20-01710) allows
you to extend antenna cable length to 30 m (50 m). See next page for
how to attach the connector.
1 m 1 m 30 or 50 m
Attach connector
N-P-8DFB in field.
Wrap each
junction with
tape.
Bind the coaxial cables with vinyl tape.
(OR Open-type
Antenna)
To processor
unit
How to install the optional antenna cable set
