1. INSTALLATION
1-6

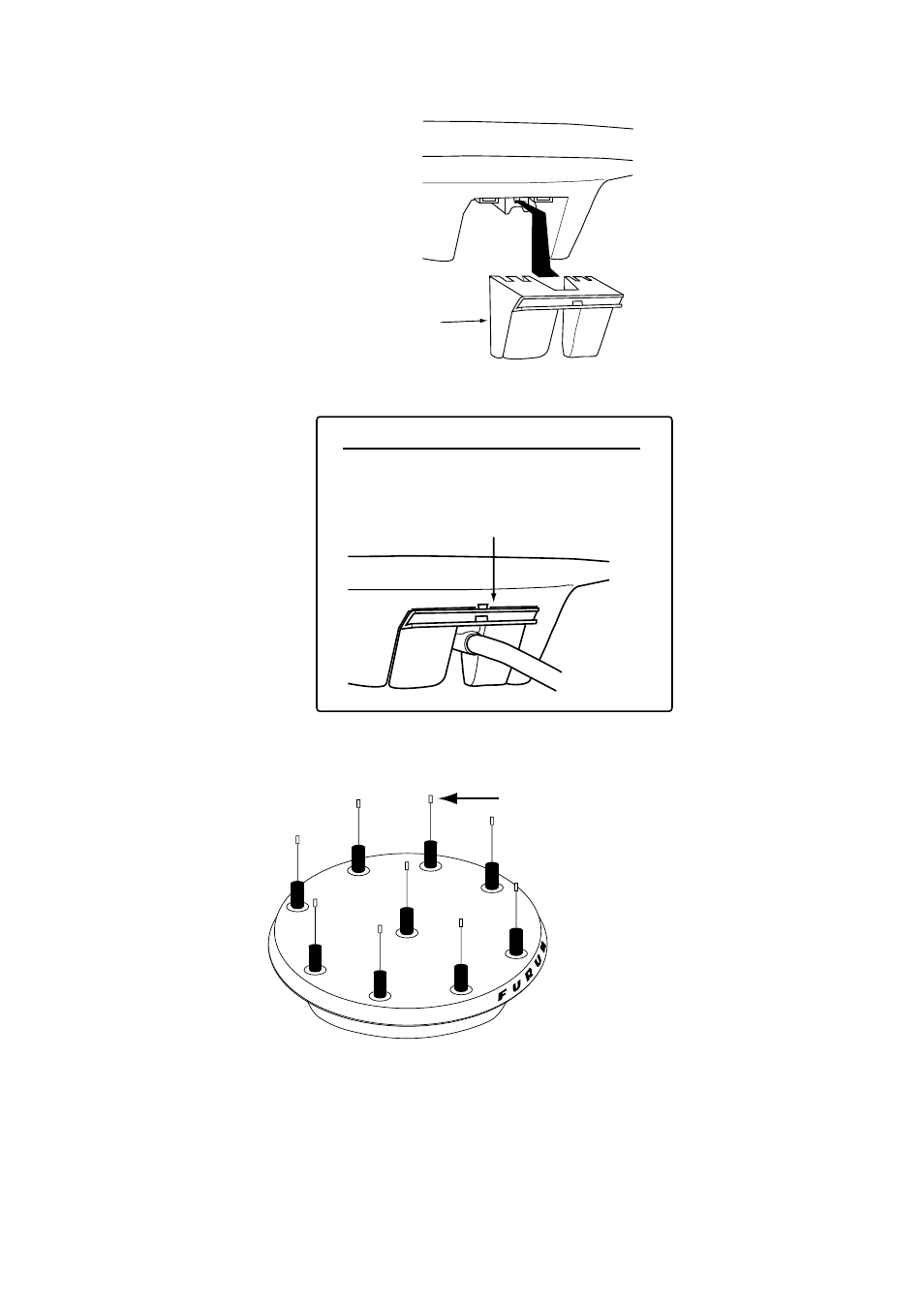

8. Set the “cable cover” to the antenna base as shown in the figure below.
Cable Cover
How to insert the cable cover
Insert slotted-head
screwdriver here to
remove cable cover.
HOW TO REMOVE CABLE COVER
9. If necessary, attach nine “bird-repellent fixtures” (supplied) to the antenna
cover as shown below. Use the paper pattern to position the fixtures.
F
U
R
U
N
Bird-repellent fixture
Antenna unit
10. Follow paragraph 1.6 to set up the equipment. If the status display shows
“OK” the installation Is suitable. If OK is not displayed, relocate the antenna.
