Page 19
1. INSTALLATION
1-9

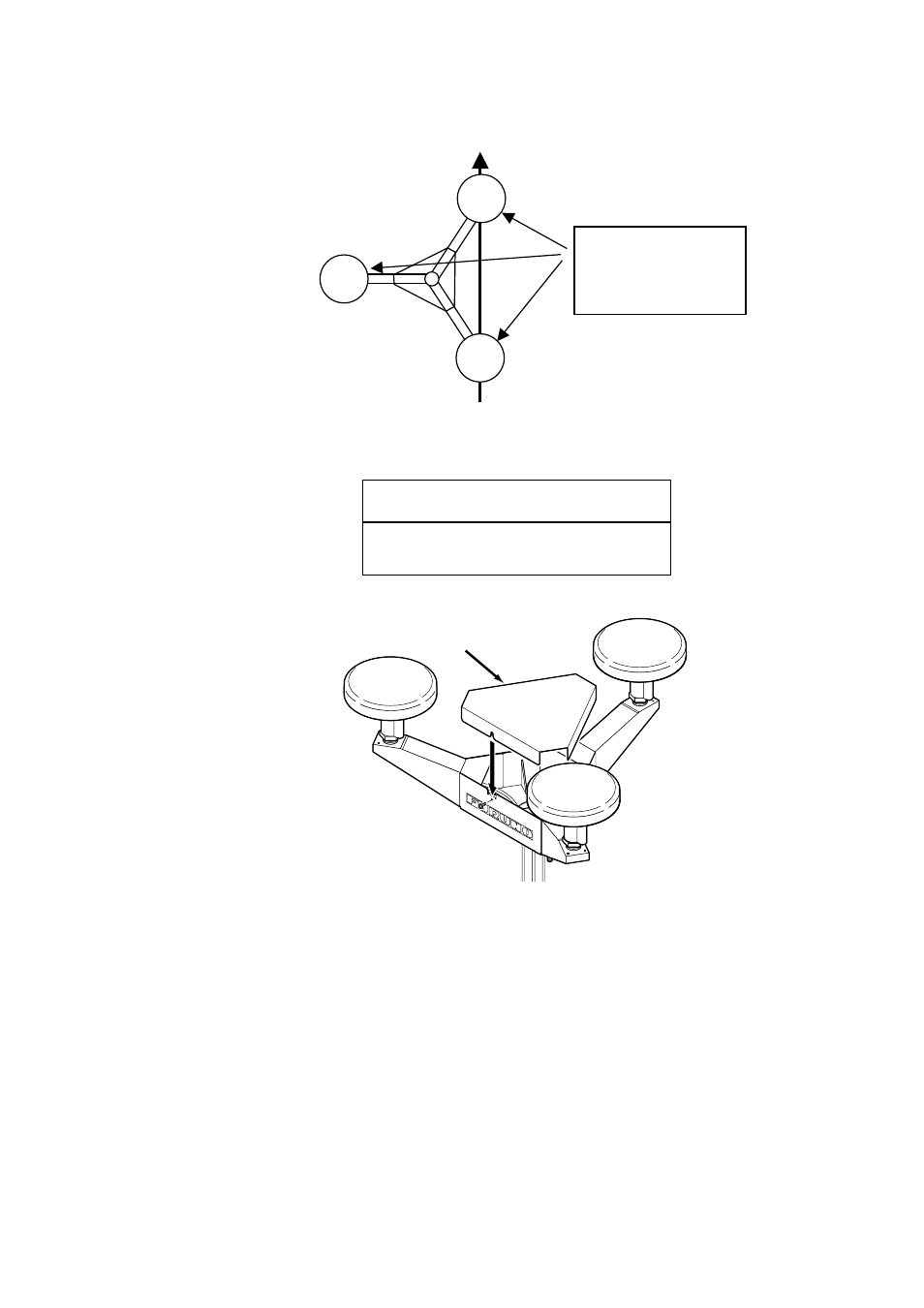

7. Orient the antenna unit as shown in the illustration below.
PORT
Antenna
Element
1
Antenna
Element
2
Antenna
Element
3
A number is inscribed
on each antenna arm.
This is the antenna
element number.
BOW
The bow mark is between
antenna element [1] and [2].
Face the bow mark towards
the bow
Orienting the antenna unit (top view)
NOTICE
The antenna unit should be positioned
within
±
2.5
°
of the bow.
8. Fasten the Antenna Cover with three screws.
1
3
Antenna Cover
2
Antenna unit SC-603
9. Follow the instructions in the paragraph 2.6. If the satellite tracking status
display shows “OK,” the installation site is suitable. Weld the antenna unit to
the antenna mast as shown in the next paragraph.
