Warning Lights and Gauges
65
[LG06800(R )10/94]
7-1/2 pica art:0020051-F

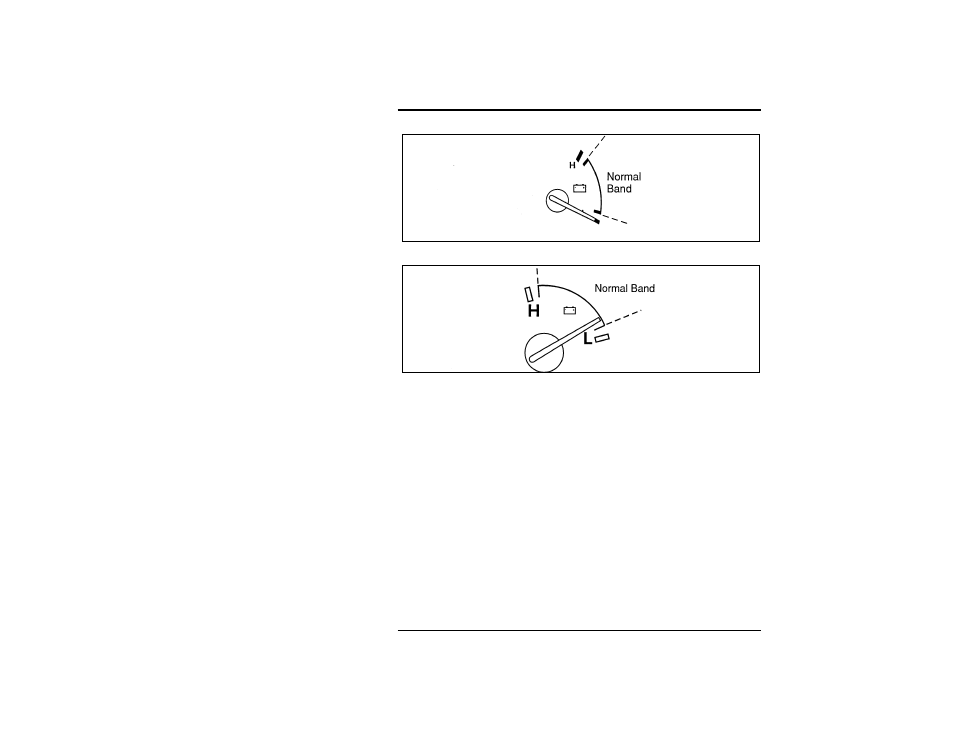

Battery voltage gauge — mechanical cluster
[LG06850(ALL)07/95]
7-1/2 pica art:0020539-H
Battery voltage gauge — mechanical cluster with tachometer
% * [LG07500(ALL)05/94] Engine Oil Pressure Gauge
* [LG07601(ALL)06/93] This gauge indicates the engine’s oil pressure, not the oil level.
However, if your engine’s oil level is low, it could affect the oil
pressure. With the engine running, the pointer should move into
the NORMAL band. If the pointer drops below the NORMAL
band while the engine is running, you have lost oil pressure
and continued operation will cause severe engine damage.
* [LG07701(ALL)03/95] If you lose engine oil pressure:
* [LG07801(ALL)03/95] 1. Pull off the road as soon as safely possible.
* [LG07901(ALL)03/95] 2. Turn off the engine. If you do not stop the engine as soon as
safely possible, severe engine damage could result.
