FORD Ranger User Manual
Page 313
314
[SV42000(R )03/95]
17-1/2 pica
art:0090141-C

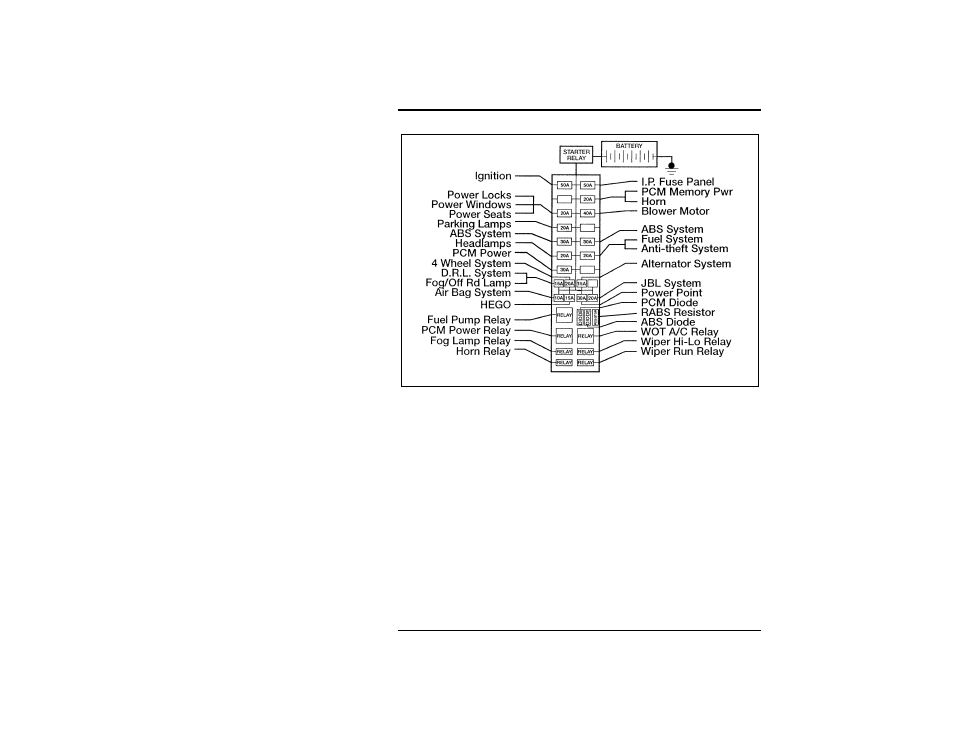

Power distribution box
%
*
[SV42200(ALL)06/95]
Checking and Replacing Fuses
*
[SV42300(ALL)02/95]
If you need to check a fuse, follow these steps:
[SV43000(ALL)01/95]
1.
Find the fuse panel, which is located in the left end of the
instrument panel. The power distribution box (described
earlier in this section) is found in the engine compartment,
mounted on a bracket attached to the left fender apron.
[SV43100(ALL)10/94]
To access the fuse panel, remove the fuse panel cover by
inserting your finger in the divot and pulling on the cover.
The underside of the cover contains four spare fuses. A fuse
pulling tool is located in the lower right corner of the fuse
panel in case you need to replace a blown fuse.
*
[SV43200(ALL)03/94]
The spare fuses for your vehicle are color coded as follows:
10 amp — red, 15 amp — light blue, 20 amp — natural, 30
amp — light green.
File:15unsvr.ex
Update:Wed May 1 13:56:18 1996
