Assembly
28

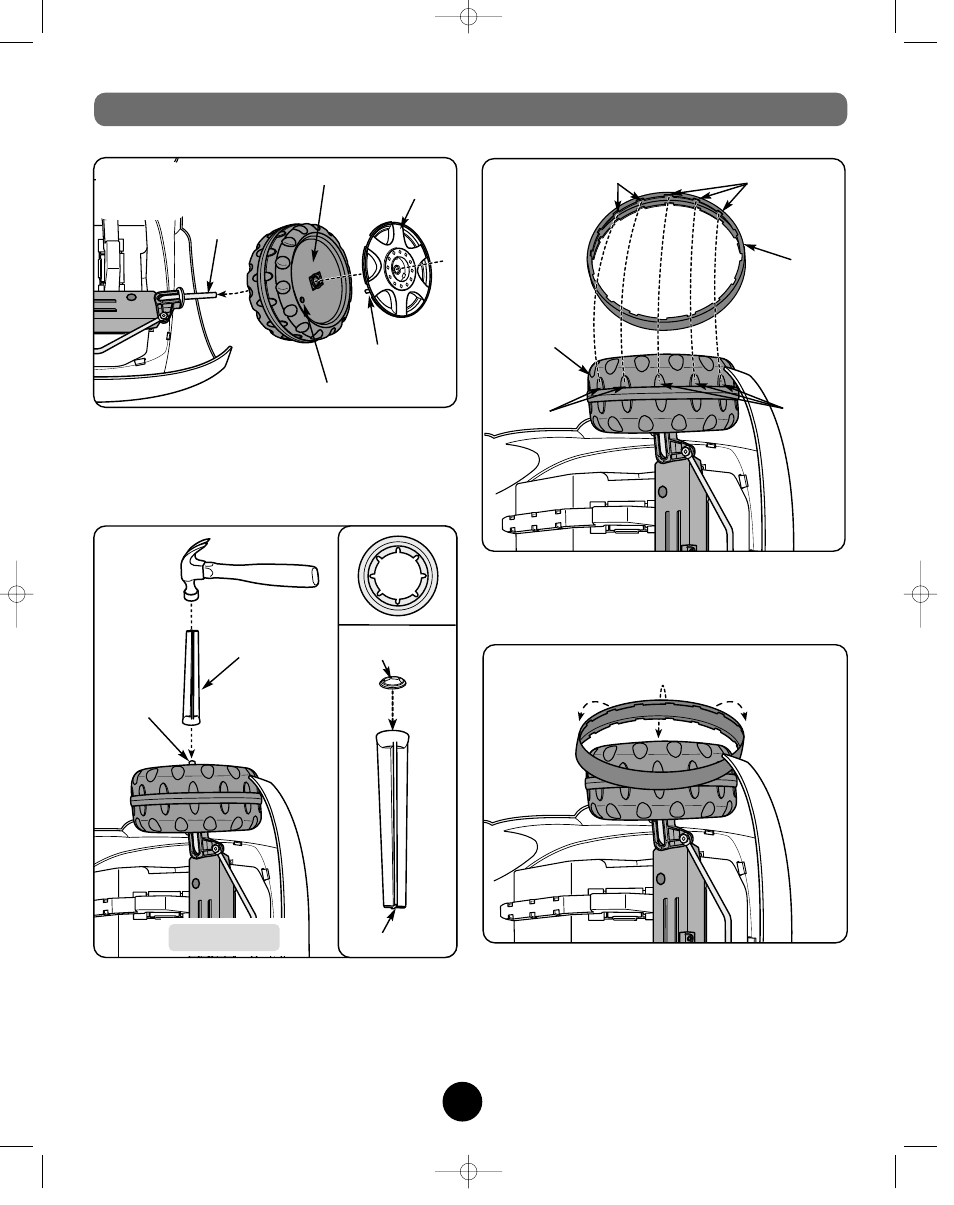

Bottom View
• Fit the wheel (with a round bushing and hex bushing
inserted) onto the end of the front axle. Make sure the
outside of the wheel (smooth side) faces out.
• Fit a hubcap to the outside of the wheel. Make sure the
peg on the hubcap fits into the small hole in the outside
of the wheel.
27 Outside of Wheel
Hubcap
Front
Axle
Peg
Small Hole
Front
Axle
Assembly Tool
with Lock
Washer Inside
• Turn the vehicle body on its side.
• Fit the lock washer (rounded side up) into the assembly tool.
Make sure it fits completely inside the assembly tool.
• Fit the assembly tool (with lock washer in it) onto the end of
the front axle.
• Tap the assembly tool with a hammer to secure the lock
washer on the end of the front axle.
• Pull the wheel up to be sure it is secure on the front axle. 18
• Slide the other side of the front wheel traction band around
the front wheel.
30
• Fit the notches on the inside of a front wheel traction band
to the ridges on a front wheel, as shown.
Hint: Soak the traction band in hot water for about two
minutes to soften it.
29
Front Wheel
Traction Band
Wheel
Ridges Ridges
Notches
Notches
Assembly Tool
Lock Washer
Rounded Side UP
