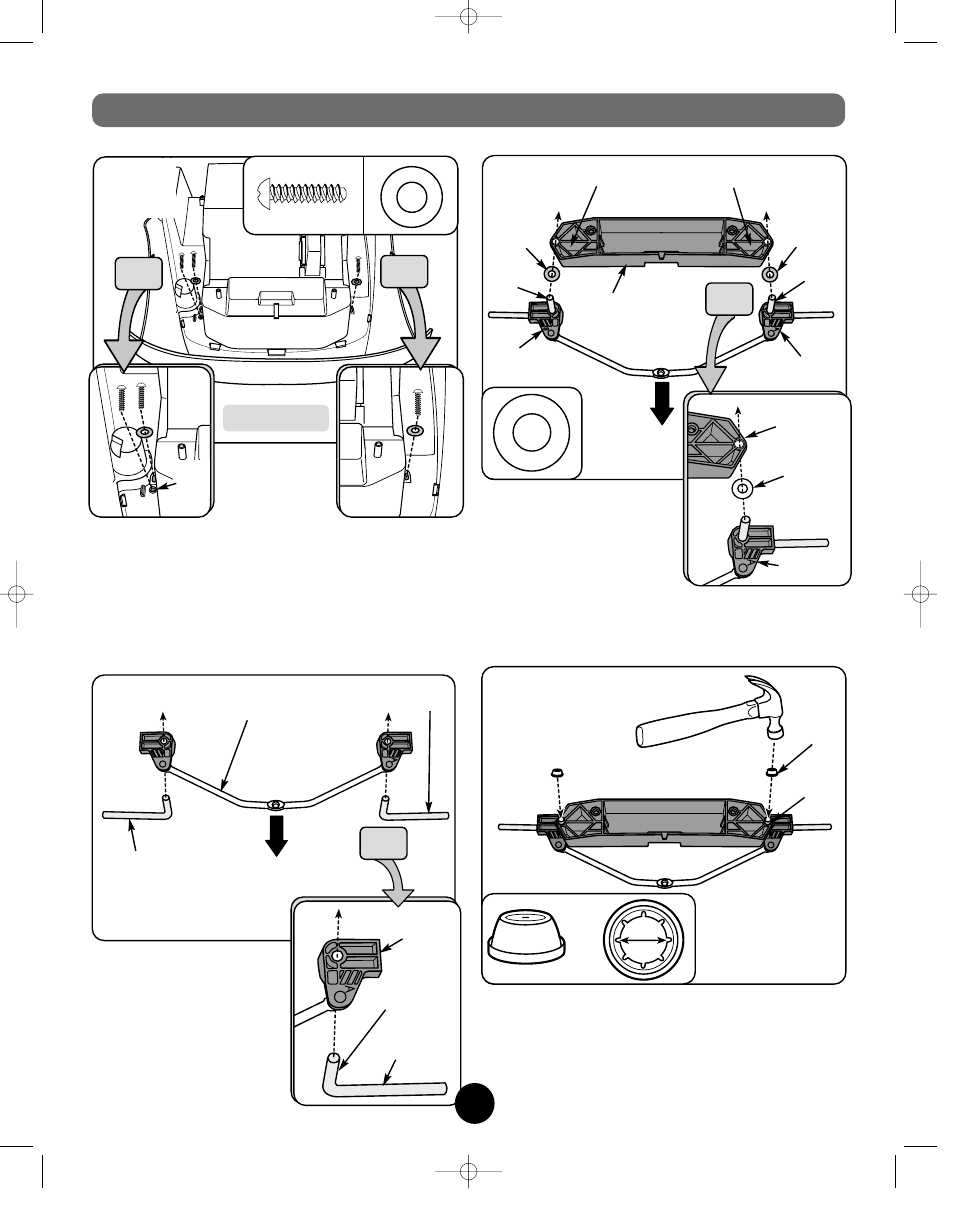

• Fit a .437 white cap nut onto the end of a front axle.
• Tap the cap nut with a hammer to secure it to the end of the

front axle.

• Repeat this procedure to fasten another .437 white cap nut

to the other front axle.

Assembly

• Slide a large washer onto the

short end of each front axle.

• Position the steering linkage

cover over the steering linkage.
Make sure the A and B
markings in the steering linkage
cover match the A and B
markings in the steering linkage. Fit the steering linkage
cover onto the front axles.

Note: The steering linkage curve should still face you.

Front
Axle

Steering
Linkage
Cover

Large
Washer

A Marking

Large
Washer

See

Inset

A Marking

B Marking

Steering
Linkage
Cover

Front
Axle

Cap
Nut

• Turn the steering linkage so

that the inside (grooved side)
is facing up and the curve is
toward you.

• Position each front axle so

that the short end is facing up.

• Insert the short end of the

front axles up through the
ends of the steering linkage,
as shown.

Short End of
Front Axle

Front
Axle

Steering Linkage

Steering
Linkage

Long End of
Front Axle

Steering Linkage

Curve TOWARD You

Steering

Linkage

Curve

TOWARD

You

See

Inset

• Turn the vehicle body over so that the bottom faces you.
• Insert one #8 x

" screw through the front hole in the

vehicle body and into the windshield, as shown.

• Fit a small washer to two #8 x

" screws. Insert these

screws with washers through the other holes in the vehicle
body and into the windshield, as shown.

• Tighten the screws with a Phillips screwdriver.

Do not over-tighten.

Bottom View

See

Inset

See

Inset

Front

Hole
