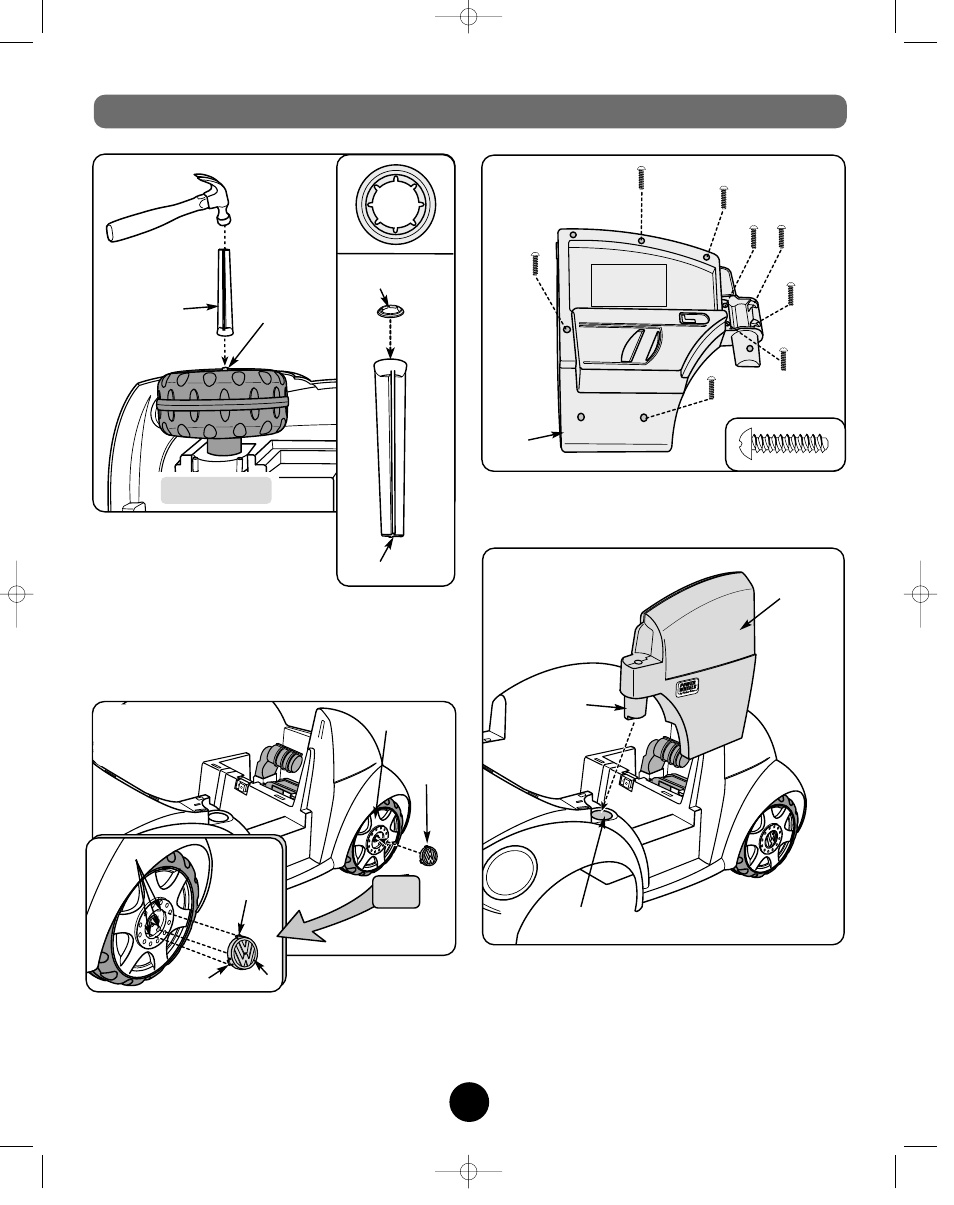

Assembly
• Turn the vehicle body
upright (or keep on its side).
• Insert one of the tabs on the hubcap cover into a slot in
the hubcap.
• Then, push with your fingernail (or carefully with a
slotted screwdriver), the other two hubcap cover tabs into
the slots in the hubcap.
• Repeat this procedure to assemble another hubcap cover
to the other hubcap.
11
14
Hubcap
Hubcap
Cover
Tab
Tab Tab
Slots
See
Inset
TM
• Fit the door peg into the hole in the top of the vehicle body.
13
Door
Peg
Hole
12
• Insert eight #8 x 3 /
4
" screws into the door, as shown.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
Door
10
• Turn the vehicle body on its side.
• Fit a lock washer (rounded side up)
into the assembly tool. Make sure it fits
completely inside the assembly tool.
• Fit the assembly tool (with lock washer in it) onto the end of
the rear axle.
• Tap the assembly tool with a hammer to secure the lock
washer on the end of the rear axle.
• Pull on the lock washer to be sure it is secure on the
rear axle.
Bottom View
Rear
Axle
Assembly Tool
with Lock
Washer Inside
Assembly Tool
Lock Washer
Rounded Side UP
